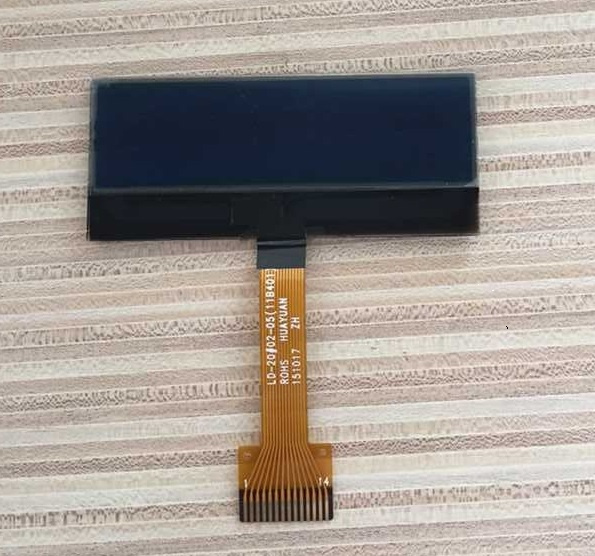

2X16 LCD Cog 2X16 LCD Display
| Price: |
US $ 2-4/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
GH1602-2301 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gh1602-2301 |
| Gh1602-2201: |
Cog |
| Display Type: |
Stn,Negative or Positive ,Transmissive |
| Outline Dimension: |
65.0 X 27.7 X 2.85mm |
| Controller: |
Nt7605 |
| Backlight: |
LED |
| Viewing Area: |
61 .0 X 1 5.7mm |
| Data Bus: |
8 Bit |
| DOT Size: |
0.55 X 0.6mm |
| Screen Size: |
2.3"(Diagonal) |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Infrared |
| Type: |
Character |
| Response Time: |
10ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COG |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description
- Place of Origin: China (Mainland)
- Brand Name: Huayuan
- Model Number: GH1602-2301
- Type: Character
- Construction: COG
- Display Type: STN
- Dot Matrix: 16x2
- Viewing Area: 61 .0 x 1 5.7mm
- Outline Dimension: 65.0 x 27.7 x 2.85mm Max
- Controller: Nt7605
- Data bus: 8 bit
- Temperature range Operation: -20 oC ---- +70oC
- Dot size: 0.55 x 0.6mm
- Screen size: 2.3"(Diagonal)
| Model: | GH1602-2301 |
| Construction | COG |
| Display Type | STN |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20°C~70°C |
| Storage Temperature (degree Celsius) | -30°C~80°C |
| Viewing Direction | 6:00 |
| Dot Matrix | 16x2 |
| Viewing Area | 61 .0 x 1 5.7mm |
| Active Area | 56.2 x 11 .04mm |
| Outline Dimension | 65.0 x 27.7 x 2.85mm Max |
| Controller | NT7605 |
| Backlight | LED,White |
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
