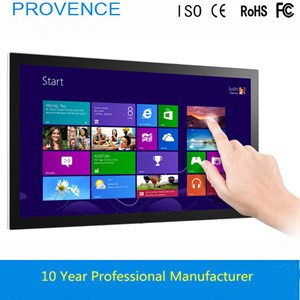

| Prod Model: |
PM260NXT-R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Safety And Ergonomics: |
CE, FCC, RoHS |
| Type: |
TFT |
| Application: |
Surveillance, Kiosk, Computer, Indoor, Advertising |
| Aspect Ratio: |
16:9 |
| Feature: |
Touch Display |
| Screen Size: |
26" |
| Interface Type: |
VGA, DVI, HDMI |
Product Description
1. Size: 15"-82", 1.3-3 years warranty.
2. Touch screen interactive/information kiosk, All in one PC available
3. CKD/SKD/open frame monitor available
4. Certificate: CE, FCC, RoHS.
5. OEM, ODM provider
6. Industrial/commercial application.
Features:
A. Metal shell - strong antimagnetic and anti-interference performance.
B. High Shock resistance level.
C. High reliability, good stability, nice thermostability, high resolution and operating 24/7.
D. Very eco-friendly low power consumption.
E. VGA, DVI, HDMI, YPbPr(NBC) etc. Interfaces, TV & Speaker functions will be offered on your request.
F. Long lifetime: > 60, 000 hours.
G. Type: Resistance single touch.
| PRODUCT DESCRIPTION |
| Panle |
| Diagonal Size | 26" |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.1405(H)×0.4215(V) |
| Response Time | <8ms |
| Resolution | 1366×768 |
| Contrast Ratio | 800:1 |
| Brightness (cd/m2) | 500d/m2 |
| Active display area | 575.6mm(W)×323.5mm(H) |
| Display Color (Max) | 16.7M |
| Viewing Angle(U/D,L/R) | H:170 V:160 |
| Video input |
|
| VGA | X1 |
| DVI | X1 |
| HDMI | X1 |
| Component YPbPr(BNC) | X1 |
| S-video | X1 |
| Composite video( BNC) | X2 |
| RCA L/R (For PC) | X1 |
| RCA L/R (For video) | X1 |
| PC Audio in(Stereo Mini Jack) | X1 |
| RJ45(use for RS232 IN) | X1 |
| Output Connection |
|
| Composite video(BNC) | X1 |
| RJ45(use for RS232 OUT) | X1 |
| Touch features |
| Type | Resistance single touch |
| Resolution | 4096X4096 |
| Sense objects | Fingers, pens and other objects |
| Touch intensity | ≤45g~110g |
| Response Time(Single Touch) | ≤10ms |
| Transmittance | ≥82% |
| Linearity error | ≤1.5% |
| Material | I TO |
| Life time | ≥1,000,000 touch |
| POWER |
| Power Supply | AC Input 100~240V/50-60Hz |
| Power Consumpiton(MAX) | 100W(type); 140W(Max) |
| Stand-by(MAX) | ≤2W |
| Operation/Sotrage |
| Operating Temperature | 10 0 C~40 0 C |
| Operating Humidity | 10%~80% |
| Storage Temperature | -20 0 C~60 0 C |
| Operating Humidity | 0%~90% |
| Safety and Eragonomics |
| Regulations | CE,FCC,ROSH |
| Technical Specification |
| OSD language | SC,TC,English,Spanish,French,German,Italian,Japanese,Korean,Russian |
| Horizontal Frequency | 20 ~ 82KHz(analog and digital) |
| Vertical Frequency | 55~75Hz |
| Optimum Resolution | 1366x768 at 60HZ |
| Native Resolution | 1366x768 at 60HZ |
| Supported Resolutions | 1360x768; 1280x1024;1280x768;1024x768;832x624; 800x600;720x400; 600x480; |
| Video Modes(no tuner) | 480i;480p;576i;576p;720p(50 and 60HZ);1080i(50 and 60HZ);1080i(50 and 60HZ);1080p(50 and 60HZ); |
| Remote Control | Remote Control IR) |
| Colour Versions | Black |
| Mechanical Spec |
| VESA Mount | 320x150mm/4 holes |
| Weight(Set/package) | 14kg/17kg |
| Dimension(W/O stand) | 630x377x104mm |
| Packing Dimension | 790.0mm×565.0mm×235.0mm |
| Package Contents |
| Item | Quantity |
| Wall mount or Stand set | x1 |
| Quick Setup Guide | x1 |
| Warranty Card | x1 |
| Application CD | x1 |
| Power Cord | x1 |
| D-Sub(1.5m) | x1 |
| Remote control | x1 |
| Batteries | x1 |
| Warranty |
| 1 year for backlight, 3years for other |
| Terms And Conditions |
| Payment Term | T/T or Sight L/C |
| Shipment Term | FOB, CIF, CNF |
| Port of Loading: | Shenzhen |
| Brand | Follow Client's Command (Ours, OEM, ODM) |
| MOQ | 20'ft |
| Valid Date | 7 days |
| Delivery Time | Within 25 Days After payment |
| About Samples |
| Extra 15% Handling Fee Is Charged For Sample. It will Be Returned When An Purchase Order Is Placed |
| Optional Accessories |
| List | Price |
| Speaker(8Ω5W) |
|
| BNC to RCA Adaptor Jack |
|
| BNC to BNC cable(1.5m) |
|
| HDMI cable(1.5m) |
|
| DVI cable(1.5m) |
|
| VGA to BNC cable(1.5m) |
|
