| Prod Model: |
YB240128B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
5vand3.3V |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
LCM |
| Response Time: |
1ms |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
| Viewing Angle: |
6:00 |
Product Description

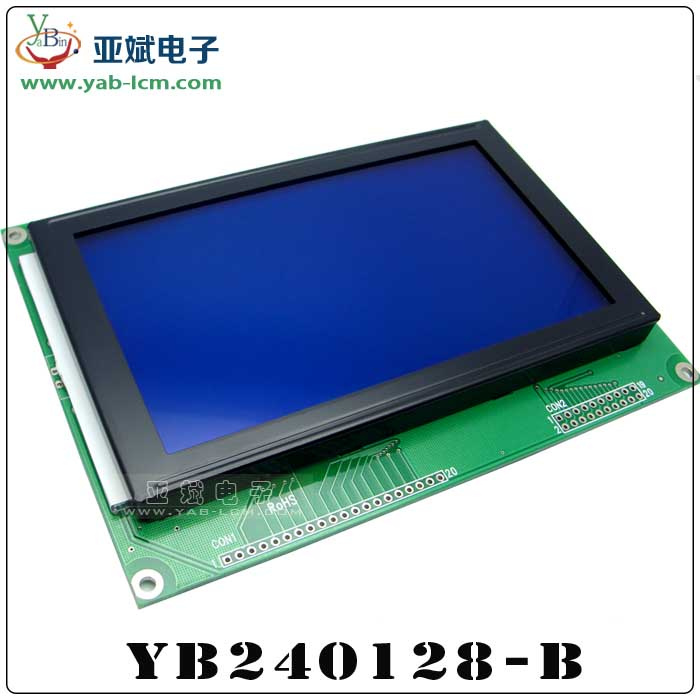

| 240128B |
|
|
|
| Gross Weight (kg) |
|
| Manufacturer | YaBin |
| Series Number | YB240128B |
| Display Format | 240*128Dots |
| Outline Dimension | 144.0*104.0*14.0mm |
| Visual Area | 114.0*64.0mm |
| Active Area | 107.95*57.55mm |
| Diagonal Size | 5.15 inch |
| Dot (Pixel) Size | 0.4*0.4mm |
| Dot (Pixel) Pitch | 0.45*0.45mm |
| IC Package | COB |
| IC or Equivalent | T6963/RA6963/UCi6963or EQV |
| Interface | 8080 8-bit Parallel |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ) | 3.3V/5V |
| Backlight Current (Typ) | 120mA |
| Operating Temp | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| If accept customized | Yes |
| RoHS Compliance | Yes |
| 240128B |
|
|
|
| The interface definition |
| ITEM | SYMBOL | LEVEL | FUNCTION |
| 1 | FG | - | Frame Ground |
| 2 | VSS | 0V | Power Ground |
| 3 | VDD | +5V | Power supply for logic |
| 4 | VO | - | Contrast adjust |
| 5 | /WR | L | Write signal |
| 6 | /RD | L | Read signal |
| 7 | /CE | L | Chip enable signal |
| 8 | C/D | H/L | H:command L:data |
| 9 | /REST | L | Read signal |
| 10-17 | DB0-DB7 | H/L | Data Bus |
| 18 | FS | H/L | Font selection L:8×8 H:6×8 |
| 19 | LEDA | +5V | Power Supply For LED Backlight |
| 20 | LEDK | 0V |
