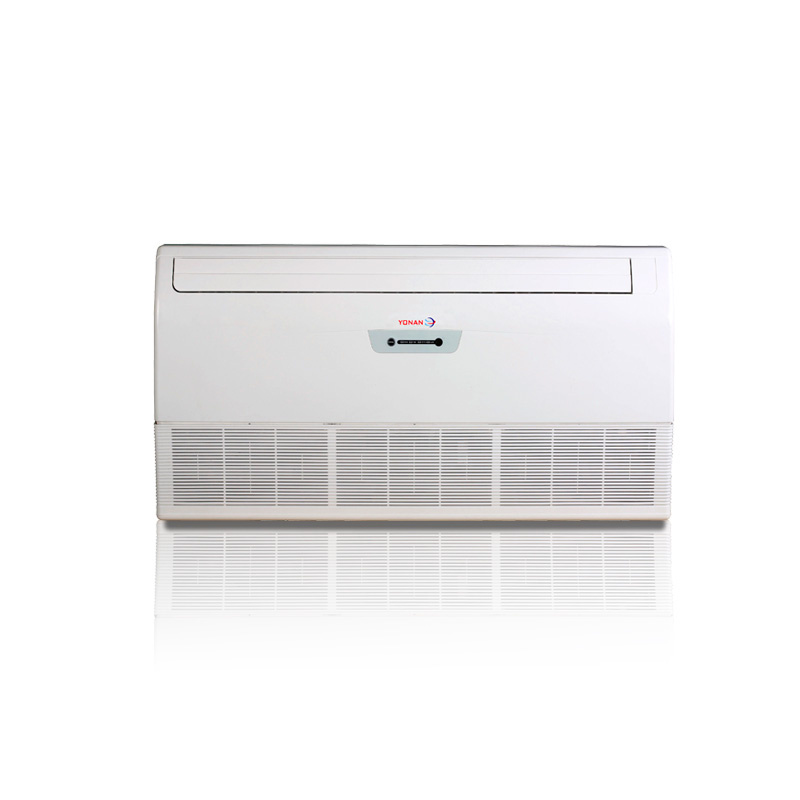

24000BTU Floor and Ceiling Type Air Conditioner
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Set |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Eer: |
2.81 |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
230 VAC |
| Mounting: |
Ceiling Mount |
| Certification: |
CCC |
| Condition: |
New |
Product Description
24000BTU Floor and Ceiling Type Air Conditioner
Feature
1.R22 refrigerant
2.220~230, 60Hz
3.24000~600000BTU, Cooling only
4. Independent dehumidification
5. Auti-cold air function
6. Auto restart function
7. Quiet desing
Specification
| Power supply | V-ph-Hz | 220~230-1-60 |
| Cooling | Capacity | Btu/h | 24000 |
| Input | W | 2500 |
| EER | W/W | 2.81 |
| Heating | Capacity | Btu/h | / |
| Input | W | / |
| COP | W/W | / |
| Indoor coil | Number of rows |
| 3 |
| Tube pitch(a)x row pitch(b) | mm | 25.4×22 |
| Fin spacing | mm | 1.5 |
| Fin type |
| Hydrophilic aluminium |
| Tube outside dia.and type | mm | Φ9.52,Inner grooved tube |
| Coil length x height x width | mm | 804×254×66 |
| Number of circuits |
| 3 |
| Indoor air flow(Hi/Med/Lo) | m 3 /h | 1140/850/710 |
| Indoor noise level (sound pressure)(Hi/Med/Lo) | dB(A) | 53/48/42 |
| Throttle type |
| Throttle valve |
| Indoor unit | Dimension (WxDxH) | mm | 990×660×203 |
| Packing (WxDxH) | mm | 1090x745x297 |
| Net/Gross weight | kg | 25/31 |
| Design pressure | MPa | 2.6/1.0 |
| Drainage water pipe diameter | mm | ODΦ25 |
| Refrigerant piping | Liquid side/Gas side | mm | Φ9.52Φ15.9(3/8"/5/8") |
