23.6" IR Touch Wall Advertising LCD Android Display
| Price: |
US $ 360-500/Piece |
| Trade Terms: |
FOB,EXW,DAP |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
D236D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
23.6inch |
| Resolution: |
1920*1080 |
| Viewing Angle: |
178/178 |
| Color: |
16.7m |
| Type: |
Network Version AD Player |
| Application: |
Indoor AD Player |
| Screen Size: |
20-30 Inches |
| Touch Screen Type: |
Infrared |
| Remote Control: |
Without Remote Control |
| Interface Type: |
USB |
| Screen Technology: |
LED |
| OS: |
Android |
| Installation: |
Wall-Mounted |
| Customized: |
Customized |
Product Description

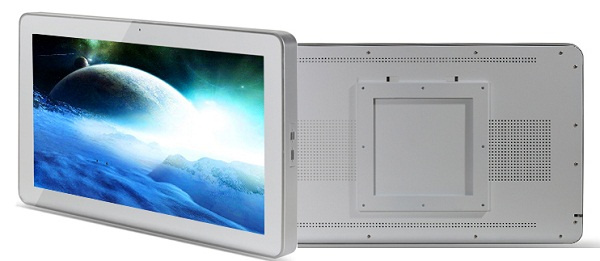

23.6" IR Touch Wall Advertising LCD Android Display
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: DEDI
- Model Number: D236D
- Type: TFT
- Application: Indoor
- Panel Size: 23.6 inch
- Max Resolution: 1920x1080
- Viewing Angle: 89/89/89/89
- Pixel Pitch: 0.0905x0.2715mm
- Color: 16.7M
- Contrast Ratio: 3000:1
- Brightness: 300cd/m2
- Response Time: 5ms
- OS: Android 4.2 or above
- Touch Type: IR, Res, Cap
- Touch Point: Multi-touch
- CPU: Quad-Core
- RAM: 2GB
- ROM: 8GB
- HDMI output: x1
- USB: x2
- SD/TF: x1
- Control Sofware: Optional
- Input Voltage: AC 110V- 240V
Packaging & Delivery
| Packaging Details: | Packed in soft pearl wool wrap, then into carton, wooden case for large size. |
|---|
| Delivery Detail: | 3-8 working days after confirming the exact order. |
|---|
Specifications
-Touch Screen is available
-Network is available
-Metal,safe and strong frame
-Support TF/SD card,USB
Product specifications |
Panel Details | Panel Brand | Samsung/LG/AUTO/ LCD/LED/Chimee |
Panel Size | 23.6'' (7-65 Inch Optional) |
IR Touch
Screen
Details | Touch Max Resolution | 4096×4096 |
Transparency | > 90%, Up to 100% |
Response Speed | <10ms |
Anti-Sunlight/ strong light interference |
Touch Point | 2-48 optional |
Minimum identification point: | 3mm x 3mm |
General
Information | Product Color | White,black .color is customized. |
CPU | Quad-Core RK3188 Cortex-A9 1.6GHz |
RAM | 2GB |
GPU | Quad-Core version is Mail-400@ 533MHz |
ROM ( internal memory ) | 8GB |
OS | Android 4.2 or above |
Decoding
Formats | Video Format | MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,MOV,WMV,RM, RMVB,etc. |
FHD 1080P Video | YES |
Picture Format | JPG, BMP,PNG,etc. |
Text | TXT |
Audio Format | MP3,WAV |
Interfaces | VGA Output | 1 |
HDMI Output | 1 |
SD/TF card slot | 1 |
USB | YES ( two ) |
RJ45 | 1 |
Additional
Functions | Split Screens,Time and Date,Cloud Streaming,Wifi,LAN ,Update remotely, Weather Function,Live Broadcast,Controlling Software,etc. |
|
Accessory | Power supply cable, user manual, keys,adapter |
Temperature Details:Touch screen operating temperature:-41°C ~70°C, Storage Temperature: -50°C ~85°C. The machine operating temperature:-4~65°C, Storage Temperature:-7~65°C. |
Features |
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc. |
2.Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work. |
3.This machine is of android OS design, which could be connected to internet,and supports remote office cotrol . |
4.Remotely report system utilization and memory usage. |
5.Content plays automatically upon set up of schedule. |
6.Control, monitor and design screen layouts remotely by the remote control office. |
7.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional. |
8.Brands of LCD screen for Samsung, LG, Chime, HSD, AU, Toshiba etc, A Class 335 standard, full new and factory original packing screen. |
9.Mounting Way: wall mount, table stand, ground standing method is optional. |
