Prod Model: |
D220D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
22inch |
Brightness: |
500nit |
Response Time: |
5ms |
Resolution: |
1920*1080 |
Contrast Ratio: |
800:1 |
Application: |
Indoor AD Player |
Screen Size: |
20-30 Inches |
Installation: |
Vertical |
Type: |
Network Version AD Player |
Touch Screen Type: |
Resistive |
Screen Technology: |
LED |
Remote Control: |
With Remote Control |
Customized: |
Customized |
Interface Type: |
HDMI, VGA, DVI |
OS: |
Window X8, Android |
Product Description
Frame Features:
1). Adopts high transparent tempered glass (2mm thickness) as protection layer to prevent LCD panel being broken and distorted.
2). Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; also we accept customizing color according to color code.
3). Adopts INNOLUX as LCD Panel, Full New A grade standard.
4). Locking system for anti-thieves, prevented the player and storage devices from being stolen.
l Advantages:
1). self-service Kiosk helps reduce the queue time to offer better service for the customer.
2). With the help of Kiosk, customers can check what the promotions they can get.
3). Also, their private information can be protected well by Kiosk. For some information like in Medicare, customers probably don't want to discuss their requirements with others . They do prefer to get service from Kiosk.
l Applicable Fields:
1). Business Organizations:supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2). Financial Organizations:Banks, negotiable securities, funds, insurance companies, pawnshops;
3). Non-profit Organizations:Telecommunications, post offices, hospital, schools;
4). Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
5). Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

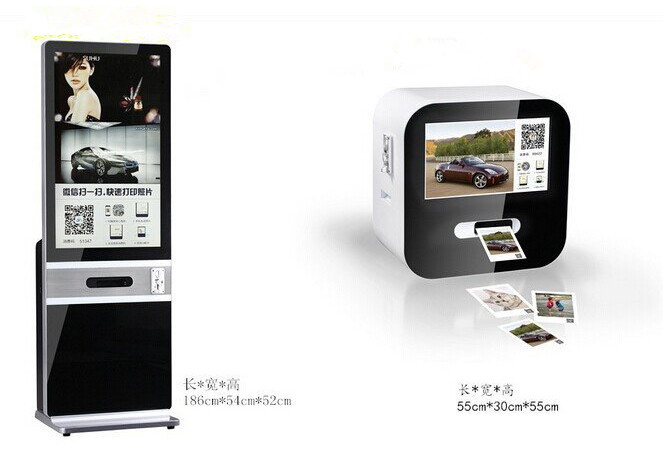

Outdoor Information Kiosk |
Touch Screen |
Specification: Light Transmittance:100% Resolution:4096 X 4096Scan Speed:50 scans/s Touch body: any body at least 5mm(Including finger & pen) Response Speed: less than16ms Durability: Over 60.000.000touches in one location. Vanda proof: a 1.04kg steel ball falling from 1m height to screen without broken. All control was completed on the touch surface Handwritten text, drawings, filling come true easy Working Temperature:-40degree to 70degree Easy installation: USB or RS232 ports connect with PC to start work. High stability, Longtime used will not affect the accuracy of touch performance. Completely closed design and set up completely without routine maintenance.
Electrical Part: Working voltage: DC5V ± 5% Power supply: external power supply Power: Less than 2W Electromagnetic compatibility: CE, ROHS passed Noise: no The applicable operating system: Windows7,Windows2000, XP, 2003, Linux Communication: USB or RS232
Environmental Part: Operating Temperature: -40 degrees to +70 degrees Storage temperature: -40 degrees to +85 degrees Operating Humidity: 20% to 85% (no condensation) Storage Humidity: 20% to 95% (no condensation) Light Immunity: resistance to interference of light (100,000 lux) Drift: No drift, does not vary with changes in the environment. Lifespan:7 years |
Display Device | SAMSUNG MONITOR View Area:22'' Pitch: 0.264mm Light: 1000nit Contrast: 800:1 View Angle: 160degree/160degree(T/B) Response Time: 5ms Maximum Resolution: 1920*1080 Vertical scanning frequency: 56-75HZ Color: 16.7M Horizontal scanning frequency: 30-83HZ 100% no dead pixels |
Cabinet Description | 1) Using integrated, modular overall structure design, it suit for ergonomic design 2) Elegant and dignified appearance, streamlined shape, modern and fashion 3) Surface treatment: Painting with imported car Metal paint. Various colors available. 4) Easy to operate and maintain, powerful functions, flexible configuration to your needs. The kiosk can be configurated to your needs by adding many optional devices, such as bar-code scanner, the Laser or thermal printer for Ticket .Insert or swipe card reader,64 bit or 1ubit Keyboard, fingerprints reader etc 5) Steady performance and low-cost maintenance, better quality compare to the like products; 6) Host body has independent exhaust fan 7) Get the power and then plug and play so no need to install and debug on the spot.
Inner electromechanical equipment AV: Power AMP. ,2*5W sound box, internal magnetic mode Heat elimination: built-in 12V fan with good effect. Network Interface:RJ45 eight core wire communicate interface. Reset switch: No need to disassemble the Cabinet, press the External reset switch conveniently and quickly. Power-Supply: Built-in outside lead of the power and socket Working environment: Temperature 0°C-45°C Humidity 30%-90% Working Voltage:AC220V±10 50HZ±1 |
PC | Original: Intel E5500 2.8Mhz CPU LGA775 Socket Main board: ASUS Original Kingston DDR3 2GB RAM, Original West digital HDD 320G SATA Intel GMA X4500HD graphics, Integrated Sound Card with amplifier and concealed speakers Remarks: Host configuration can be changed according to customer requirements! (Can be self-made) |
Fingerprint Reader | Preparation for Digital Personal Module UareU 4500 fingerprint reader (Does not include the reader) |
Package | Special design fixed foam, Carton box, Wood case |
