| Prod Model: |
PM220MX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, FCC, RoHS |
| Type: |
TFT |
| Aspect Ratio: |
4:3 |
| Application: |
Surveillance, Indoor, Advertising |
| Feature: |
Professional LCD Monitor |
| Screen Size: |
20" |
| Interface Type: |
VGA, HDMI, Video, Audio, YPbPr |
Product Description

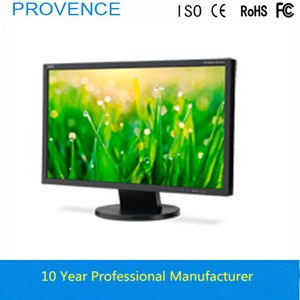

22 inch TFT LCD TV Monitor (PM200MX)
1.3D digital Comb filter and 3D digital image De-noising. Clear image, Wide vision.
2. Certificate: CE, FCC, RoHS
3. Customized Brand: Ours, OEM, ODM
4. Ultra-thin patented appearance, and have the latest anti-glare anti-eye impact design.
5. Built-in power supply, low energy consumption
6. Use the latest 3D graphics DSP circuit technology
7. The ultra-quiet cooling fan design, longer machine life
| PRODUCT DESCRIPTION |
| Panel |
| Diagonal Size | 20" |
| Aspect Ratio | 4: 3 |
| Pixel Pitch | 0.2916(H)× 0.2916(V) |
| Response Time | < 5ms |
| Resolution | 1400*1050 |
| Contrast Ratio | 500: 1 |
| Brightness (cd/m2) | 450cd/m2 |
| Active display area | 411mm(H)× 309mm(V) |
| Display Color (Max) | 16.7M |
| Viewing Angle | H: 170o V: 170o |
| Interface |
|
| VGA | X1 |
| HDMI | X1 |
| Component YPbPr(BNC*3) | X1 |
| Composite video in( BNC) | X2 |
| Composite video out( BNC) | X1 |
| Composite audio in( 3.5mm) | X2 |
| Power |
| Power Supply | AC Input 100~240V(+/-10%)/50-60Hz |
| Power Consumpiton | ≤ 45W |
| Stand-by(MAX) | ≤ 1W |
| Operation/Sotrage |
| Operating Temperature | 0 0 C~50 0 C |
| Operating Humidity | 10%~90% |
| Storage Temperature | -20 0 C~60 0 C |
| Operating Humidity | 0%~90% |
| Safety and Ergonomics |
| Regulations | CE, FCC, ROSH |
| Technical Specification |
| OSD language | Simplify Chinese, English |
| Horizontal Frequency | 20 ~ 82KHz(analog and digital) |
| Vertical Frequency | 55~75Hz |
| Optimum Resolution | 1440x1050 at 60HZ |
| Native Resolution | 1440x1050 at 60HZ |
| Supported Resolutions | 1440x1050; 1280x1024; 1024x768; 832x624; 800x600; 720x400; 600x480; |
|
| Video Modes(no tuner) | 480i; 480p; 576i; 576p; 720p(50 & 60HZ); 1080i(50 & 60HZ); 1080p(50 & 60HZ); |
| Colour Versions | Black |
| Package Contents |
| Base support/Wall mount | x1(optional) |
| Manual | x1 |
| Warranty Card | x1 |
| Remote control | x1 |
| Power adapter | x1 |
| Batteries | x1 |
| Mechanical Spec |
| Wall Mount hole | 75x75mm/4 holes |
| Weight(Set/package) | 9kg/11kg |
| Dimension(W/O stand) | 463.0mm*360.0mm*70.0mm |
| Packing Dimension | 570mm*480mm*150.0mm |
| Warranty |
| 1 year for backlight, 3 years for other parts |
| Terms And Conditions |
| Payment Term | Sight L/C or T/T |
| Shipment Term | FOB, CIF, CNF |
| Port of Loading: | Shenzhen |
| Brand | Follow Client' s Command (Ours, OEM, ODM) |
| Valid Date | 7 days |
| Delivery Time | Within 25 Days After payment |
| About Samples |
| Extra 15% Handling Fee Is Charged For Sample. It will Be Returned When An Purchase Order Is Placed |
| Optional Accessories |
| Loudspeaker(8Ω 5W) |
| HDMI cable (1.5m) |
|
| BNC to RCA Adaptor Jack |
| BNC to BNC cable(1.5m) |
| VGA to BNC cable(1.5m) |
| VGA cable(1.5m) |
PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...
Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.
PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
