| Prod Model: |
SG-1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Shengguang |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
230 VAC |
| Mounting: |
Wall/Window Mount |
| Certification: |
CCC |
| Condition: |
New |
| Air Tube Material: |
None |
| Application Fields: |
Electrical Cabinet |
Product Description

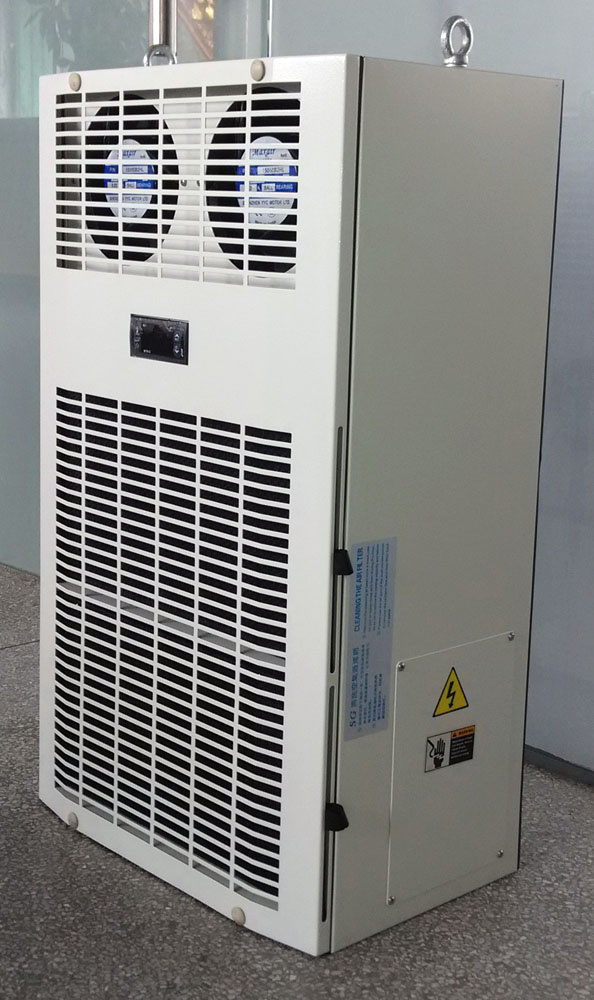

Door Mounting Cabinet Air Conditioner
Scope:
1. Widely used in telecommunications, broadcasting, electricity, automation and other industry outdoor cabinet, IDC room cooling needs.
2. Applications: Electric equipment control box, battery compartment, and telecommunication equipment and other pertinent equipments, enclosed area climate control such as wireless communication cabinet, battery cabinet, industry control cabinet etc.
Features:
1. Applicable for severe ambient environment, such as high temperature.
2. Can work perfectly from -40 to +55 Degrees Celsius.
3. Using natural cooling technologies, energy efficient operation.
4. Keep dust, oil fog and moisture from entering the internal of the equipments. Totally solve dust and moisture contamination issues caused by ventilation.
5. Flexible installation, can be installed perfectly in the side or outside wall of the equipment.
| model | SG500A | SG700A | SG1500A | SG2500A | SG3500A |
| Capacity | 500W | 700W | 1500W | 2500W | 3500W |
| Power | 320W | 365W | 730W | 1400W | 1800W |
| current | 1.9A | 2.1A | 3.5A | 7A | 9A |
| Input | 1~220V 50Hz |
| Set temp. range | 25-35ºC | 25-35ºC | 25-35ºC | 25-35ºC | 25-35ºC |
| refrigerant | R134A | R134A | R134a | R22 | R22 |
width
Thickness
High degree | 320mm
180mm
550mm | 360 mm
200 mm
560 mm | 400mm
240mm
677mm | 400mm
270mm
1100mm | 480mm
270mm
1150mm |
| approx weight | 19Kg | 22 Kg | 40kg | 60kg | 72kg |
Installation |
Walling mount | Walling mount | Walling mount | Walling mount | Walling mou |
