| Prod Model: |
SG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Shengguang |
| Refrigerant: |
R134A/R22 |
| Cooling Capacity: |
700W |
| Cooled Type: |
Refrigerated |
| Usage: |
for Manufacture |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
230 VAC |
| Mounting: |
Wall/Window Mount |
| Certification: |
CE |
| Condition: |
New |
Product Description

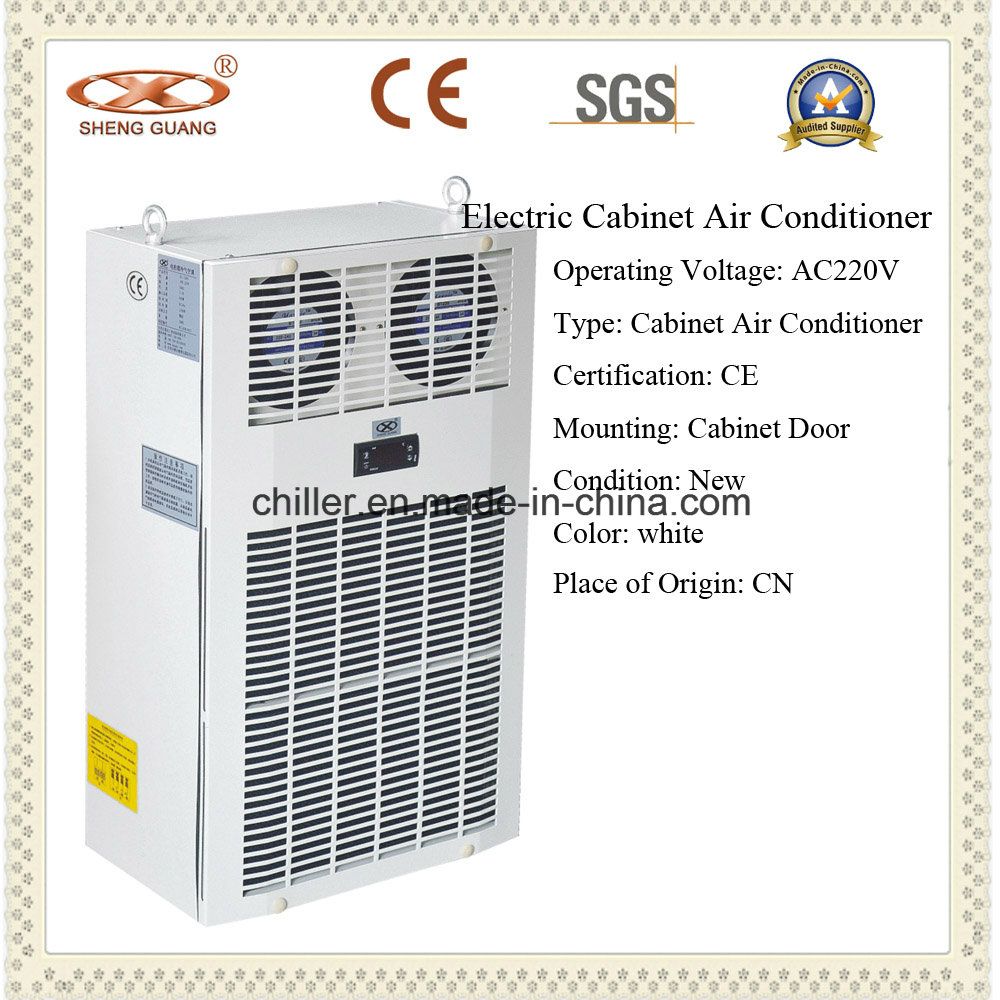

Door Mounting Cabinet Air Conditioner
Scope:
1.Widely used in telecommunications,broadcasting,electricity,automation and other industry outdoor cabinet,IDC room cooling needs.
2.Applications:electric equipment control box,battery compartment,and telecommunication equipment and other pertinent equipments,enclosed area climate control such as wireless communication cabinet,battery cabinet,industry control cabinet etc.
Features:
1.Applicable for severe ambient environment,such as high temperature.
2.Can work perfectly from -40 to +55 Degrees Celsius.
3.Using natural cooling technologies,energy efficient operation.
4.Keep dust,oil fog and moisture from entering the internal of the equipments.Totally solve dust and moisture contamination issues caused by ventilation.
5.Flexible installation,can be installed perfectly in the side or outside wall of the equipment.
| Model | SG-700 | SG-1200 | SG-1800 |
| Cooling Capacity | 700W | 1200W | 1800W |
| Rated operating voltage | 220~240VAC /50Hz/60HZ |
| Rated current | 1.8A | 3.3A | 3.8A |
| Power consumption | 390W | 720W | 800W |
Air volume
| Internal circuit | 190 m3/h | 410 m3/h | 460 m3/h |
| External c ircuit | 380 m3/h | 690 m3/h | 780 m3/h |
| Protect ion category | Internal circuit: P54 ; External circuit: P34 |
| Refrigerant | R134a |
Dimensions in mm(W× H× D) | 3 6 5 × 7 0 0× 18 5 | 4 0 0 × 1 1 00 × 2 3 0 | 4 0 0 × 1 1 00 × 2 3 0 |
| Weight | 28KG | 55KG | 60KG |
| Temperature adjustable range | 2 8 º C _ 50 º C |
The temperature of the cabinet
air conditioning before ex- factory. | The temperature was set up by 32º C
(That is t he cabinet air conditioning will stop ref rigerat ion and
will start for cooling when t he temperature i s up t o 35º C
) |
Dongguan ShengGuang Industrial Equipment Co., Ltd. (former Dongguan City Liaobu ZhiHong Machinery Factory) focuses on developing, manufacture & marketing distribution of special refrigeration equipment and air compression system for worldwide customers since 1994.
Our clients and businesses vary from retailer shops, mail order catalogues, TV shopping to on-line sales. We serve famous global buyers and most of our products are exported the US, EU and Middle-East markets.
Our products range cover:
* CNC processing machine spindle oil temperature cooling machine
* Mechanism tool cutting fluid cooler
* Water cooling machine
* Electric control box heat exchangers
* Screw and piston air compressors
* Refrigerated compressed air dryers
* Compressed air precision filter
Which are suitable for mechanical processing, textile processing, communications, electronics, hardware punch, automatic control systems and many other industries and fields.
Our R&D engineers (including designers, engineers and mechanical engineers) develop around new models every year. We offer one-stop services: from new product design to final shipment, ensuring all your OEM/ODM needs are met.
Our company's purpose is: to explore both domestic and oversea markets with latest technology, to provide high quality and best service to meet customers requirements. The implementation of first-class quality, reasonable price and high quality service, we sincerely welcome new and old customers to negotiate and guide!
To discuss your OEM/ODM requirements with us, contact us now.
