| Prod Model: |
TYA-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Efficient Filtration |
| Structure: |
Mobile |
| Mechanical Principle: |
Vacuum |
| Type: |
Suction Filter |
| Usage: |
Removing Particles, Odor, Water, Acid and Alcohol |
| Gas Content: |
≤ 0.1% |
| Working Vacuum: |
-0.06~-0.095MPa |
| Temperature Range: |
20 ~80c |
| Water Content: |
Less Than 100ppm |
| Cleanness: |
Less Than Nas 6 Grade |
| Certification: |
ISO |
Product Description

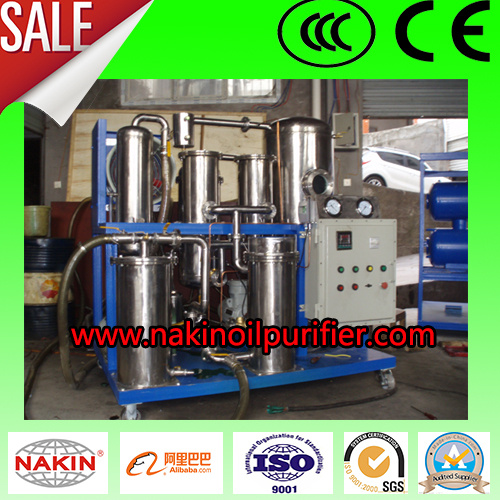

Series TYA vacuum lube oil purifier Application:Series TYA vacuum lube oil purifier is mainly for purifying unqualified lubricating oil, hydraulic oil, compressor oil, refrigeration oil and other industrial oils, this machine can rapidly separate water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc. ) from oil, restoring oil viscosity, flash point and performance. The treated oil can reuse again in various industrial equipments. It is widely applied in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway etc.
Features:1. Double primary-filter structure, large capacity for holding particles, Multi-stage filtration system to ensure high filtration precision.
2. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
3. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc. )
4. Automatic backwashing system, improving working efficiency
5. Advanced medium cooling system
6. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
8. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Advantages:Good economic benefits, widely application, it is suitable for purifying various old lube oil in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and so on.
| Index name | Unit | TYA-10 | TYA-20 | TYA-30 | TYA-50 | TYA-100 | TYA-150 | TYA-200 | TYA-300 |
| Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Working vacuum | MPa | -0.06~-0.095 |
| Working pressure | MPa | ≤ 0.4 |
| Temperature range | C | 20 ~80 |
| Demulsifying value | min | ≤ 15/min(GB/F7035) |
| Water content | ppm | ≤ 100 |
| Gas content | % | ≤ 0.1 |
| Cleanness |
| ≤ NAS 6 grade |
| Power supply |
| 380V 50HZ 3Ph (As per user' s option) |
| Working noise | dB(A) | ≤ 65~80 |
| Heating power | Kw | 36 | 40 | 45 | 60 | 80 | 110 | 145 | 160 |
| Total power | Kw | 38 | 42 | 47 | 65 | 96 | 124 | 157 | 178 |
| Inlet(Outlet) | mm | Φ 25 | Φ 25 | Φ 25 | Φ 32 | Φ 42 | Φ 50 | Φ 50 | Φ 60 |
| Weight | kg | 350 | 380 | 400 | 450 | 750 | 880 | 1100 | 1300 |
| Dimension | L | mm | 1500 | 1500 | 1500 | 1600 | 1750 | 1900 | 1950 | 2100 |
| W | mm | 1000 | 1050 | 1050 | 1150 | 1150 | 1600 | 1600 | 1700 |
| H | mm | 1600 | 1600 | 1650 | 1700 | 1750 | 1950 | 1950 | 1950 |
Our Products List : ZYD vacuum transformer oil purifierZY vacuum transformer/insulating oil purifier
ZYM Mobile Trailer type transformer oil purifier
IIJ-II Insulating/transformer oil dielectric strength tester
TYA Lubricant/hydraulic/turbine oil purifier
JZS Waste engine oil regeneration system
TJ Coalescence and separating oil purifier
TYK Phosphate ester fire-resistant oil purifier
PF Plate pressure oil purifier, Portable oil purifier
NKEE-36 Oil moisture sensor
AD Air dryer for drying electric equipments
TPM Oil water separator Contact us ,we will recommend the most suitable oil purifier to you.CHONGQING NAKIN ELECTROMECHANICAL CO., LTD. is dedicated to provide you the best solution for all kinds of industrial oil regeneration. If you are interested in our oil purifier machines, please do not hesitate to contact us. Contact: Annabelle
