| Prod Model: |
A-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Handheld Microphone |
| Application: |
Meeting |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
Product Description

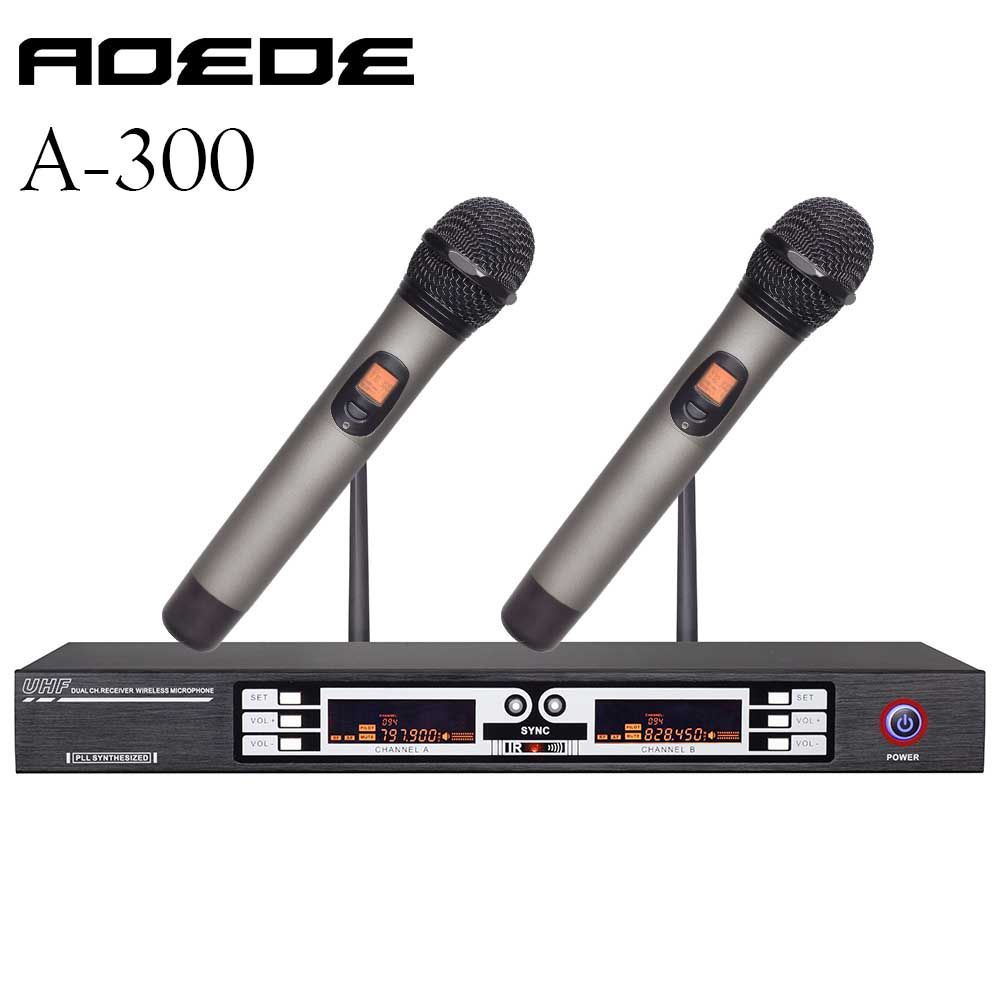

AOEDE A-300 UHF IR Digital Pilot Wireless Hand-held Microphone Mic System
The A-300 is a premium quality wireless system features the innovatory IR Digital Pilot technology, which enables the system to work with exceptional strong anti-interference. And the other great features of PLL technology, Tone Lock Squelch circuit, 200 selectable channels, and automatic frequency scanning will definitely bring your professional sound station to a new high level.
Features:
* Innovatory IR Digital Pilot technology for ultra strong anti-interference
* Frequency synthesized PLL (phase lock loop) circuitry for stable signal transmission
* Built-In Tone Lock Squelch circuit protection from RF interference
* Wide range professional application with 200 selectable channels
* Automatic transmitter synchronization
* Automatic frequency scanning to find and set the best available channel
* Adjustable Pickup Sensitivity of the microphone for best sound performance in various applications
* Dual channel Receiver, two microphones can work at same time
* Rugged METAL construction handheld microphones
* Backlit display of the receiver showing frequency, signal strength and other working status
* Lock function of the receiver and microphone to lock the working status without any interruption by mistake during operation
* Two balanced XLR outputs for each channel and one 1/4" Mixed output on the receiver
* Rack mountable receiver fits 19" rack
* Independent volume control for each channel
* Range: up to 330 feet (100 meters)
Specifications:
* Carrier Frequency: UHF 610MHz - 670MHz ( Other Frequency please contact us )
* Frequency Stability: ±0.005% (quartz crystal locked)
* Sensitivity: -97dbm
* Audio Output Impedance: 600 Ohm
* S/N ratio: >105dB
* Frequency Response: 60Hz~15KHz
* Modulation mode: FM
* Battery Life of microphone : Up to 8 Hours ( AA batteries )
* Degree of Distortion: < 0.5%
* Power Supply of Receiver: 100V-240V AC adapter
* Power of transmitter: 2 x 1.5V (AA)
Content:
* One(1) dual channel UHF Receiver
* Two(2) UHF wireless handheld microphones with metal construction
* Two(2) UHF antennas
* One(1) 1/4" audio cable
* One(1) 100V-240V AC adapter
* Two(2) rack mounting brackets
* Four(4) AA batteries
* One(1) Instruction Manual
PAYMENT:
Feel free to contact us if you have any question.
SHIPPING:
International buyers please contact us for the best shipping rate.
RETURN POLICY:
We accept exchange or refund within 14 days upon the receipt of the item if the buyer is not satisfied with the item. Buyer is responsible for return shipping. International Shipping fee is non-refundable.
WARRANTY:
One year limited warranty.
*Proof of purchase is required for all warranty work.
LIMITED ONE YEAR WARRANTY
1) Warranty starts from the original Date of Purchase or the Date of product's arrival (whichever is later) and is good for 1 year.
2) This warranty only covers failures due to defects in materials or workmanship. It does not cover damage, which occurs in shipment or results from alterations, accidents, misuse, introduction of liquid or other foreign matter into the unit, abuse, neglect, installation, improper maintenance, or failures that are caused by products not supplied by ATL-AUDIO, and modifications by anyone other than the Factory or Authorized ATL-AUDIO Service Center.
3) Warranty does not cover 2nd hand products.
4) Warranty does not cover any shipping cost.
With more than 30 years of experience in designing, manufacturing, and marketing audio equipment, we provides products for professionals and amateurs alike. Included are wireless microphone systems and accessories. We has sold millions of wireless systems worldwide, and continues to provide some of the most innovative/highest performing products on the market at the most competitive prices. Our microphones have also been the No. 1 choice for many public speaking/broadcasting applications and even professional vocal performance. We have a great reputation of making innovative quality products that appeal to people world wide with customer support to match. And we has proven that Professional Products and Exorbitant Pricing are not necessarily synonymous.
Website: www.aoede.com.cn
