| Prod Model: |
A-3538 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Handheld Microphone |
| Application: |
Amplify |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
Product Description

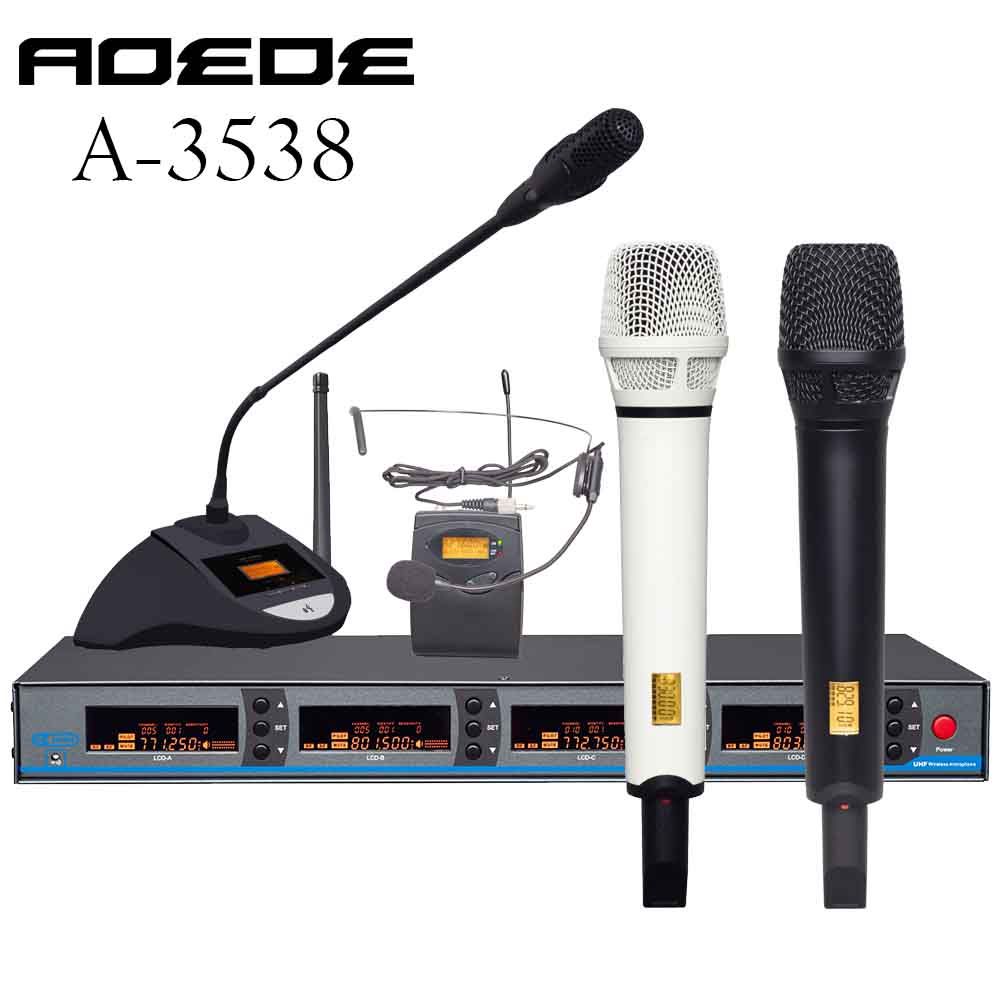

True Diversity AOEDE A-3538 UHF IR Digital Pilot Wireless Hand-held Microphone Mic System
The A-3538 is a premium quality wireless system features the innovatory IR Digital Pilot technology, which enables the system to work with exceptional strong anti-interference. And the other great features of PLL technology, Tone Lock Squelch circuit, 4x50 selectable channels, and automatic frequency scanning will definitely bring your professional sound station to a new high level.
Features:
* Innovatory IR Digital Pilot technology for ultra strong anti-interference
* Frequency synthesized PLL (phase lock loop) circuitry for stable signal transmission
* Built-In Tone Lock Squelch circuit protection from RF interference
* Wide range professional application with 200 selectable channels
* Automatic transmitter synchronization
* Automatic frequency scanning to find and set the best available channel
* Adjustable Pickup Sensitivity of the microphone for best sound performance in various applications
* Rugged METAL construction handheld microphones
* Backlit display of the receiver showing frequency, signal strength and other working status
* Lock function of the receiver and microphone to lock the working status without any interruption by mistake during operation
* Independent volume control for each channel
* Range: up to 263 feet (80 meters)
Specifications:
* Carrier Frequency: UHF 610MHz - 670MHz ( Other Frequency please contact us )
* Frequency Stability: ±30ppm
* Sensitivity: -90dbm
* Audio Output Impedance: 600 Ohm
* S/N ratio: >105dB
* Frequency Response: 40Hz~20KHz±3dB
* Modulation mode: FM
* Battery Life of microphone : Up to 8 Hours ( AA batteries )
* Degree of Distortion: < 0.5%
* Power Supply of Receiver: 100V-240V AC adapter
* Power of transmitter: 2 x 1.5V (AA)
Content:
* One(1) Four channel UHF Receiver
* Four(4) System offer choices of handheld microphone transmitter or body-packtransmitter with lavalier and headset microphone for different applications.
* Two(2) UHF antennas
* One(1) 1/4" audio cable
* One(1) 100V-240V AC adapter
* Two(2) rack mounting brackets
* Eight(8) AA batteries
* One(1) Instruction Manual
