| Prod Model: |
RO-1000J(2000L/H) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Efficient Filtration |
| Type: |
Reverse Osmosis |
| Motive Force: |
Electric Power |
| Style: |
Vertical |
| Usage: |
Environmental Protection, Chemical Industry |
| Material: |
Ss304 |
| Capacitity Of Water Production: |
2000 Liter Per Hour |
| Capacity: |
2000L/H |
Product Description

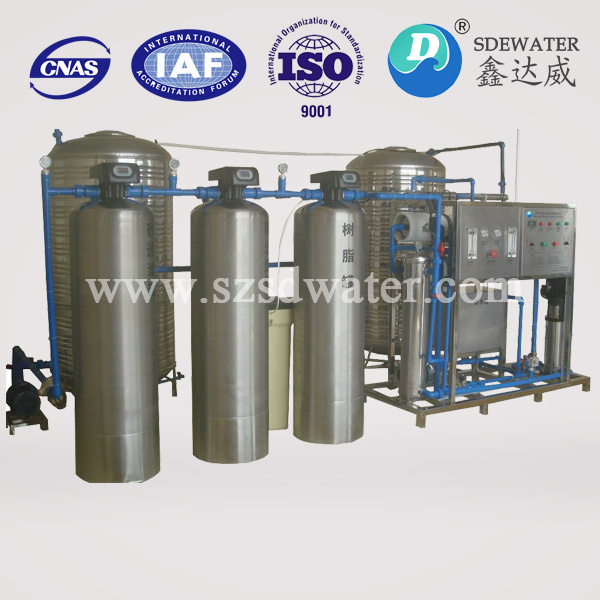

2000L/H RO System Water Purifier
RO system,water purifier,water treatment equipment.
(1)Technical Parameters
Specification:
No. | Item | Parts | Model&Specification | Qty |
| 1 | source water tank | water tank | 2T, stainless steel | 1pc |
| 2 | Raw water pump | pump | BLC70/075T pump head:5T/h,075kw | 1set |
| 3 | Pressure protection device | / | 1pc |
| 4 | Sand filter | Vessel | S.S.304 Φ500*1850mm | 1pc |
| 5 | auto control valve | Runxin valve F67B1 | 1set |
| 6 | Refining Quartz Sand | 250kg | 250kg |
| 7 | Pipeline | PVC | 1set |
| 8 | Carbon filter | Vessel | S.S.304 Φ500*1850mm | 1pc |
| 9 | auto control valve | Runxin valve F67B1 | 1set |
| 10 | activated carbon | 125kg | 75kg |
| 11 | Pipeline | PVC | 1set |
| 12 | Water softener | Vessel | S.S.304 Φ500*1850mm | 1pc |
| 13 | auto control valve | Runxin valve F64A | 1set |
| 14 | cation exchange resin | Purolite,UK | 150L |
| 15 | Pipeline | PVC | 1set |
| 16 | Micron Filters | Micron Filters | 40inch*4items, 5u m, SS304 | 1set |
| 17 | R.O Unit | high pressure pump | CDLF4-160 | 1set |
| 18 | RO membrane | BW30-4040 | 8pcs |
| 19 | Pressure vessel | stainless steel 4040*2 | 4pcs |
| 20 | Material of construction | SS304 | 1set |
| 21 | water storage tank | water tank | 2T, stainless steel | 1pc |
| 22 | Ultraviolet sterilizer | Ultraviolet sterilizer | KADIND H-20 | 2pcs |
| 23 | Bacterial Filters | Bacterial Filters | 40inch*4items, 0.2u m, SS304 | 1set |
| 24 | Electrical control | Electric Box | SS304 | 1set |
| 25 | PLC control | LG brand | 1pc |
| 26 | other components | / | 1set |
| 27 | Pipeline | Low pressure parts: PVC-U, High pressure parts |
(2)Products Description
1.RO system refers to reverse osmosis system, the most advanced technique in water purifying machine.
2.This Equipment can be design for both small and large scale water factory according to the output.
3.A variety of protective measures are designed to defend system in case of poor power, larger electrical current, no power, short circuit, creepage of electricity etc.
(3)Functions and Characteristics
Pure water to clean, clear, and sterile
All equipment chemicals are supplied
All equipment accessories are provided
Ro membranes include auto wash and manual wash
Minimal manual supervision on account of automatic
Provide plant design and operating instructions are provided
Protective measures when poor power, larger electrical current, no power, short circuit, creepage of electricity etc.
(4)Useful for
Factory and water bottle filling production
Hotel drinking water supply
Farm water supply
Many other applications
(5)Before Design
1. We need you to advise us what kind of drinking water that you want to manufacture. Is it pure water, mineral water or beverage?
2. We need you to tell us the kind of your source water, and you need to provide us Source Water Testing Analysis Report.
3. Please tell us the production capacity of the machine that you demand, so that we can recommend the suitable machine to you and present quotation solution for you.
4. Please tell us the type of electric Voltage, Frequency in your country.
(6)Shine Dew Products catalog
1. Reverse osmosis water purification equipment
2. Ultra filtration systems for mineral water and spring water
3. Auto water filling machines for 3/5 gallon bucket and small bottle (0.35-1.5L)
4. Packaging machines, like labeling machines and date printing machines
5. Bottle blowing machines for small PET bottles
6. Make budget for customers; building water treatment factories as per clients' request
7. Factory layout design, machine installation and adjustment and operation technology training
Device function:
This device has both automatic and manual modes. While in automatic mode, the RO membrane rinses, the device operates automatically. It runs when the pure water is at low level, stops at high lever and at water shortage stage automatically.
Short circuit, creepage and water shortage of pressure pump protection.
