| Prod Model: |
LA312 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
Dual 12inch, Three-Way Line Array System |
| Frequency Range: |
40Hz-20kHz |
| Frequency Response: |
60Hz-18kHz |
| Horizontal Coverage Angle: |
90 |
| Vertical Coverage Angle: |
10 |
| Noise: |
<95dB |
| Application: |
Commercial |
| Certification: |
RoHS |
| THD: |
<0.03% |
Product Description

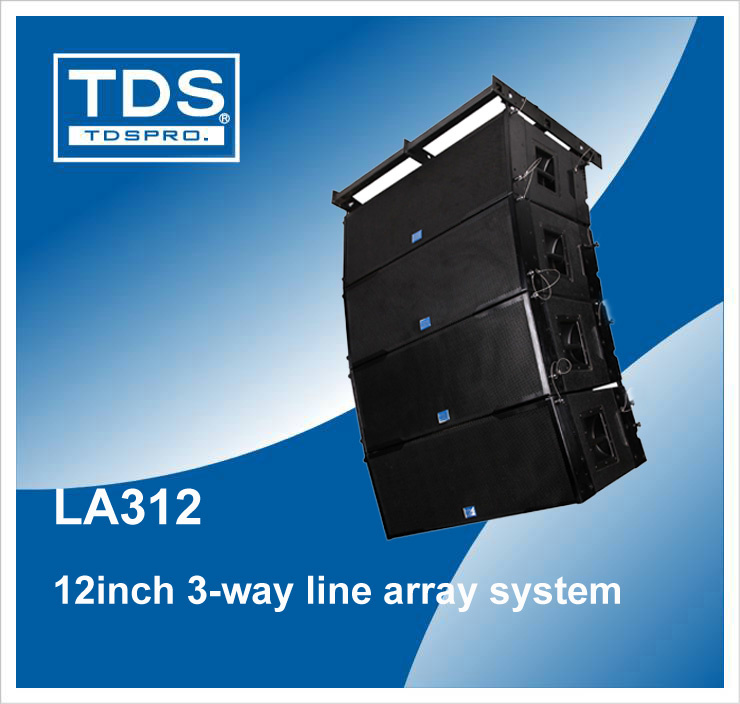

2 x NL8MP Neutrick Speakeron Connector LA312 Line Array System For Large Scale Mobile Performance
The LA312--dual 12'' line array is designed to deliver high quality sound reinforcement of full-range frequencies for live music and a variety of applications. Typical uses include convert audio and multi-media presentations of all types. The LA312 is a rugged, lightweight centrally vented enclosure housing two high quality 12'' woofers. The two advanced components provide high output capabilities with an advantageous power-to-weight ratio. Compact enclosure convenient for fixed and mobile usage. The rigging hardware made from premium-grade alloy aluminum which greatly assures the suspension safety.
Features
Dual12inch three-way line array system.
Three units neodymium compression driver with 44mm voice coil.
High efficiency 6.5inch neodymium MF transducer.
Fast installation rigging system.
More choices for vertical coverage angle.
Applications
Large scale indoor & outdoor performance
Fixed installation in stadium, theatre etc.
Large scale mobile performance.
| Outdoor Line Array System |
TECHNICAL SPECIFICATION
|
| Frequency Range(-10dB) | 40Hz -- 20KHz |
| Frequency Response(± 3dB) | 60Hz -- 18KHz |
| Horizontal Coverage Angle(-6dB) | 90° |
| Vertical Coverage Angle(-6dB) | 10° |
| System Input Power Rating | LF: 800W Continuous. 1600W Peak |
| MF: 300W Continuous. 600W Peak |
| HF: 180W Continuous. 360W Peak |
| Maximum Peak Output | 139dB |
| Recommended Amplification | LF: 1200W into 8 ohms |
| MF: 800W into 8 ohms |
| HF: 600W into 8 ohms |
PHYSICAL DATA |
| Dimensions (W x H x D) | 1120 x 390 x 500mm |
| Weight (net) | 56 kg |
| Connectors | 2 x NL8MP Neutrik Speakon Connectors |
| Cabinet Material | 18mm birch plywood |
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
