| Prod Model: |
P2.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
320X320mm |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Pitch: |
2.5mm |
| Pixel Configuration: |
SMD2121 Black Face |
| Pixel Density: |
160000dots/M2 |
Product Description
Features:
1. Seamless of unit joint
2. Intelligence of brilliance control
3. Real and natural color
4. Exquisite and smooth picture
5. Greater Optimal viewing area
6. Stability

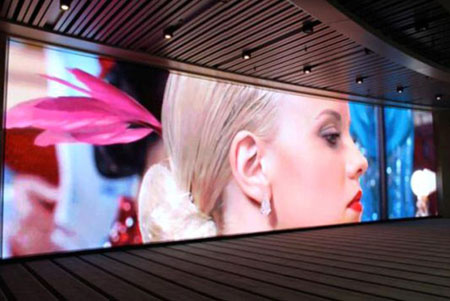

Application Case:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.
LED System Diagram:
| NO. | Item | Parameter |
| 1 | Model | P2.5 |
| 2 | Pixel pitch | 2.5mm |
| 3 | Pixel configuration | 1R1G1B |
| 4 | LED type | SMD2121 |
| 5 | Module size | 160x160mm |
| 6 | Module resolution | 64x64 |
| 7 | Cabinet resolution | 128x128 |
| 8 | Cabinet size | 320x320mm |
| 9 | Density | 160000dots/m2 |
| 10 | Brightness | ≥1200nits |
| 11 | Scan method | 1/16 |
| 12 | Best view distance | 3m |
| 13 | Max. power consumption | 300W/panel |
| 14 | Ave. power consumption | 150W/panel |
| 15 | Cabinet weight | 7 kg |
| 16 | Refresh rate | ≥960Hz |
| 17 | Grey scale | 65536 levels |
| 18 | Colors | 281 billion |
| 19 | View angle | Horizontal: 140°, Vertical: 140° |
| 20 | Color temperature | 6500K |
| 21 | Frame frequency | ≥60Hz |
| 22 | Out of control pixel rate | <1/10000 |
| 23 | MTBF | >5000 hours |
| 24 | Lifespan | 50000 hours |
| 25 | Control mode | Synchronous display with control PC by DVI |
| 26 | Working voltage | AC 100/200v 50-60Hz |
| 27 | Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
| 28 | Operation temperature | -20 to +60 |
| 29 | Operation Humdity | 10% to 80% |
| 30 | Protection level | Indoor |
