| Prod Model: |
AD1913WSV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Formats: |
Mpg, Mpg-1, Mpg-2, Mpg-4, AVI, MP4, RM, RMVB |
| Video Decode Maximum Resolution: |
720*576 |
| Video Maximum Bit Stream: |
30MB/S |
| LCD Size: |
19 Inch |
| Active Area: |
408.24 (W) * 255.15 (H) (Mm) |
| Screen Ratio: |
16:9 |
| Resolution: |
1440 X 900 (H*V) |
| Brightness: |
250CD/M2 |
| Contrast Ratio: |
1000:1 |
| Application: |
Indoor AD Player |
| Type: |
USB |
Product Description
Key Function:

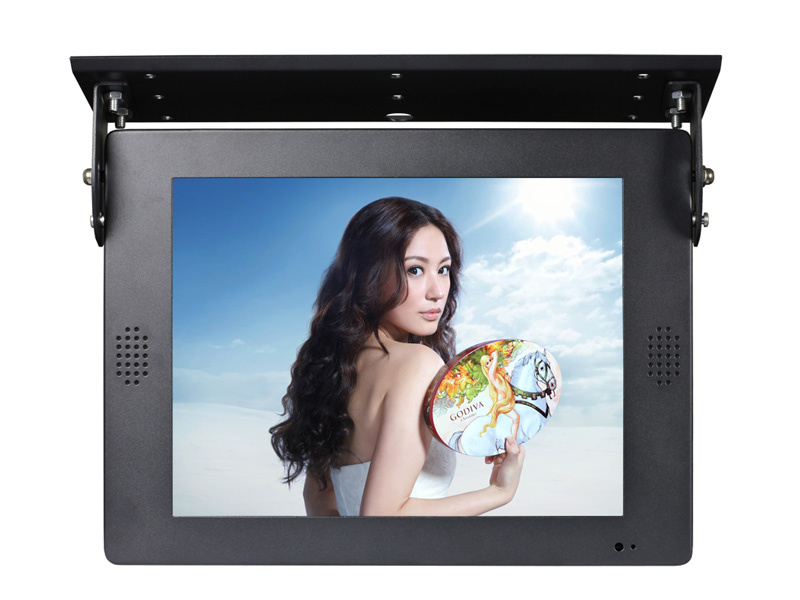

1. Specially designed for bus usage with extra technical enhancement
2. Update contents simply with an USB drive
3. Auto play and replay, Timer function (auto power on / off)
Main features:
1. Built-in 19" (16: 10) TFT LCD screen
2. Metal housing, with tempered glass covering the LCD screen. The angles of inclination can be adjusted as per users' special need.
3. Suitable for DC 12-24V use, long time playing and replaying for inner bus advertisement.
4. Play from:
--Compact Flash card (CF card)
--USB flash drive
--Built-in memory
5. Update contents of the memory card by simply inserting an USB flash drive, no need to take out the memory card, no need to use computer
6. Timer function: The player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame
7. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing
8. Theft-protection device effectively prevent the player and CF card from being stolen in public place
9. Audio output: 2 X built-in high quality stereo speakers
10. Professional mounting kits (ceiling mount and wall mount) are available
Technical Specifications
1. TFT LCD screen:
LCD Size: 19 Inch
Active Area: 408.24 (W) * 255.15 (H) (mm)
Pixel Pitch: 0.2835 (W) * 0.2835 (H) (mm)
Screen Ratio: 16: 10
Resolution: 1440 X 900 (H*V)
Brightness: 250CD/m2
Color: 16.7M (6bit+Hi-FRC)
Contrast Ratio: 1000: 1
View Angle: 85° /85° /80° /80° (L/R/U/D)
Response Time: 1.5 / 3.5 ms
2. Compatible file formats:
Video: MPEG1 (VCD), MPEG4
Audio: MP3, WMA
Picture: JPEG, BMP
3. Play from:
Memory Flash: CF card, Max. 8GB. SD card is optional before production
Built-in Flash Memory: Optional, confirm before production
USB: High speed USB 2.0 (Host & OTG)
4. Output:
Built-in 2X2W high quality stereo loudspeakers
5. Others:
IR body Sensor Distance: 3m, Optional
Remote Controller Distance: 4-5m
Power Supply: DC12-24V 4A
Speaker: Built-in 2X2W high quality stereo loudspeakers
Casing: Metal
Body Size: 500 (L) * 325 (W) * 55 (H) (mm)
Body Weight: 7.6 (kg)
Standard Accessories: Users manual or CD, Remote control, Spare screws
6. Neutral Packing:
Unit Size: 60.5 * 14.5 * 44 (cm)
Unit Weight: 9.5 (kg)
Carton Size: 62 * 30.5 * 46.5 (cm)
Carton Weight: 19.7 (kg)
Units Per Carton: 2 PCS
