| Prod Model: |
AD2208WP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Life Span: |
More Than 50000hours |
| Video Resolution: |
1920*1080P |
| Bit Rate: |
30m Bits |
| Type: |
TFT |
| Application: |
Indoor |
| Aspect Ratio: |
16:9 |
| Feature: |
With Remote Control |
| Screen Size: |
20-22" |
| Interface Type: |
USB |
Product Description
Key Function
1. Upgrade contents of the memory card (or Built-in memory) by simply inserting an USB flash drive
2. Timer function: The player turns on/off at the same time everyday according to your setting
3. Function keys on the player can be disabled or enabled
Main Function

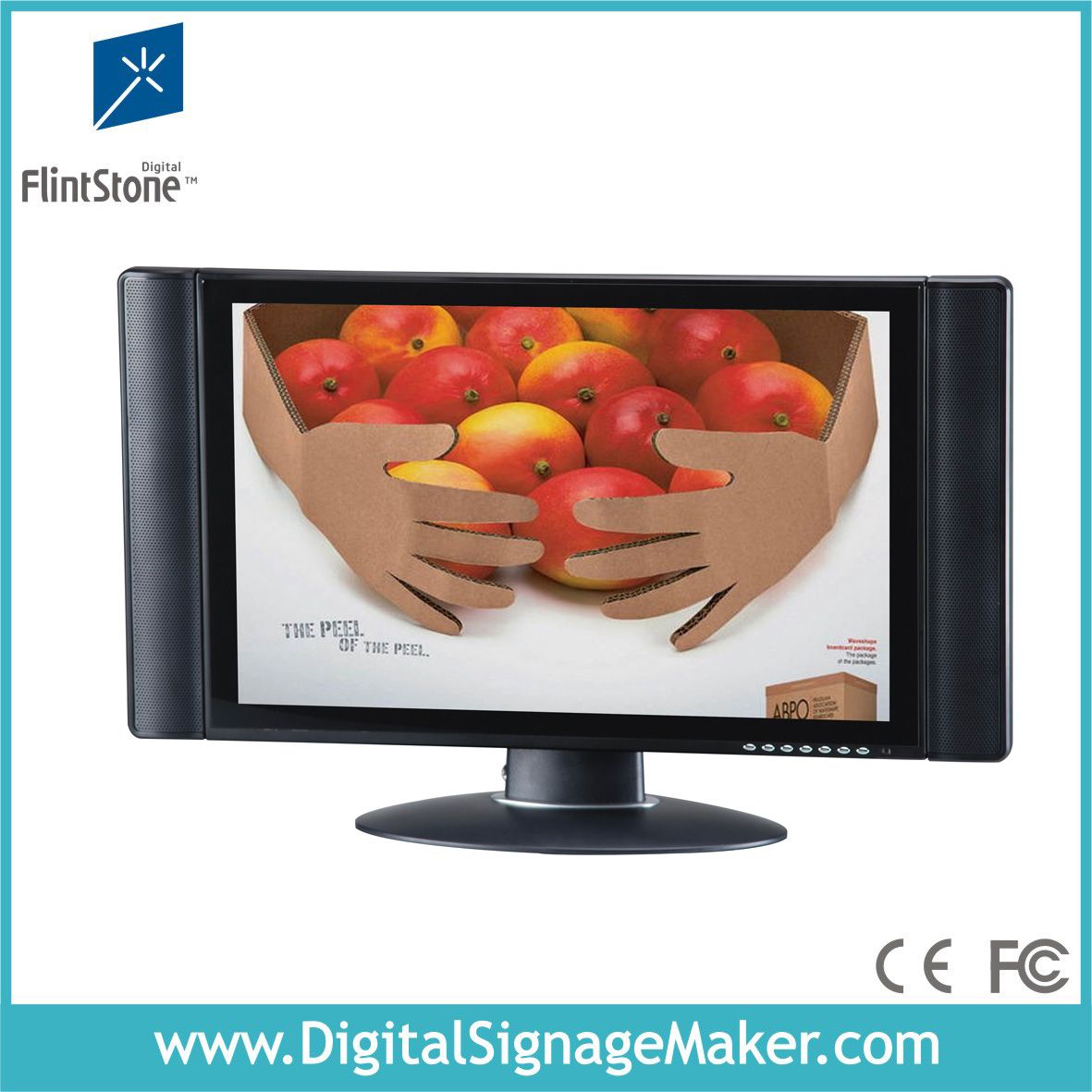

1. Play MP4 advertising video, MP3 music and digital photos; Built-in 21.5 inch TFT LCD screen, with tempered glass protection; Easy-to-install on supermarket shelves, tabletop, showcase and lift, etc.; Plastic casing
2. Play from:
--Compact Flash card (CF card)
--USB flash drive
--Built-in memory
3. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card
4. Timer function: The player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame
5. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing
6.7 function keys on the players, they can be turned on / off
7. Theft-protection device effectively prevent the player and CF card from being stolen in public place and protect the power cord being pull out easily
8. Audio output: 2 X built-in high quality stereo speakers
9. With professional easy-to-use stand set; Can be installed on desktop, self edge, showcase, wall etc.
Technical Specifications
1. TFT LCD screen:
LCD Size: 21.5 Inch
Active Area: 476.64 (W) * 268.11 (H) (mm)
Pixel Pitch: 0.248 (W) * 0.248 (H) (mm)
Screen Ratio: 16: 9
Resolution: 1920 X 1080 (H*V)
Brightness: 250CD/m2
Color: 16.7M (8-bit)
Contrast Ratio: 1000: 1
View Angle: 85° /85° /80° /80° (L/R/U/D)
Response Time: 1.3 / 3.7 ms
2. Compatible file formats:
Video: MPEG1 (VCD), MPEG4
Audio: MP3, WMA
Picture: BMP, JPG
3. Play from:
Memory Flash: CF card, Max. 8GB. SD card is optional before production
Built-in Flash Memory: Optional, confirm before production
USB: High speed USB 2.0 (Host & OTG)
4. Output:
Built-in 2X2W high quality stereo loudspeakers
5. Others:
IR body Sensor Distance: 3m, Optional
Remote Controller Distance: 4-5m
Input Voltage: AC100V-240V (50Hz-60Hz)
Power Supply: DC4A, 48W (MAX)
Speaker: Built-in 2X2W high quality stereo loudspeakers
Working Temperature: 0-45
Storage Temperature: -20- 60
Working Humidity: 20%-80%
Storage Humidity: 10%-95%
Casing: Plastic (ABS + PC)
Body Size: 630(L) * 340(W) * 65 (H) (mm)
Body Weight: 6 (kg)
Standard Accessories: AC power adaptor, Users manual or CD, Remote control
6. Neutral Packing:
Unit Size: 69.5 * 19 * 47.5 (cm)
Unit Weight: 7.72 (kg)
Carton Size: 72 * 40.5 * 50.5 (cm)
Carton Weight: 17 (kg)
Units Per Carton: 2 PCS
