| Prod Model: |
D190D0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
19inch |
| Brightness: |
350nit |
| Active Display Area: |
376.3*310.1 |
| Resolution: |
1280*1024 |
| Backlight: |
LED |
| Application: |
Advertising |
| Aspect Ratio: |
16:9 |
| Widescreen: |
Not Widescreen |
| Feature: |
LED Backlight Display |
| Optimum Resolution: |
1920x1200 |
| Screen Size: |
19" |
| Interface Type: |
HDMI |
| Response Time: |
5ms |
| 3D: |
Not 3D |
Product Description

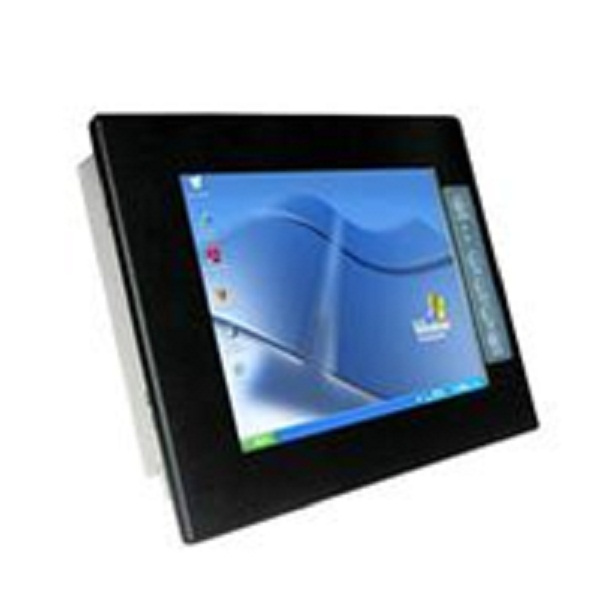

This 19" Wallmount flat panel display is designed specially to be used in a variety of industrial and process control environments. It is suitable for industrial, ATM's, marine equipment, CNC, HMI, medical, public information, food, chemical, pharmaceutical, process control etc.
This display is PC compatible with VGA video boards, besides the BNC in and loop-through out, which satisfies a wide variety of industrial control and man-machine interface application.
FEATURES
1. Rugged construction ensures long-lasting durability with professional High Purity Color filters
2. Excellent Brightness and Contrast
3. 3-D video noise reduction
4. Motion adaptive 3-D comb filter
5. High-quality dual scaling engines & dual 3-D video de-interlacers
6. Specific high performance picture/color processing engine
7. Applicable to all surveillance system
8. High performance and programmable sharpening filters with Noise Coring
9. Easy Operation on muti-language OSD
v id="StyleTableProd">
| Des | LMI190WM |
| Panel Type | 19" TFT Color LCD |
| Active Display Area | 376.3(H)mmx310.1(V)mm |
| Brightness | 350 cd/m2 |
| Contrast Ratio | 1000:1 |
| Resolution | 1280X1024 |
| Backlight | 4 CCFLs |
| Response Time | 8ms |
| Viewing Angle | 170/170 |
| Input Signal | PC | Connector:Analog input D-sub-15pin Fh:31KHz-80KHz Fv:50Hz-75Hz |
| VIDEO | NTSC/PAL Composite Video |
2ch BNC In (Lever: 1.0V p-p/75ohm)
2ch BNC Loop-through Out |
| Touch Screen | - (option) |
| Power Input | AC110V-240V |
| Operating Method | 5 keys keypad OSD |
| Power Consumption | Max.40W |
| Operation Temperature | -10~60 |
| Operation Humidity | 10%~80% |
| Storage Temperature | -20~65 |
| Storage Humidity | 10%~80% |
| Case Material | cold rolled steel |
| Net Weight | 6Kg |
