| Prod Model: |
H192-GUW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Semi Outdoor AD Player |
| Type: |
Advertising Player |

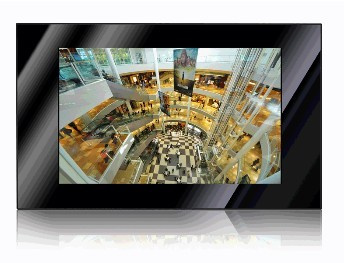

Product Description
Lightweight ultra-thin fashion design
Perfect advertisement playing function
Use wide viewing angle, High Brightness LCD panel
Power on, power off automatically everyday without any body management
Support 720P, 1080I, 1080P HD decoding output
Support CF card, SD card, U-disk, SATA hard disk Program display
Support U-disk updating program
Support software intelligence upgrading
Support the two high fidelity sound output
Optional Network broadcast function
|
Front panel |
Acrylic panel ,Aluminum frame |
|
Installation |
wall mounting |
Front panel |
Black |
|
The input voltage |
DC 12V/DC 6-28V/AC 220V |
Working Temperature |
0~60degree |
|
Storage Temperature |
-20~70degree |
Contrast Temperature |
10~95%@40degree (No condensation ) |
|
Vibrating |
50~500Hz,1.5G.0.15mm Peak |
Buffer |
10G(11ms) |
|
Overall Size |
516×335×48mm(W×H×L) |
Box size |
512×331×41mm(W×H×L) |
|
Parameters |
|
Display area |
412×258mm |
Color |
16.7M |
|
Max Resolution |
1440×900 |
Display Type |
WXGA TFT LCD |
|
Response Time |
8ms |
Backlight
|
CCFL/LED |
|
Backlight life |
50,000hours |
Brightness |
300cd/squa |
|
Max Viewing angle |
(H)150/(V)130 |
Contrast |
500:1 |
|
Pixel Distance |
0.285×0.285 |
|
|
With over eight years' industry experience, we Shenzhen HAMI Industry Co. Ltd specialize in LCD monitors/module for industrial or security applications, touch screen LCD monitors, as well as digital car CD changers. Our engineers can create one or two new items monthly and customize a sample on customers' specifications in one month.
LCD panels of our LCD monitors are sourced from South Korea and Japan which are in reliable quality, Our chips are sourced from the US and Taiwan. For smooth distribution, all of our products carry CCC, CE and FCC marks. To make you at ease, we can provide one-year warranties. All the appearance tools and mainboard solutions are developed by ourselves.
Our full product range for you:
7" to 42" LCD monitor, both high and low resolution, touch-screen and non-touch, plastics and metal case for industrial, CCTV, POS, Medical, Advertisement, stadium...etc use.
Small order accept, fast Delivery
We can turn out 8, 000 LCD products each month. Our target markets are located in Europe and the US. We accept orders as small as one unit, and deliver an order of 100 units within three to five days.
For more information, contact us today.
