| Prod Model: |
H170J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Application: |
Surveillance |
Product Description

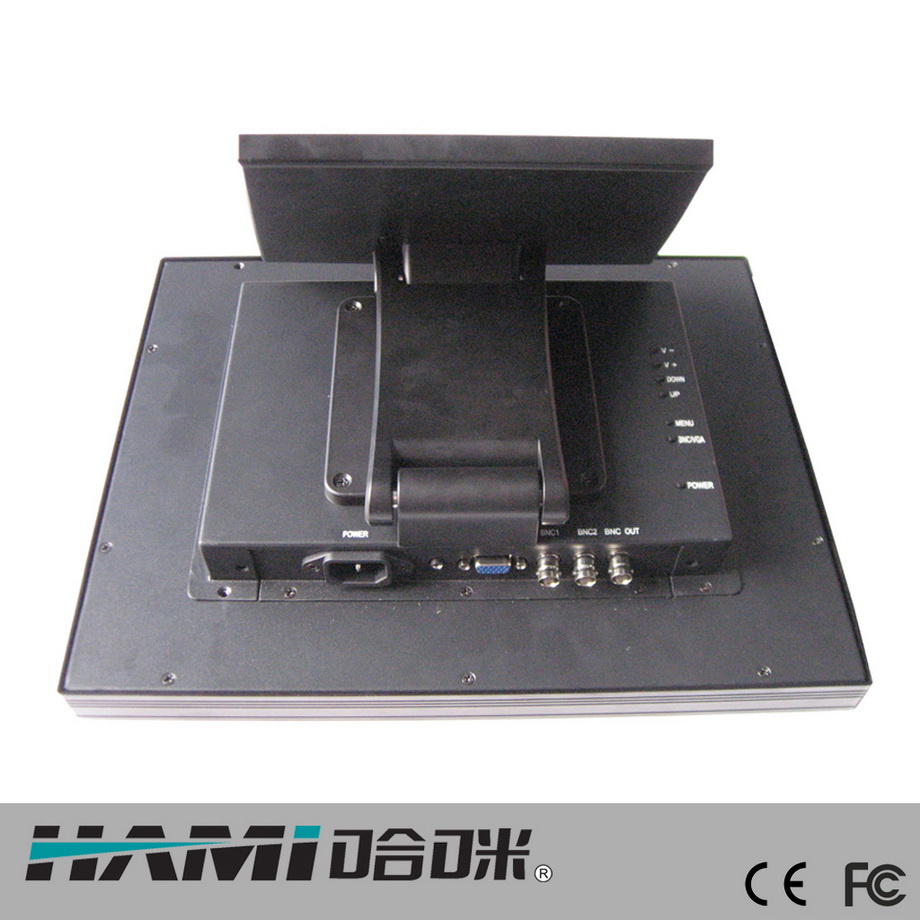

17" CCTV LCD display is mainly applied to security and surveillance, CCTV monitoring.
|
Features: |
Specifications: |
|
17" TFT LCD Display (4: 3) |
Language: English/Russion/French/Spanish /Italin and Germany |
|
Non-touch screen |
Max Suggested Resolution: 1280*1024 |
|
Video standard: PAL/NTSC automatic recognition |
Luminance: 400cd/m2 |
|
One VGA input |
Contrast Ratio: 250: 1 |
|
Two BNC input One BNC output |
View Angle: 85° /85° /80° /80° |
|
One HDMI input for customers' requirement |
Response Time: 8ms |
|
One power jack |
Lifespan: 50, 000 hours |
|
Multifunctional Remote Control |
Screen pixels pitch: 0.264-0.264mm |
|
Supports rugged metal frame, anti-static/magnetic field and strong anti-interference, environment-Friendly design |
Max Power Consumption: 30W Standby state: 1W |
|
Supports VESA standard and customized stands |
Product Dimensions: 39.3*32.6*7.0(cm) |
VESA (75 x 75mm) standard wall mounting hole (optional) |
Net Weight: 5.6KG |
3D digital comb filter (PAL/NTSC)
3D digital noise reduction
HD high-definition signal
Progressive scan
10-bit LCD panel drivers, color transition smooth and vivid
WCG to CCFL colorful backlight |
Working temperature: 0 to 50° C
Working humidity range: 20 to 80% RH (non-condensing)
Storage temperature: -10 to 60° C
Storage humidity range: 5 to 95% RH (non-condensing) |
|
Package: |
|
Gift Box Dimensions: 44.5x12.5x39.0cm |
|
Carton Box Dimensions: 47.0x42.0x40.0cm |
|
Packing: 3pcs/carton |
|
Accessories: |
|
Stand, AV Cable, VGA Cable, Remote Controller, Power adaptor, Specification, Warranty card |
With over eight years' industry experience, we Shenzhen HAMI Industry Co. Ltd specialize in LCD monitors/module for industrial or security applications, touch screen LCD monitors, as well as digital car CD changers. Our engineers can create one or two new items monthly and customize a sample on customers' specifications in one month.
LCD panels of our LCD monitors are sourced from South Korea and Japan which are in reliable quality, Our chips are sourced from the US and Taiwan. For smooth distribution, all of our products carry CCC, CE and FCC marks. To make you at ease, we can provide one-year warranties. All the appearance tools and mainboard solutions are developed by ourselves.
Our full product range for you:
7" to 42" LCD monitor, both high and low resolution, touch-screen and non-touch, plastics and metal case for industrial, CCTV, POS, Medical, Advertisement, stadium...etc use.
Small order accept, fast Delivery
We can turn out 8, 000 LCD products each month. Our target markets are located in Europe and the US. We accept orders as small as one unit, and deliver an order of 100 units within three to five days.
For more information, contact us today.
