| Prod Model: |
Dedi17-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
17inch |
| Resolution: |
1366*768 |
| Dimension: |
W575 * D509.6 * H1774.7 mm |
| Power Requirement: |
110~240V,50 / 60 Hz |
| Working Temperature: |
-10oc to 50oc |
| Storage Temperature: |
-20oc to 60oc |
| Color And Logo: |
Color and Logo |
| Warranty: |
One Year |
| Waterproof: |
IP55 |
| Feature: |
IR Touch |
| Screen Size: |
15-20 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Public Information Inquiry System |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
Product Description

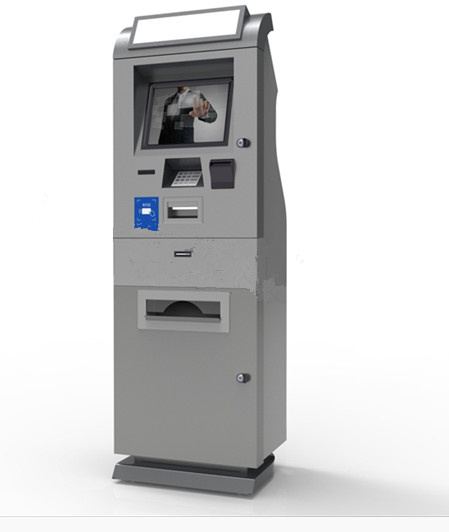

17inch Touch LCD Screen with Payment Kiosks
Brand : DEDE Kiosk / OEM / ODM
Model : Dedi17-001
Dimension : W575 * D509.6 * H1774.7 mm
Power Requirement : 110~240V,50 / 60 Hz
Working Temperature : -10ºC to 50ºC
Storage Temperature : -20ºC to 60ºC
Color and Logo : Custom-made
Warranty : One Year
Standard Configuration:
1. | LED Light Box |
2. |
17'' Touch Screen |
3. |
Bill Acceptor |
4. |
Receipt Printer |
5. |
Dot Matrix Printer |
6. |
Key Locks |
7. | Card Dispenser |
| 8. | RF Card Reader |
| 9. | PCI Encrypted Pinpad |
| 10. | Motorized Card Reader |
| 11. | Industrial PC |
12. |
Cooling Fan |
13. |
Cold Rolled / Stainless Steel Cabinet |
14. |
Bolt At The Bottom |
Wireless Connectivity
Other User Input Devices
Wheels For Easy Transportation
Onsite Installation
Custom / Off-the-shelf Software
Microsoft Windows / Linux / Android OS
Features:
High transparency / accuracy / durability, pure tempered glass, screen reacts to fingers with or without gloves, fingernail, gloved-hand, pen, swipe-card, or any other stylus activation, continues to work with liquids and other contaminants on the screen
All kiosks have security features like safety locks, properly tested to be anti-vandalism, anti-scratch, moisture-proof, anti-rust, anti-acid, anti-dust ,cooling and sound systems
