| Prod Model: |
ss-034 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Logo: |
OEM |
| Full HD 1080p: |
Support |
| WiFi, 3G, GSM/GPRS Network Control: |
Option |
| Surface Material: |
Acryl |
| Frame Material: |
Metal |
| Frame Shape: |
Can Be Customized |
| Frame Colour: |
Can Be Customized |
| Type: |
Advertising Players |
| Material: |
Metal |
Product Description

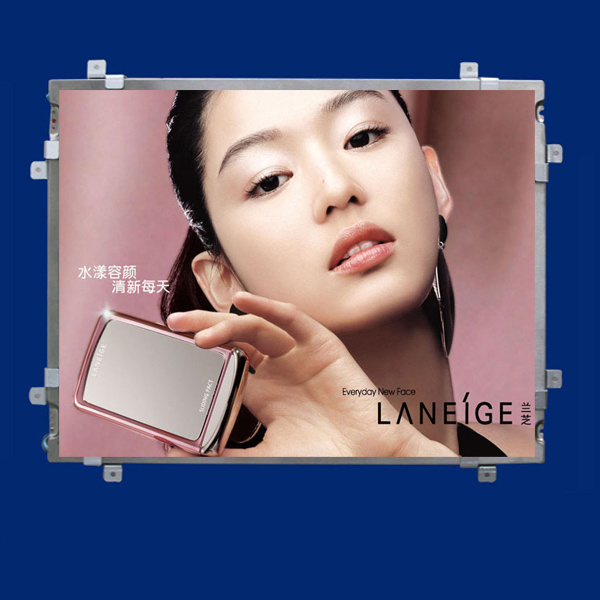

Panel Size: 17 inch real color LCD screen Aspect Ratio: 4: 3
Active Area: 337.92mm(H) x 270.336mm(W)
Max. Resolution: 1024 x 768
DOT Pitch: 0.264mm(H) X 0.264mm(W)
Number of Color: 16.7M
Brightness: 300CD/m2
Contrast Ratio: 450: 1
Responsive Time: 8ms
Panel Life: Above 50000 hours
Product Features and Technical Parameter:
- Outer shell is made by extra quality metal material, which is painted by powder-spray craftwork. Silver or black colour, back-fixing mode.
- With a protection layer of ultra-thin, high light tempered glass (thickness is 2mm) on the surface of the LCD screen.
- Full New LG or Samsung ( Made in Korea) A Grade Stardard LCD Panel.
- Support CF card, SD card and USB port and USB2.0 at one player; Which is used CF and SD card as the sources of programming, play high reliability; Support VGA port, AV port and TV tuner functionit.
- Safely locking system function to avoid flash memory card and advertising playing contents being taken away, also can be protected by inputing password.
- With USB update feature; Support functions between the card and card copying files (such as CF card to SD card, or SD to CF card etc. ); Support U-copy, conveniently and quickly updating target content, more details please visit user manual.
- Playing advertising program automatically and circular; Support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB and DIVX (5.0/6.0).
- Playlists support functions, can set different folders, copy all target files to those different folders, system would default to play your target file one by one.
- Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
- Build-in clock and calendar function in the system of player.
- Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.
- Support shockproof and dustproof function.
- Storage Temperature: -7 to 65 Celsius degree, Normal Working Temperature: -5 to 65 Celsius degree.
- Audio system: Build-in two speakers stereo, rated power is 2 x 5W,
- Support software updating function.
- Multi-language OSD: English, Chinese, French, German, Italian, Spanish or other languages.
Product Function Parameter:
- Support memory card capability: 32MB-16GB, such as CF card, SD card and U-disk etc.
- Support file playing format: MP4(AVI: DIVX/XVID), MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), MP3, JPG etc.
- Support video playing format: AUTO/NTSC/PAL is optional.
- Audio output: Stereo L/R, 5W*2, 8Ω
- Power supply: AC 110V - 240V, 50/60Hz.
Packing Information:
Packing list: One unit 17 inch LCD media player, 2PCS keys, 1PC English manual, 1PC remote controller.
Packing size: 650mm x 135mm x 475mm
Net weight: About 6.5kg
Gross weight: About 7.2kg
Applicable Fields:
Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
LCD Media Players are our knock-out products. Now we have such styles: Floor type LCD Media Players, Wall-mounted type LCD Media Players, Portable type LCD Media Players, and Vehicle-bone type LCD Media Players, with touchscreen/body sensor/3G/WIFI/GPRS/GSM optional functions. Our products are widely used in various fields of our daily life: In supermarkets, shops, hotels, office-buildings, railway stations, bus stations, airports, and even in taxis and buses.
We are a professional supplier of advertising display, with years of experience in research, develpment and selling, we can supply you products with good quality and reasonable price.
Shenzhen Shine Star Electronic Technology Co., Ltd specializes in the research and development of LCD products and was established in 2006 in HongKong.
In 2009, we founded our own plant in Shenzhen to produce LCD products autonomously. Since then we have been mainly researching, developing and manufacturing LCD Media Players, LCD Monitors, and LCD Televisions in sizes from 7 inch to 65 inch. With great quality, excellent service and increasing R&D, we have strengthened our competitiveness in home market & international market. Therefore we have established faith-worthy and long-term business relationships with many clients from both at home and abroad.
In order to meet market needs better, we have invested great financial resources and human resources. We have 5 senior engineers and 10 professional technicians. With their efforts and innovation, our products overcome many disadvantages of traditional LCD products such as outdated shape, high failure rate, and inconvenient operation.
Our business philosophy is: "More advanced technology, better quality and more thoughtful service". We sincerely hope to cooperate with you!
