| Prod Model: |
SS-127 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
OEM |
| Application: |
Bus/Car AD Player |
Product Description
Technical Parameter for LCD Panel:

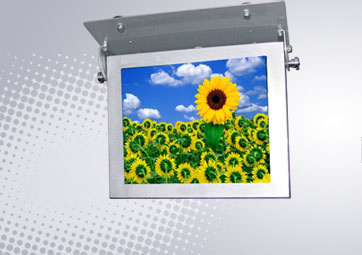

Panel Size: 17 inch real color LCD screen
Aspect Ratio: 4: 3
Active Area: 337.92mm(H) x 270.336mm(W)
Max. Resolution: 1024 x 768
DOT Pitch: 0.264mm(H) x 0.264mm(W)
Number of Color: 16.7M
Brightness: 300CD/m2 Contrast Ratio: 450: 1
Responsive Time: 8ms Panel Life: Above 50000 hours
Product Features and Technical Parameter:
- Outer shell is made by extra quality metal material, which is painted by powder-spray craftwork. Yellow, Silver or Black color, roof or back fixing mode.
- with a protection layer of high light-penetrating tempered glass(thickness is 2mm) on the surface of the LCD screen.
- LCD Panel Brand: Samsung, LG, Chi Mei, AUO and HSD etc., A Class 335 standard, full new and factory original packing screen.
- with CF card slot, SD card slot, USB2.0 port and Mini-USB port, at one player, and using CF and SD card as the source of programming, play high reliability. VGA and AV port are available under customers' special request.
- Safely locking system function insures the safety of flash memory Card, advertising playing content and input password.
- with USB update feature; Support functions between the card and card copying files (such as CF card to SD card, or SD to CF card etc. ); Support U-copy, conveniently and quickly updating target content, more details please refer to user manual.
- Playing advertising program automatically and circularly; Support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB, WVM and DIVX (5.0/6.0).
- Playlists support functions, can set different folders, copy all target files to those different folders. Under System default, target files will play one by one.
- Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
- Build-in clock and calendar function in the system of player.
- Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.
- Support shockproof and dustproof function.
- Storage Temperature: -17 to 65 Celsius degree, Normal Working Temperature: -10 to 65 Celsius degree.
- User can select audio system according to bus, one way is to build-in two speakers stereo, rated power is 2 x 5W; The other is to build-in audio amplifier system, and then the audio cable of the player will be directly connected with the speaker of bus.
- Support software updating function.
- Multi-language OSD: English, Chinese, French, German, Italian, Spanish or other languages.
Product Function Parameter:
-Support memory card capability: 32MB-16GB, such as CF card, SD card and U-disk etc.
-Support file playing format: MP4(AVI: DIVX/XVID), MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), and MP3, JPG etc.
-Support video playing format: AUTO/NTSC/PAL is optional.
-Audio output: Stereo L/R, 5W*2, 8Ω
-Power supply: DC 6V -- 36V, normally, it is 12V or 24V.
Packing Information:
Packing list: One unit 17 inch LCD bus player, 2PCS keys, 1PCS English manual, 1PCS remote controller.
Packing size: 530mm*440mm*180mm
Net weight: About 6.5kg Gross weight: About 7.8kg Volume Weight: 6.94kg
Applicable Fields: Various forms of transportation, like bus, train, subway etc.
LCD Media Players are our knock-out products. Now we have such styles: Floor type LCD Media Players, Wall-mounted type LCD Media Players, Portable type LCD Media Players, and Vehicle-bone type LCD Media Players, with touchscreen/body sensor/3G/WIFI/GPRS/GSM optional functions. Our products are widely used in various fields of our daily life: In supermarkets, shops, hotels, office-buildings, railway stations, bus stations, airports, and even in taxis and buses.
We are a professional supplier of advertising display, with years of experience in research, develpment and selling, we can supply you products with good quality and reasonable price.
Shenzhen Shine Star Electronic Technology Co., Ltd specializes in the research and development of LCD products and was established in 2006 in HongKong.
In 2009, we founded our own plant in Shenzhen to produce LCD products autonomously. Since then we have been mainly researching, developing and manufacturing LCD Media Players, LCD Monitors, and LCD Televisions in sizes from 7 inch to 65 inch. With great quality, excellent service and increasing R&D, we have strengthened our competitiveness in home market & international market. Therefore we have established faith-worthy and long-term business relationships with many clients from both at home and abroad.
In order to meet market needs better, we have invested great financial resources and human resources. We have 5 senior engineers and 10 professional technicians. With their efforts and innovation, our products overcome many disadvantages of traditional LCD products such as outdated shape, high failure rate, and inconvenient operation.
Our business philosophy is: "More advanced technology, better quality and more thoughtful service". We sincerely hope to cooperate with you!
