| Prod Model: |
GH1602-2504 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Construction: |
COB |
| Display Type: |
Stn |
| Voltage: |
3.3V, 5V |
| Operating Temperature (Degree Celsius): |
-20 to 70 Degree Centigrade |
| Storage Temperature (Degree Celsius): |
-30 to 80 Degree Centigrade |
| Viewing Direction: |
6 O'clock |
| DOT Matrix: |
16X2 |
| Viewing Area: |
64.5*13.8 mm |
| Active Area: |
55.45*10.75 mm |
| Outline Dimension: |
80.0*36.0*13.0 mm |
| Usage: |
Test LCM |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Character |
| Response Time: |
5ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
| Touch Screen Type: |
No Touch |
Product Description
Specification:

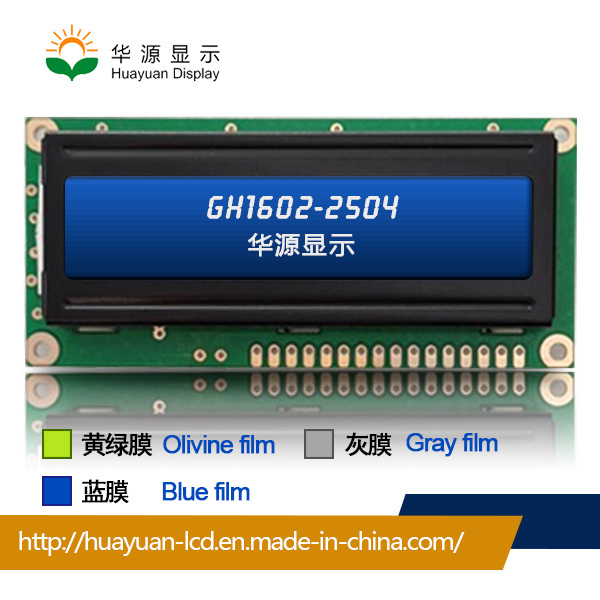

| Model: | GH1602-2504 |
| Construction | COB |
| Display Type | STN |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20ºC~70ºC |
| Storage Temperature (degree Celsius) | -30ºC~80ºC |
| Viewing Direction | 6:00 |
| Dot Matrix | 16x2 |
| Viewing Area | 64.5*13.8 |
| Active Area | 55.45*10.75 |
| Outline Dimension | 80.0*36.0*13.0 |
| Controller | SPLC780D |
| Backlight | LED,White |
