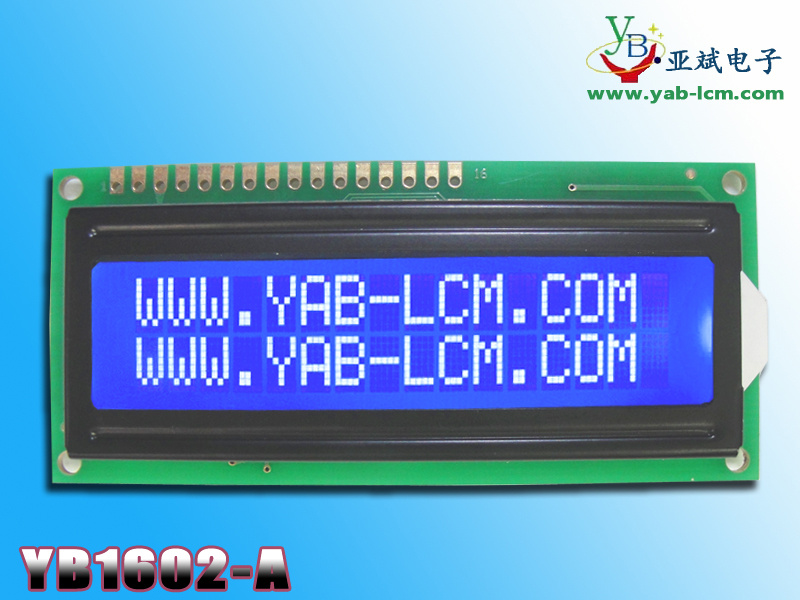

16X2 Character LCD Display

Prod Model:	YB1602A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Format:	16X2 Dots
Outline Dimension:	80(W)X36(H)X12(T)Mm
Visual Area:	64.5×16mm
Active Area:	55.45(W)X10.75(H)Mm
Character Size:	2.95X5.15mm
Diagonal Size:	3.0"
IC Package:	COB
IC Or Equivalent:	Splc780c/Hs44780/Ks0066 or Equivalent
Appearance:	White on Blue/Black on Yellow Green/White on Grey
Power Supply(Typ):	3.3V/5V
Usage:	Small-sized LCM
Digital LCD Module Type:	Counting Module
Type:	LCM
Response Time:	2ms
Display Technology:	COB
LCD Drive Mode:	Static Drive LCD Module
Customized:	Customized

Product Description

16X2 Character LCD Display 1.Product Description Manufacturer YaBin Series Number YB1602-A Display Format 16x2 Dots Outline Dimension 80(W)x36(H)x12(T)mm Visual Area 64.5×16mm Active Area 55.45(W)x10.75(H)mm Character Size 2.95x5.15mm Diagonal Size 3.0" Dot (Pixel) Size 0.55X0.60mm IC Package COB IC or Equivalent SPLC780C/HS44780/KS0066 or Equivalent Interface 6800 8-bit/4-bit Parallel Interface parallel Display Type STN/FSTN Sunlight Readable No Touch Panel Optional No Contrast Ratio(Typ) No Viewing Direction 6:00 LED Backlight Color Blue /Yellow Green /Gray Appearance White on Blue/Black on Yellow Green/White on Gray Power Supply(Typ) 3.3V/5V Backlight Current (Typ) 15mA Operating Temp -20ºC~70ºC Storage Temperature -30ºC~80ºC If accept customized Yes RoHS Compliance Yes 2. Overall dimensions: 3.Interface pin connect: 4.Detailed Images 5. Packaging & Delivery       Packaging Detail:       1>.Cartons, Cupboard, EPE, Blister Tray.       2>.About how many products in one package, it is up to the size of products.       3>.according to customer request.      Delivery Detail: 7-10 days 6. Product Range   According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, TN and STN lcd display module,character and graphic lcd module,industrial lcd,we can match all accessories which inclusive of driver board,LED backlight. 1>.We provide a verity of lcd glass and lcd moudle, Includeing TN LCD,HTN,STN,FSTN,LCD,COB,COG ( 8   Digital LCM ) 2>.Character Module: Whole product series for 8x2, 16x1, 16x2,16x4,20x2,20x4,24x2,40x2,40x4 characters 3>. Graphic Module: Including 64x32 dots,122x32 dots,128x32 dots,128x64 dots,144x32dots,192x32 dots,      192x64 dots,160x80 dots,240x128 dots, 320x240 dots series. 4>. LCD Display Module, TFT,OLED. 7. Our advantages 1>.Skilled technology and strict for quality. 2>.Powerful products design and develop. 3>.Experienced sales team 4>.Prompt delivery and service 5>.Low cost solutions and high quality product. 6>. Backlight Replaceable 7>. LED backlight 8>. Wide view angle 9>. High Quality 10>. Produced in our own factory 11>. Reasonable Price 8. OEM Service OEM is accepted Customized LCD Module we are welcome Various LCD Display Mode Available Various LED Backlight Color Available Various Temperature Range Available 9. FAQ 1>. Long Term Continuity Supply Warranty We understand you probably worry whether we still offer the display after your long development time.EastRising gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller IC may stop the production,we'll try our efforts to find the completely compatible ones.If the equivalent is unavailable, we'll make the new tooling and use the most similar IC as replacement.So you don't have to worry even your research time is very long. 2>. What is covered under warranty and for how long? All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 2 days of receipt. 3>. What is not covered? Warranty is void and no repair or replacement is granted under the following conditions: 3-1>. Evidence of mechanical stress to parts including but not limited to. 3-2>. Damaged or broken glass or touch screen. 3-3>. Damaged conductors/components. 3-4>. Damaged polarizer. 3-5>. Damaged mounting holes. 3-6>. Parts tamper ed with by grinding, engraving, drilling, cutting or applying coatings of any kind. 3-7>. Addition or removal of components. 3-8>. Evidence of damage caused by applying incorrect voltage. 3-9>. Evidence of damage caused by operating outside of specified temperature range. 3-10>.Evidence of damage caused by electrostatic discharge (ESD). 4>. What if I have a defective product under warranty? We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or refurbished product. "Refurbished" means a component that has been returned to its original specifications. We do not give refunds, credit memos. 5>. How do I make a warranty claim? For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.(Please refer to our "Return"policy for more detail.)
