| Prod Model: |
GH1602-2301 |
| Model: |
Gh1602-2301 |
| Gh1602-2201: |
Cog |
| Display Type: |
Stn, Negative or Positive, Transmissive |
| Outline Dimension: |
65.0 X 27.7 X 2.85mm |
| Controller: |
Nt7605 |
| Backlight: |
LED |
| Viewing Area: |
61 .0 X 1 5.7mm |
| Data Bus: |
8 Bit |
| DOT Size: |
0.55 X 0.6mm |
| Screen Size: |
2.3"(Diagonal) |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Infrared |
| Type: |
Character |
| Response Time: |
10ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COG |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |

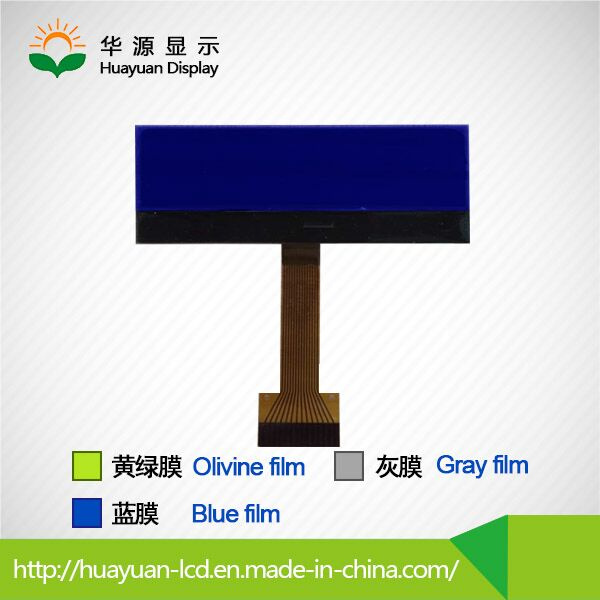

Product Description
Quick Details
Place of Origin: China (Mainland)
Brand Name: Huayuan
Model Number: GH1602-2301
Type: Character
Construction: COG
Display Type: STN
Dot Matrix: 16x2
Viewing Area: 61 .0 x 1 5.7mm
Outline Dimension: 65.0 x 27.7 x 2.85mm Max
Controller: Nt7605
Data bus: 8 bit
Temperature range Operation: -20 oC ---- +70oC
Dot size: 0.55 x 0.6mm
Screen size: 2.3"(Diagonal)
| Model: | GH1602-2301 |
| Construction | COG |
| Display Type | STN |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20°C~70°C |
| Storage Temperature (degree Celsius) | -30°C~80°C |
| Viewing Direction | 6:00 |
| Dot Matrix | 16x2 |
| Viewing Area | 61 .0 x 1 5.7mm |
| Active Area | 56.2 x 11 .04mm |
| Outline Dimension | 65.0 x 27.7 x 2.85mm Max |
| Controller | NT7605 |
| Backlight | LED,White |
| FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2016 electronics exhibition in Munich, Germany. |
| Related products: |
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized. |
| Application: |
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics. |
| Contact Us: Send inquiry to us to get newest price and information. |
| Tel: +86-731-28668968 Phone:+86-18390814654 |
| Fax: +86-731-28660280 |
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
