| Prod Model: |
GH160160-3401 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS and ISO 9001:2008 Certification |
| ODM: |
OEM Product Design/Production |
| Model: |
Gh160160-3401 |
| Display Type: |
FSTN |
| Operating Temperature (Degree Celsius): |
-25~70 |
| Viewing Direction: |
06:00 |
| Outline Dimension: |
83.80*76.50*8.20max |
| Controller: |
Uc1698 |
| Backlight: |
LED,White |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Infrared |
| Type: |
Graphic |
| Response Time: |
1ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
FSTN/CSTN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |

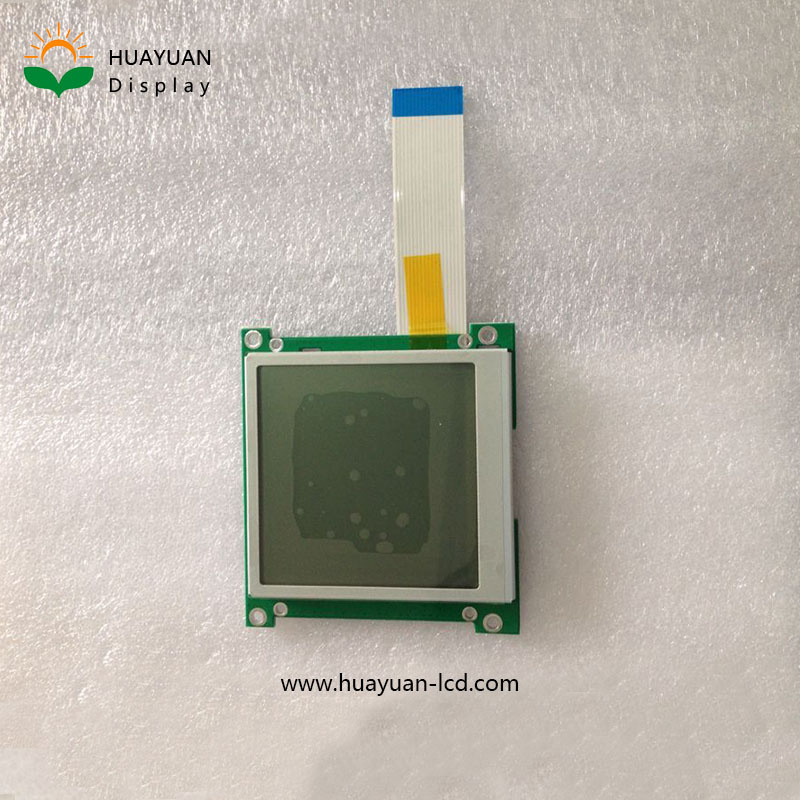

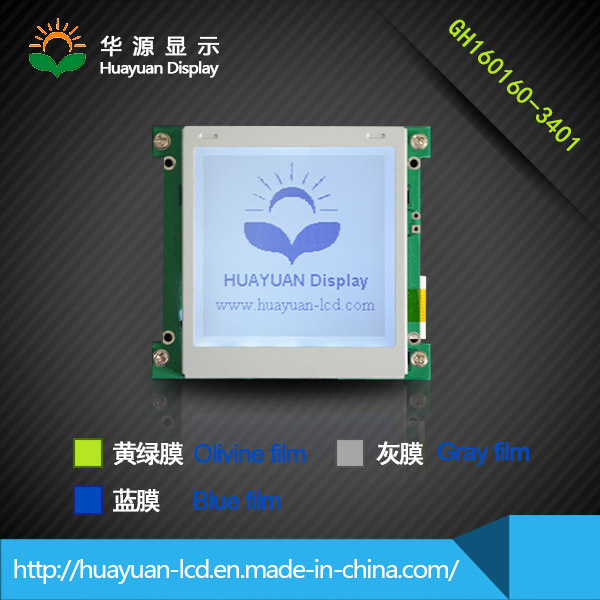

Product Description
Model:GH160160-3401
ConstructionCOG
Display TypeFSTN
Operating Voltage (VDD)3.3V
Backlight Voltage(VBL)3.3V,5V
Operating Temperature (degree Celsius)-25~70
Storage Temperature (degree Celsius)-30~80
Viewing Direction6:00
Dot Matrix160*160
Viewing Area60.00*60.00
Active Area54.38*54.38
Outline Dimension83.80*76.50*8.20MAX
ControllerUC1698
BacklightLED,White
| Model: | GH160160-3401 |
| Construction | COG |
| Display Type | FSTN |
| Operating Voltage (VDD) | 3.3V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -25~70 |
| Storage Temperature (degree Celsius) | -30~80 |
| Viewing Direction | 6:00 |
| Dot Matrix | 160*160 |
| Viewing Area | 60.00*60.00 |
| Active Area | 54.38*54.38 |
| Outline Dimension | 83.80*76.50*8.20MAX |
| Controller | UC1698 |
| Backlight | LED,White |
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
