| Prod Model: |
E16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Channel: |
16CH |
| Warranty: |
3 Years |
| Certification: |
CE Proved |
| Phantom Power: |
48V |
| Effect: |
16 Kinds of Simulation Dsp |
| Application: |
Commercial |
| THD: |
0.005%-0.01% |
| Noise: |
<95dB |
Product Description

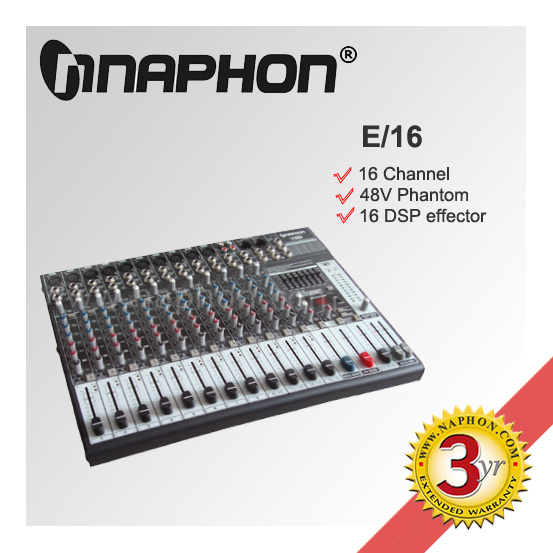

Mixing Console
FEATURES
~48V Phantom Power
~4 Mono Channel, 4stereo Channel with 2 Aux return and send
~3 band EQ for each channel
~All mono channel with lowcut
~Feedback 7band stereo graphic EQ
~Ruduce noice function for karaoke
~16 kinds of anolog DSP effector
~2 groups 3 color 10 band level display
~Dual 7 band master control EQ
Model |
E6 |
E8 |
E12 |
E16 |
Channel MIC/Line |
6ch |
8ch |
12ch |
16ch |
THD |
Less or equal to 0.05% |
Less or equal to 0.05% |
Less or equal to 0.05% |
Less or equal to 0.05% |
Frequency Response |
5Hz-50KHz +/-3db |
5Hz-50KHz +/-3db |
5Hz-50KHz +/-3db |
5Hz-50KHz +/-3db |
S/N Ratio |
103dB |
103dB |
103dB |
103dB |
Max Output |
4V Max |
4V Max |
4V Max |
4V Max |
Input Sensitivity |
Mic-60db; Line-40db; Aux in-40db; Effect-40db; Tape in-40db |
Input EQ |
HI:+/-15db/12KHz; MID:+/-15db/250Hz-6KHz; LOW: +/-15db/60Hz; |
Phantom Power |
48V |
48V |
48V |
48V |
Effector |
16 kinds of anolog DSP |
16 kinds of anolog DSP |
16 kinds of anolog DSP |
16 kinds of anolog DSP |
Power Consumption |
30W |
30W |
30W |
30W |
Dimensions |
270 x 360 x 160mm |
315 x 410 x 160mm |
420 x 430 x 170mm |
535 x 430 x 170mm |
Gross Weight |
7.00KGS |
8.00KGS |
9.00KGS |
10.50KGS |
NAPHON MUSIC, based in Shenzhen, is a company specialized in the design and production of quality professional audio equipments. Its package of products are widely used in music venues, theatres, houses of worship, sporting events and much more.
NAPHON MUSIC has a major commitment to produce the most accurate & reliable product available. It maintains an extensive research and development division which is constantly looking for ways to improve the performance, value and reliability of products, introduced the Surface Mounting Technology, proudly launched its new MC series of DSP Mixers and SA series of Amplifiers. With a stringent quality control in production, it can arrive at an ever higher standard of quality for full range of products. NAPHON MUSIC had got ISO9001: 2000 International Standard Approval and CE approval.
NAPHON MUSIC always focus on tomorrow, embracing severe construction standards and the on-going aim to provide the best sound and most outstanding customer service you've ever experienced.
