| Prod Model: |
8 inch TFT157A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Size: |
8.0 Inch(Diagonal) |
| Driver Element: |
a-Si TFT Active Matrix |
| Resolution: |
800 X 3(RGB) X 480 |
| Display Mode: |
Normally White, Transmissive |
| DOT Pitch: |
0.0736(W) X 0.2070(H) mm |
| Active Area: |
176.64(W) X 99.36(H) mm |
| Module Size: |
192.8(W) X 116.9(H) X 6.4(D) mm |
| Color Arrangement: |
RGB-Stripe |
| Screen Size: |
≤17" |
| Application: |
Taxi |
| Aspect Ratio: |
16:10 |
| Feature: |
Touch Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
6ms |
| 3D: |
3D |
| Optimum Resolution: |
800X480 |
| Interface Type: |
RGB |
Product Description

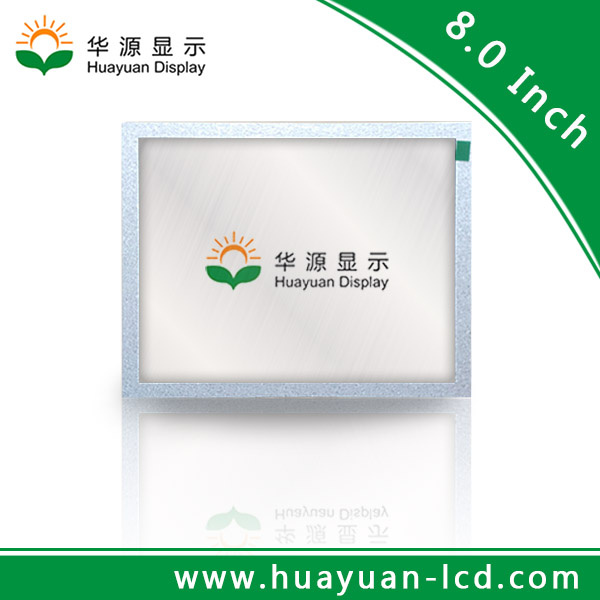

16: 9 8 Inch laptop lcd touch Screen
1LCD size 8.0 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 800 X 3(RGB) X 480
4 Display mode Normally White, Transmissive
5 Dot pitch 0.0736(W) X 0.2070(H) mm
6 Active area 176.64(W) X 99.36(H) mm

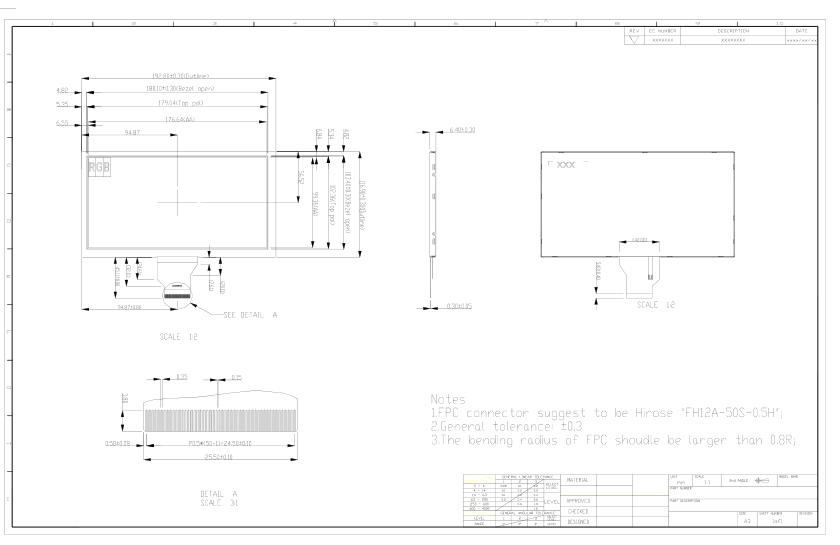

7 Module size 192.8(W) X 116.9(H) X 6.4(D) mm Note 1
8 Surface treatment Anti-Glare
9 Color arrangement RGB-stripe
10 Interface Digital
11Backlight Power consumption TBD
12
Panel Power consumption TBD2 Gerneral SpecificationPlace of Origin:Guangdong China (Mainland
Brand Name:Huayuan
Model Number: TFT157A
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
