| Prod Model: |
MT8150X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

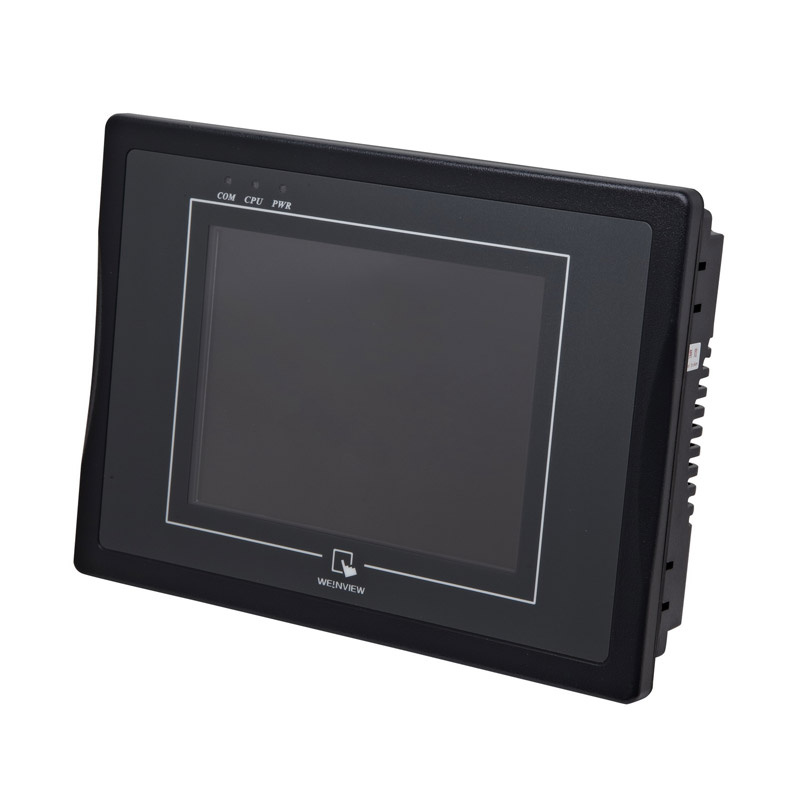

| 15inch Weintek Touch Screen: |
Mt8150X |
| Type: |
TFT |
| Feature: |
Touch Display |
| Interface Type: |
HDMI |
| Screen Type: |
Capacitive |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
| Screen Size: |
15-20 Inches, 15inch |
| Aspect Ratio: |
16:9, 4:3 |
| Application: |
Personal Communication System, Graphic Design |
Product Description
2000 Pairs Sells per Month
5 pairs MOQ
48-72 hours delivery after received money
1. HMI (Human Machine Interface) touch screen, touch panel monitor, display
2. Display: 15" TFT Widescreen; Resolution 1024x768,
| Display | | Display | 15" TFT LCD | | Brightness (cd/m2) | 350 cd/m2 | | Contrast Ratio | 550:1 | | Color | 65536 | | Resolution (W x H) | 1024 x 768 | | Back Light | CCFLx2 | | Back Light Life Time | 50,000 hr. |
|
| Processor | 32bit CISC CPU 500 MHz |
| Enclosure | Aluminum |
| Touch Panel | | Touch Panel Type | 4 wires resistive type |
|
| Memory | | Storage | 256MB D.O.M | | RAM (RAM) | 256MB DDR 400MHz |
|
| I/O ports | | SD Card Slot | Yes | | USB Host | USB 2.0 Full Speed Host port x 2 | | USB Client | N/A | | EthernetPort | 10/100 Base-T | | COMPort | COM1(RS-232/RS-485 2W/4W), COM2(RS-232), COM3(RS-232/RS-485 2W) | | VideoInput Port | NTSC/PAL RCA x 2 (V2 only) | | Audio | Line Out x1 / MIC x1 |
|
| Power | | Input Power | 24 ±10% VDC | | Power Consumption | 1.6A@24VDC |
|
| RTC | Built-in |
| Specification | | Panel Cutout (W x H) | 352x279mm | | Weight (KG) | Approx 2.9kg |
|
| Certification | | CE | Complies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards | | UL | E248297 |
|
| Operation | | Voltage Resistance | 500 VAC (1 min) | | Isolation Resistance | Exceed 50MΩ at 500 VDC | | Vibration Endurance | 10 to 25 Hz (X,Y,Z direction 2G 30minutes) | | Protection Structure | IP65 front panel (O ring seal) | | Storage Temperature | -20°~60°C (-4°~140°F) | | Operating Temperature | 0°~50°C (32°~122°F) | | Operation Humidity | 10-90% RH (non-condense) |
|
About US
YUEQING CITY RUIHUA CABINET WHOLE SET EQUIPMENT is a professional manufacturer of low voltage electrical products in South China.
Our company is committed to design, production and sale of a series of ozone generator, air pump, PLC, rotary encoder, HMI, sensor, switches,
lights, meter and much more other electrical components. And exports various type of electrical appliances to different countries.
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. CNRUIHUA people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gotten through CE, RoHs standard.
About Payment
we provided Trade Assurance service
we also accept payment by T/T; Western Union, ESCROW, Paypal, money gram
We Provide OEM Services
We can do OEM for your brand (print your logo ). And we can make product according to your design .The processing method ,the size ,the quality etc ,will all follow your requirement .
We do OEM for a lot of the world's leading brands ,we have rich experience in production ,we have molds in variety ,and we have products strict quality control system.
We have a strong r&d team, can according to the sample you provided, manufacture the same product as your sample
Yueqing Ruihua Cabinet & Whole Set Equipment Co., Ltd. which is established in 2005. The company is located in Wenzhou, which sites on the coast line of Zhejiang province. Wenzhou is a modern and highly civilized city, famous for healthy industry environment. At the same time, the convenient transportation system will as well be a great advantage for any project involving international shipping and delivery.
Our company is a specialized manufacturer with over 20 series and more than 2, 000 specifications, and exports various type of electrical appliances to different countries, such as Ozone genertator & air purifier, distribution boxes, wall sockets, floor sockets, PLC, encoders, inverters, motors, HMI, sensors, switches, panel meters, and other electrical components.
Today, Ruihua's electrical products have already been distributed to Russia, Europe, South America, and the Middle East. We guarantee the high standard of our products, so as reliability of producing and supplying products. Our products have been approved by CCC, CE, UL and RoHS, certificates. The company has also been recognized by ISO9001. with the years successfully experiences, we believe, we can not only produce and supply the good products, but also with professional services and efficiency.
We value the businesses in real earnest. Building a highly trust worth "Zhejiang merchant culture" is our principle. We wish to build up a long-term business relationship both domestically and internationally, and expect to trade with the clients on the basis of good credit and mutual benefit.
