| Prod Model: |
MT8121x |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| HMI: |
Mt8121X |
| Application: |
Graphic Design |
| Aspect Ratio: |
4:3 |
| Feature: |
Touch Display |
| Optimum Resolution: |
1920x1200 |
| Type: |
TFT |
| Response Time: |
2ms |
| 3D: |
3D |
| Interface Type: |
HDMI |
| Screen Size: |
12.1inch |
Product Description

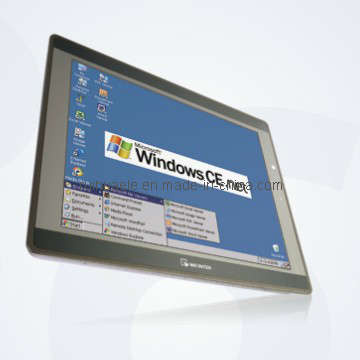

MT8121X
2000 Pairs Sells per Month
5 pairs MOQ
48-72 hours delivery after received money
| Display | | Display | 12.1" TFT LCD | | Brightness (cd/m2) | 400 cd/m2 | | Contrast Ratio | 500:1 | | Color | 65536 | | Resolution (W x H) | 800 x 600 | | Back Light | CCFLx2 | | Back Light Life Time | 50,000 hr |
|
| Processor | 32bit CISC CPU 500 MHz |
| Enclosure | Plastic |
| Touch Panel | | Touch Panel Type | 4 wires resistive type |
|
| Memory | | Storage | 256MB D.O.M | | RAM (RAM) | 256MB DDR 400MHz |
|
| I/O ports | | SD Card Slot | Yes | | USB Host | USB 2.0 Full Speed Host port x 2 | | USB Client | N/A | | EthernetPort | 10/100 Base-T | | COMPort | COM1(RS-232/RS-485 2W/4W), COM2(RS-232), COM3(RS-232/RS-485 2W) | | VideoInput Port | NTSC/PAL RCA x 2 (Optional) V2 only | | Audio | Audio Line Out x 1 / Mic In x 1 |
|
| Power | | Input Power | 24 ±10% VDC | | Power Consumption | 1.25A@24VDC |
|
| RTC | Built-in |
| Specification | | Panel Cutout (W x H) | 305x231mm | | Weight (KG) | Approx 2.1kg |
|
| Certification | | CE | Compilies with EN 55022:1998+A1: 2000+A2:2003, EN 55024:1998+A1:2001+A2:2003 standards | | UL | E248297 |
|
| Operation | | Voltage Resistance | 500 VAC (1 min) | | Isolation Resistance | Exceed 50MΩ at 500 VDC | | Vibration Endurance | 10 to 25 Hz (X,Y,Z direction 2G 30minutes) | | Protection Structure | IP65 front panel (O ring seal) | | Storage Temperature | -20°~60°C (-4°~140°F) | | Operating Temperature | 0°~50°C (32°~122°F) | | Operation Humidity | 10-90% RH (non-condense) |
|
