| Prod Model: |
FP6000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Switching Power Amplifier |
| Output Power: |
4CH X 700 Watts |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Sound Channel: |
4 CH |
Product Description

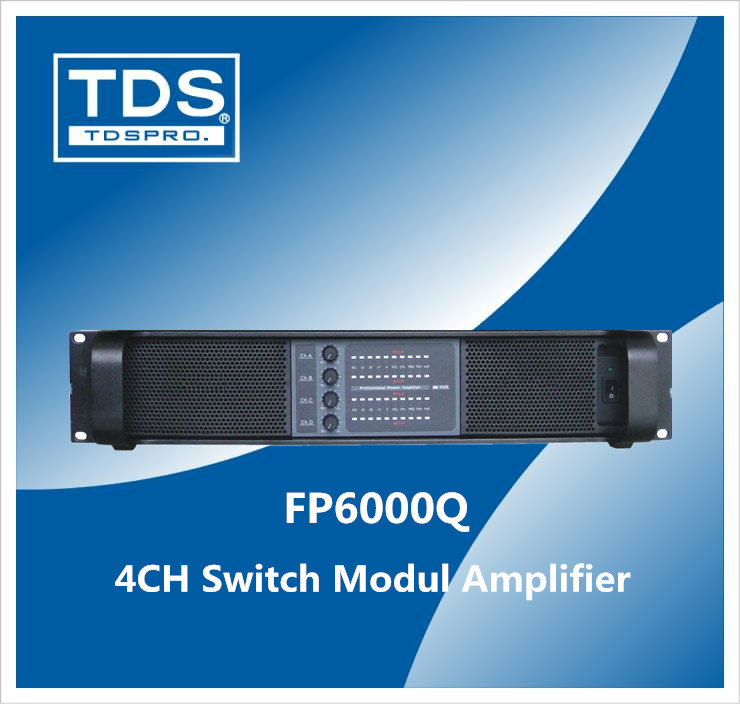

1500W 4 CH Pro Power Mixer Audio Amplifier (FP6000Q) For Portable Speakers
1>. 4ch x 700watts switching power amplifier.
2>. Lightweight power amplifier.
3>. The products warranty goes to 2 years.
| Specification |
|
| Model | FP6000Q |
| 8ohm Stereo Power (RMS) | 4 x 700 watts. |
| 4ohm Stereo Power (RMS) | 4 x 1300 watts. |
| 2ohm Stereo Power (RMS) | 4 x 1550 watts. |
| 8ohm Bridge Power (RMS) | 2 x 2600 watts. |
| 4ohm Bridge Power (RMS) | 2 x 3100 watts. |
| Frequency Response | 10Hz -- 30KHz +/-3dB. |
| THD | < 0.1% |
| S/N Ratio(dB) | 110dB |
| Voltage Gain | 23,26,29,32,36,38,41,44dB |
| Input Connector | 3 pins. XLR |
| Input Impadance | 20K ohm Balance / 10K ohm Imbalance |
| Output Connector | Speakeon & conntact pins. |
| Operating Voltage | 200V - 240V / 50-60Hz. |
| Dimension (W x H X D) | 483 x 88 x 377 |
| Net Weight (kg) | 13 kg |
| Gross Weight (kg) | 15.5 kg
|
Why choose TDS products. 1. Raw material quality gurantee, ensure the products durability.The speaker cabinet adopt 18mm birch plywood(except MP series). The woofer adopt UKM, 7DF paper cone. SUZUKI coil used in voice coil. 2. Delivery the products on time.For normal speakers we can delivery out within 12 days. The line array system delivery out with in 18 days. 3. After-sale service commitmentWhen the products had the technical problems during usage, we will give timely answer.We offer 1 year warranty for speaker and 2 years warranty for amplifiers. We will send the spare parts at the first time. 4. TDS PRO AUDIO FACTORY is a factory who willing to last 99 years old. Now we have more than 80 customers in China and export to 20 countries. Our products export to Australia, Canada, Italy, Indonesia, India, Korea, Kuwait, Lebanon, Mexico, Malaysia, Myanmar, Mongolia, Spain, Singapore, South Africa , Senegal, Thailand, Uruguay, USA, Vietnam. We still have a long way to go in the next 91 years. We hope to go with you together in the future.
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
