| Prod Model: |
ARCS15 |
| Components: |
1X15" + 1X1.4" |
| Finish Color: |
Black or Dark Brown |
| Crossover: |
Passive |
Product Description

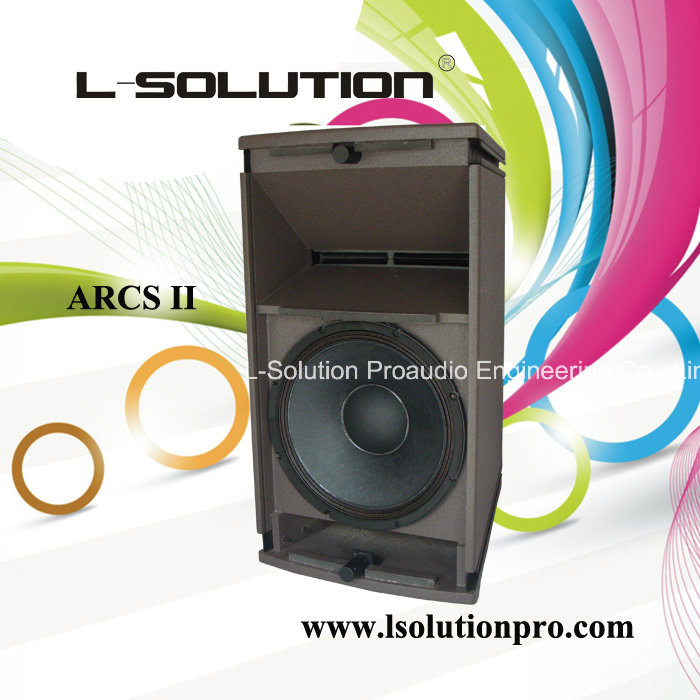

1x15" outdoor powerfull line array.
Long through line array system
Can be make in OEM and our OWN brand.Also the front grill can make according your design too.You can choose NEO or Ferrite driver according your budget .
All line array test 6 hours before packed.
The detail spec as follows:
Model: ARC15 Line array Passivo
Frequency Response: 50Hz-20KHz
Vertical Cover Angle : 60o x 22.5o nominal (horizontal x vertical)
Max SPL a 1 m: 139dB
System Sensitivity (1w @ 1m): 98dB
Power Rating(Continuous / Peak): 700W/2000W
Recommend Amps: 800-1200W into 8ohms
LF Driver: 1X 15"; 99.5mm voice coil, Neodymium
HF Driver: 1x 3" (75mm voice coil ) neodymium driver.
Nominal Impedance: 8ohm
Enclosure: 18mm A class plywood and Environment protect finishing(dark grey brown colour).
Good quality rigging hardware and front black grill with 8mm foam.
Input Connectors: 2XNL4
Dimensions (H x W x D): For shipping 439x820x652mm
N.W/G.W: 48 /50KG
