| Prod Model: |
THR08UB/THR10UB/THR12UB/THR215UB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PA Speaker Origin: |
Ningbo, China |
| PA Speaker Brand: |
Tonoch, ODM, OEM |
| PA Speaker Power(RMS): |
200W+45W |
| PA Speaker Spl(1W/1m): |
115±2 Db |
| PA Speaker Freq Response: |
30Hz-20kHz |
| PA Speaker Lf: |
1×15" Woofersv |
| PA Speaker Hf: |
1×1" Driver |
| PA Speaker Power Supply: |
Power Supply |
| Amplification Type: |
Active |
| Speaker Material: |
Plastic |
| Usage: |
Computer |
| Adjusting Method: |
Knob |
| Structure: |
Floorstanding Speaker |
| Function: |
Bluetooth |
| SNR: |
>100dB |
Product Description

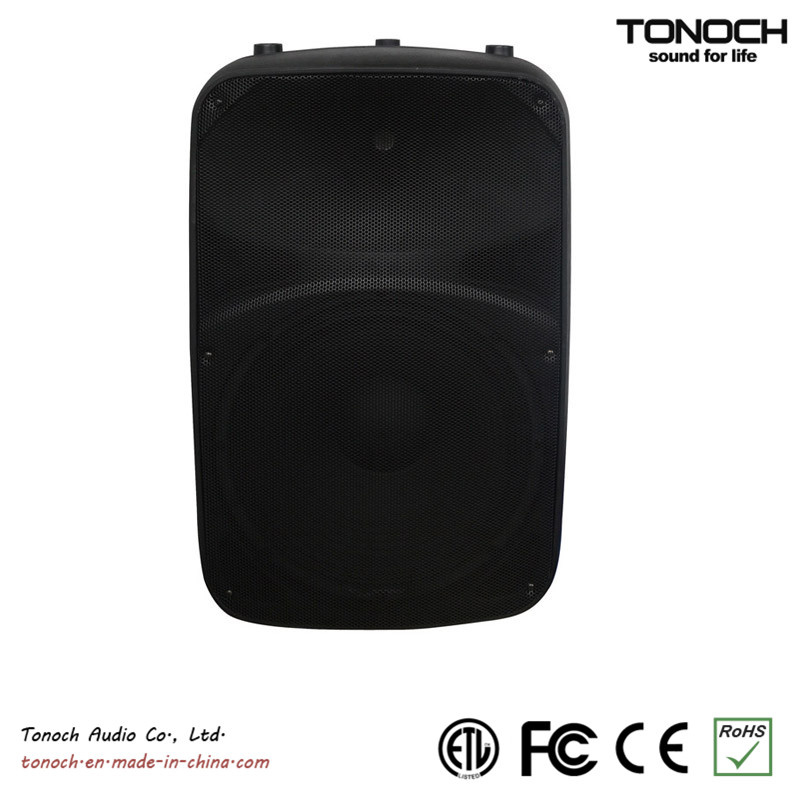

15" 2 way Active Speaker Box PA Speaker with Speakon
INTRODUCTION:
TH Family plastic speaker original design by Tonoch engineering and design team, with the high power design that can widely used on diversiform studio, movie studio, news promulgate center, video education center, large stage, playhouse music and so on.
FEATURES:
1. High density and light weighted plastic enclosure
2. Can be equipped with 5 band EQ, light.
3. LED MP3 player with the model of USB/SD/FM/RC
4. Adjustable Bass and Treble that easy to operate
5. Range voltage input can be chose.
| Model | THR08UB | THR10UB | THR12UB | THR15UB | THR215UB |
| Discription | 8" 2 Way Active Speaker
+ Class AB Bi-Amp + Folder Mp3 Player +
USB/SD Slot +
FM + Bluetooth | 10" 2 Way Active Speaker
+ Class AB Bi-Amp + Folder Mp3 Player +
USB/SD Slot +
FM + Bluetooth | 12" 2 Way Active Speaker
+ Class AB Bi-Amp + Folder Mp3 Player +
USB/SD Slot + iPod Dock + 5 Band EQ + Bluetooth | 15" 2 Way Active Speaker
+ Class AB Bi-Amp + Folder Mp3 Player +
USB/SD Slot + iPod Dock + 5 Band EQ + Bluetooth | 2×15" 2 Way Active Speaker + Class AB Bi-Amp + Folder Mp3 Player +
USB/SD Slot + iPod Dock + 5 Band EQ + Bluetooth |
| Power(RMS) | 100W+20W | 130W+20W | 150W+45W | 200W+45W | 300W+45W |
| SPL(1W/1m) | 108±2 dB | 115±2 dB | 108±2 dB | 115±2 dB | 120±2 dB |
| Freq response | 20Hz-20KHz | 30Hz-20KHz | 20Hz-20KHz | 30Hz-20KHz | 20Hz-20KHz |
| Input/ output connectors | XLR/JACK/RCA | XLR/JACK/RCA | XLR/JACK/RCA | XLR/JACK/RCA | XLR/JACK/RCA |
| LF | 1×8" woofer | 1×10" wooferSV | 1×12" woofer | 1×15" wooferSV | 2×15" wooferSV |
| HF | 1×1" driver | 1×1" driver | 1×1" driver | 1×1" driver | 1×1" driver |
| Power supply | 230V/110V | 230V/110V | 230V/110V | 230V/110V | 230V/110V |
| Weight(G.W.) | 16kgs | 18kgs | 16kgs | 18kgs | 31kgs |
| Package(W×D×H) | 430×360×635mm | 485×400×740mm | 430×360×635mm | 485×400×740mm | 485×400×1160mm |
| Container | 20"GP 40"GP 40"HQ | 20"GP 40"GP 40"HQ | 20"GP 40"GP 41"HQ | 20"GP 40"GP 42"HQ | 20"GP 40"GP 43"HQ |
| 310pcs 620pcs 750pcs | 200pcs 400pcs 475pcs | 310pcs 620pcs 750pcs | 200pcs 400pcs 475pcs | 125pcs 250pcs 300pcs |
|
Other functions and options you can choose:
Active speaker, passive speaker, mono - amp, bi - amp, digital amp, analog amp, LED mp3 player, LED mp3 player, LCD mp3 player, FM Studio, remote control, wireless mic, bar.
Introduction of TONOCH
There are more than 500 employees in factory, including 15 technicians, 20 sales persons, 18 QC, etc. At present, there are 6 assembly lines for the amplifier and 6 lines for the speaker. Moreover, Tonoch has invested for injection machine, SMT and mould toolings which are exclusive for it.
Quality is controlled very well because almost all of the parts are made by itself and continuous improvement are made on products. Meanwhile, we are making every effort to controlled the cost as low as possible.
Our goal is to provide the best quality products at the lowest price to the customers and the customers always put in the first.
Due to the above advantages, we obtain quite good reputation from the customers.
Together we can do better, together we can make audio better!
Tonoch is your best choice!
Once you have any idea concerning new audios, pls contact me. OEM ODM are both welcome. Welcome to visit our factory! Any question, send inquiry to me!
