| Prod Model: |
EM6300UB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Audio Mixer Description: |
6 Channels Powered Cabinet Mixer |
| Audio Mixer Microphone Balance Input: |
600 Ohms, -60dB |
| Audio Mixer CD Tape Stereo Input: |
10 Ohm, -20dB |
| Audio Mixer High Impedance Input: |
10 Ohm, -20dB |
| Audio Mixer Master Output: |
300W RMS, 4 Ohm |
| Audio Mixer Rec Output Impedance: |
1k Ohm, -10dB |
| Audio Mixer Package(Wxdxh): |
455X325X245mm |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Button Control |
| Speaker Material: |
Plastic |
| Application: |
Home |
| Certification: |
ETL |
| Monitor: |
LCD Screen |
| THD: |
<0.005% |
| Speaker System: |
6 Channals |
Product Description

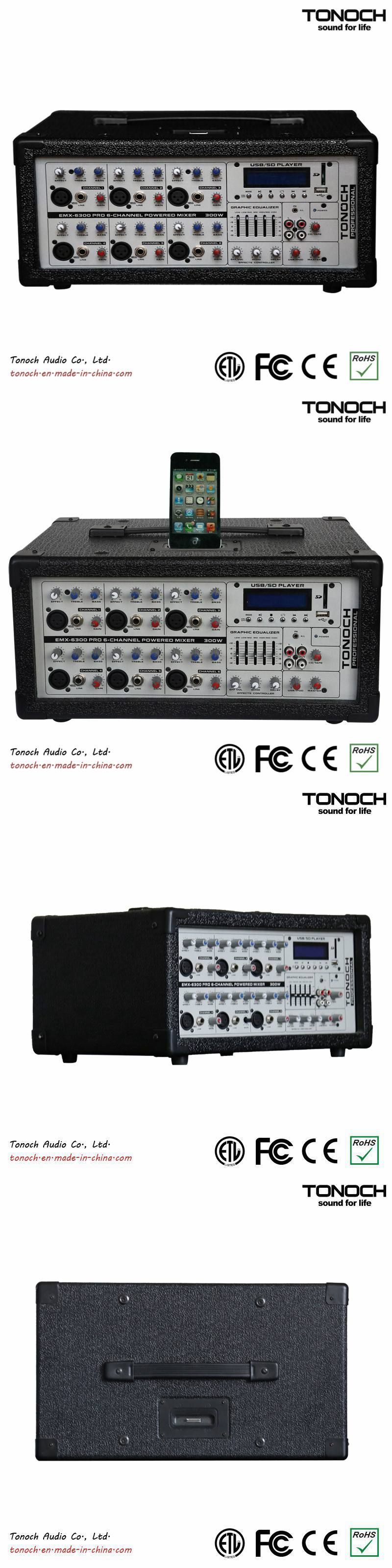

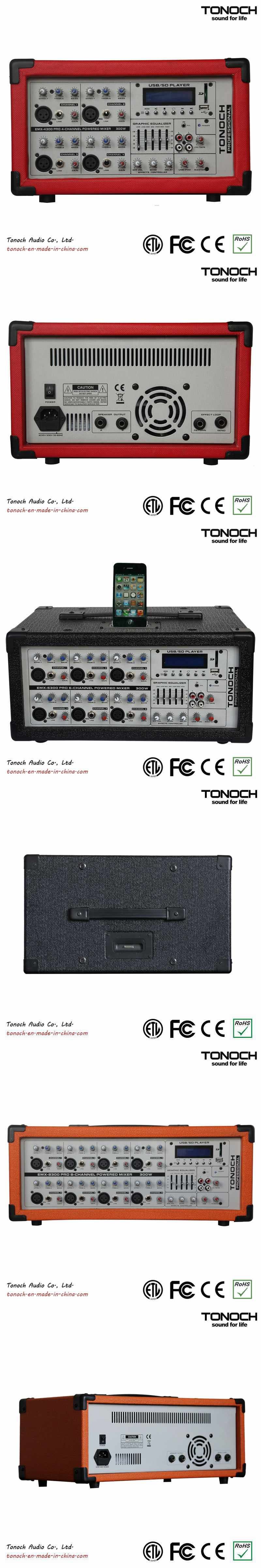

Tonoch 6 Channels Power Box Audio Mixer
INTRODUCTION
Got a solo gig at the local coffee shop?
Need to make a quick public announcement?
Simple sound calls for the simply superb
Tonoch EMX series, with everything you need to give an intimate setting incredible sound.
EMX series is your PA mixer and amplifier solution, it provides total sound control and is perfect for controlling the audio at social gatherings.
FEATURES:
1. Portable, a handle on the top
2. Bluetooth wireless music streaming
3. RCA & AUX input
4. Digital LCD display
5. USB/SD card reader
6. 5 band EQ
7. Master Volume Control
8. Tone controls for each channel
Specifications | Model | EMX4300UB | EMX6300UB | EMX8300UB |
|
| Description | 4 Channels powered cabinet mixer
with USB+SD+LCD Player+5 Band EQ
+Bluetooth | 6 Channels powered cabinet mixer
with USB+SD+LCD Player+5 Band EQ
+Bluetooth | 8 Channels powered cabinet mixer
with USB+SD+LCD Player+5 Band EQ
+Bluetooth |
|
| Input | 4-channel microphone balance
input, 600 ohms, -60dB
4 line unbalance input
CD tapestereo input,
10 ohm, -20dB
High impedance input,
10 ohm, -20dB | 6-channel microphone balance
input, 600 ohms, -60dB
6 line unbalance input
CD tape stereo input,
10 ohm, -20dB
High impedance input,
10 ohm, -20dB | 8-channel microphone balance
input, 600 ohms, -60dB
8 line unbalance input
CD tapestereo input,
10 ohm, -20dB
High impedance input,
10 ohm, -20dB |
|
| Output | Master output:
300W RMS, 4 ohm
REC output impedance,
1k ohm, -10dB
Each channel tone control
and effect control | Master output:
300W RMS, 4 ohm
REC output impedance,
1k ohm, -10dB
Each channel tone control
and effect control | Master output:
300W RMS, 4 ohm
REC output impedance,
1k ohm, -10dB
Each channel tone control
and effect control |
|
| Other feature | Master volume control
Channel tone adjust +/- 15dB
AUX/TAPE/Effect feedback input
Effect send/Phones
Output/Return
Heat protecting | Master volume control
Channel tone adjust +/- 15dB
AUX/TAPE/Effect feedback input
Effect send/Phones
Output/Return
Heat protecting | Master volume control
Channel tone adjust +/- 15dB
AUX/TAPE/Effect feedback input
Effect send/Phones
Output/Return
Heat protecting |
|
|
|
| Package(WxDxH) | 385x325x254mm | 455x325x245mm | 525x325x245mm |
|
| Loading QTY | 20"GP 40"GP 40"HQ | 20"GP 40"GP 40"HQ | 20"GP 40"GP 40"HQ |
| 935pcs 1935pcs 2270pcs | 775pcs 1600pcs 1880pcs | 620pcs 1285pcs 1505pcs |
Introduction of TONOCH
There are more than 500 employees in factory, including 15 technicians, 20 sales persons, 18 QC, etc. At present, there are 6 assembly lines for the amplifier and 6 lines for the speaker. Moreover, Tonoch has invested for injection machine, SMT and mould toolings which are exclusive for it.
Quality is controlled very well because almost all of the parts are made by itself and continuous improvement are made on products. Meanwhile, we are making every effort to controlled the cost as low as possible.
Our goal is to provide the best quality products at the lowest price to the customers and the customers always put in the first.
Due to the above advantages, we obtain quite good reputation from the customers.
Together we can do better, together we can make audio better!
Tonoch is your best choice!
Once you have any idea concerning new audios, pls contact me. OEM ODM are both welcome. Welcome to visit our factory! Any question, send inquiry to me!
