| Prod Model: |
FP14000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
14000 Lab Gruppen Audio Power Amplifier Sound Stan |
| RMS: |
2350W |
| System: |
2 Channels |
| Colour: |
Black |
| MOQ: |
1 Piece |
| Warranty: |
Three Years |
| Customized: |
Yes |
| Delivery Time: |
for Sample,1 to 3 Working Days for Batch Order,5 T |
| Business Type: |
Factory |
| Transistor: |
on Semiconductor |
| Type: |
Professional Amplifier |
| Usage: |
Pubs, Home, Commercial |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Sound Channel: |
2.0 |
| Output Number: |
2 |
Product Description

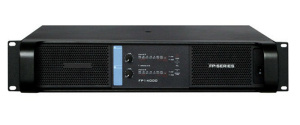

14000 Lab Gruppen Audio Power AmplifierAdopting SMT technology . It looks on top grade , also high integration and stable performance .
Switching power supply technology is used in power supply to lower the power consumption . It is less weight and convenient for touring performance.
cannon and terminal block output to make machine more stability.
The machine has a 30Hz low cut choice on-off and a channel choice on-off.
It has stereo,bright and merge output ,Easy operation of function bill in the back side.
There is a independent protection, clip, signal instruction, so it can monitor the working status of each channel easily.
The protection function is very perfect,.It has over-temperature protection, current protection, short circuit protection, to ensure that the machine can not damaged in harsh environments or under wrong operation situation.
the cooling system using a continuously variable low-noise large displacement blower, to ensure the machine operates at a suitable low operating temperature.
built in intelligent limiter system,It can detect output signal is distortion or not.when the distortion is more than 0.5%, the machine will turn into a limiter circuit situation,
then reducing the output level to ensure that the amplifier output signal within a certain range will not be clipping, to avoid damage to the speaker unit.
FP Series | FP7000 | FP9000 | FP14000 | FP8000Q | FP10000Q |
| 8ΩStereo Power(RMS) | 1500WX2 | 1800WX2 | 2350WX2 | 800WX4 | 1350WX4 |
| 4ΩStereo Power(RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1400WX4 | 2700WX4 |
| 2ΩStereo Power(RMS) | 3500WX2 | 4500WX2 | 7000WX2 | 1600WX4 | 2500WX4 |
| 8ΩBridged Power(RMS) | 5600W | 6000W | 8800W | 2800WX2 | 4200WX2 |
| 4ΩBridged Power(RMS) | 7000W | 9000W | 14000W | 3200WX2 | 5000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD |
| TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
| Operating voltage, 230 V / 115 V nominal | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 kOhm |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Dimensions (W×H×D) | 483×88×396mm |
| Packing dimension | 580×180×560mm |
| Net weight(kg) | 12 |
| Gross weight(kg) | 15 |
Our company:Area: 10000 square meter
Worker: more than 200 rich experienced technicians
History: more than 8 years ----------- We are a global marketing factory
Certificates: ISO9001(2008), RoHS ,CCC, FCC, CE,SGS
Market: western European,north American,middle-east Australia, east-south Asian , etc.
Our promise:pay more attention to product quality than you
We will reply you any question within 24 hours
1>. What's your warranty period?All our products have three years warranty on free charge, in case the amplifier is burned in the future, please tell me issue describe, then give us your repair instruction with picture, please just ask your technician to replace burned components, then solve problem.Of course, we willprovide technician support for over three years products, but you should pay for spare parts and shipping cost at that time.
2>. What's your payment term? For the sample order, we can accept T/T, Western Union, MoneyGram,Paypal and other.
But for the Batch order, we support Payment term by T/T,Western Union and other.
( 30% deposit in advance, balance 70% before shipment ).
3>. How many days you could deliver?For the sample order, we could send by Express upon receipt of this funds. You could receive them approx 3-5 days after we receive the deposit.
For the batch order, we will produce on the premise of guarantee quality as soon as possible.
4>. What's mode of transportation?For the sample order, we will deliver by Express, like DHL, Fedex, TNT and EMS.
Of course, it is more economical by sea for batch order.
5>. How to contact us?Send your inquiry detail to get the sample, click "send" now!
About Us:Guangzhou Yunqiang Electronics Limited is a developing amplifier, speaker,stage lighting factory in Guangzhou,China. Based in the interenational andmanufactures innovative,High quality Amplifier, Speaker, Stage Light products for the professional Club Play and stage show Entertainment&leisure.
Our purpose:Quality first,Credit first Customer first, First-rate service.
We insist in "honest business and high quality service" as our business ideal, with a powerful R&D team and a group of skilled workers in the factory as the strong backup and support,
we always work on this ideal to serve all customers with good quality and reasonable price.
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
