| Prod Model: |
JLF-1530/1380/1220/1100/1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Air Conditioner, Greenhouse, Licestock |
| Cooling Method: |
Direct Cooling |
| Blade Thickness: |
1.2mm |
| Motor Brand: |
Laoyite |
| Belt Brand: |
Sanlux |
Product Description

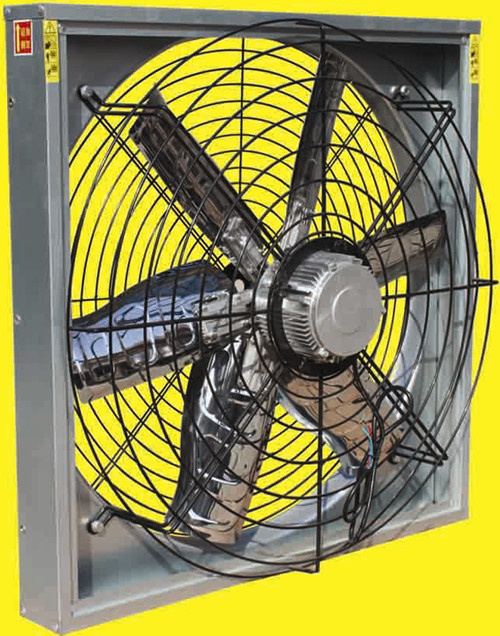

Our haning exhaust fan have the following advantages:
1. Hot-galvanized frame. Light weight and easy to install, carry.
2. Injection mould designed blades, special for exhaust fan
3. Stainless steel blade, with big air volume, never distorted and broken
4. Enhanced protection cover can protect fan's blade, safety and fastness
5. Fans with CE certifated, ISO9000, quality guaranteed
| Model Specifications | blade (mm) | Blades rotational speed (rpm) | Motor rotational speed (rpm) | Air flow (m/h) | Total pressure (Pa) | Import
power (W) | Rated voltage(V) | High (mm) | Width (mm) | Thick (mm) |
JLF-900
(35' ' ) | 750 | 630 | 1400 | 28000 | 65 | 370 | 380 | 900 | 900 | 420 |
| JLF-1000 (39' ' ) | 900 | 610 | 1400 | 30000 | 70 | 750 | 380 | 1000 | 1000 | 420 |
| JLF-1100 (43' ' ) | 1000 | 600 | 1400 | 32500 | 70 | 750 | 380 | 1100 | 1100 | 420 |
| LJF-1220 (48' ' ) | 1100 | 460 | 1400 | 38000 | 73 | 750 | 380 | 1220 | 1220 | 420 |
| JLF-1380 (54' ' ) | 1250 | 439 | 1400 | 44000 | 56 | 1100 | 380 | 1380 | 1380 | 420 |
| JLF-1530 (59' ' ) | 1400 | 325 | 1400 | 55800 | 60 | 1500 | 380 | 1530 | 1530 | 420 |
Welcome to contact me for more exhaust fan's details
Contact person: Darcy
Mob: 0086-15966082361
Tel: 0086-3529853
Fax: 0086-3529387
Qingzhou JINLONG Temperature-controlled Equipment Co., Ltd is a professional livestock machinery manufacturer in Shandong province, China, which is a high technology enterprise composed with design, production, sale and after-sales service.
Our company has advanced machining equipment and strong technical force. We introduced advanced quality control equipment, static and dynamic balancing machine and hydraulic repressive machinery. The main products include ventilation fans, air circulation fan, roof fans, wall fans, cooling system, evaporative cooling pad, air cooler, automatic feeding and drinking system, automatic oil-burning and coal-burning hot blast stove, totally more than 30 kinds, which have absorbed the quintessences of similar products home and abroad, made of high quality materials by advanced technology.
The products are all energy saving, smooth operation, low noise, stable performance, solid and durable with elegant appearance, and widely used in the fields of agriculture, flowers and plants, livestock, textile, mining, chemical, pharmaceutical and timber. Our company always insists on the tenet of "survive with quality, develop with credibility". We provide first-rate products and service for customers with the enterprise spirit as "keep faithfulness, and race to the top ". Our products have been exported to Southeast Asia, Middle East, West Europe, Canada and Australia and get favorable comments.
