| Prod Model: |
OPT1203 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12volt |
| Application: |
UPS, LED Lighting,Solar Light |
| Warranty: |
2 Years |
| Casing: |
Plastic Case |
| Model Of Single Cell: |
32650-3.2V 5ah |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Rated Capacity: |
5ah |
| Standard Voltage: |
12.8V |
| Electrolyte: |
Lithium Iron Phosphate |
Product Description
Packaging & Delivery
| Packaging Details: | a. PVC film
b. Epoxy board+ PVC film
c. SLA case
d. Customized iron case or aluminum alloy case |
|---|
| Delivery Detail: | 2-3 weeks after the payment |
|---|
Specifications

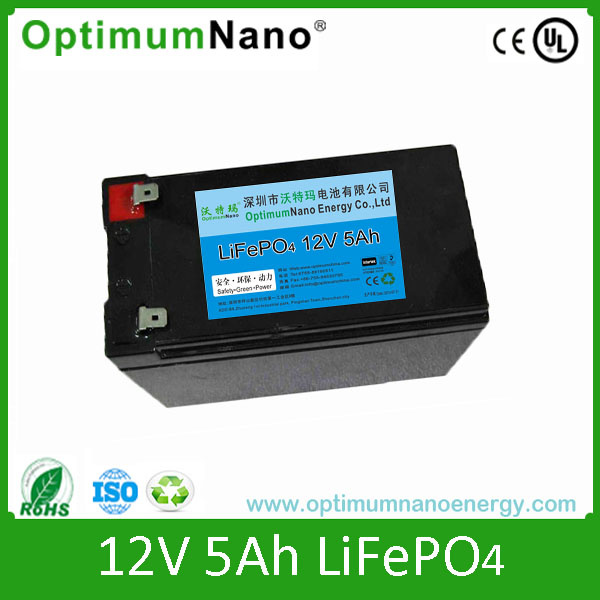

12V 5ah lithium battery for solar lamp
>2000 times deep cycle at 100%DoD
largest 32650 factory in China
12V 5ah lithium battery for solar lamp
1. Safety: safest Li-Ion battery, CE UL approved, built-in protection circuit board (BMS), no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 2000 times deep cycle at 1C rate, 6-8 times of lead acid battery
4. No memory effect, highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~70C
6. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-Cd battery,
1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, electric scooter,e-motor, electric golf car, forklift,
cleanness car, electric wheelchairs
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
| Optimum LiFePO4 Battery/Lithium Battery Pack |
| 12.8V 5Ah |
| NO. | Item | General Parameter |
| 1 | Cell Model | IFR 32650 |
| 2 | Casing Material | Steel Case for Single Cells |
| 3 | Standard Capacity | 5Ah |
| 4 | Rated Voltage | 12.8V |
| 5 | Max Charge Current | 14.6V |
| 6 | Discharge Cut-off Voltage | 10V |
| 7 | Self Discharge Rate | ≤3% one after month |
| 8 | Max Continuous Discharge Current | 2.5C5A |
| 9 | Standard Charge Current | 0.2C5A |
| 10 | Dimension (customizable) | Length | 151mm |
| Width | 51mm |
| Height | 93mm |
| 11 | Weight(Approx, including case) | About 0.9kg |
| 12 | Impedance(Max, at 1000Hz.) | ≤ 10mΩ |
| 13 | Charge Method
(CC/CV) With
(normal charger) | Standard | CC | 0.2C | 14.6V cut off |
| CV | 14.6V | 0.05C cut off |
| Rapid | CC | 1C | 14.6V cut off |
| CV | 14.6V | 0.05C cut off |
| 14 | Operate temperature | Charge | 0°C~45°C |
| Discharge | -20°C~60°C |
| Storage | -20°C~45°C
|
Optimum Battery:
We specialize in Lithiuim Iron Phosphate Battery for 13 years, with High qualtiy and competitive price.
Our company have more than 4000 employee, many R&D team and QC staffs. we are professional battery solution supplier.
