| Prod Model: |
YB12864J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Format: |
128*64 Dots |
| Outline Dimension: |
75.0*54.7*12.5mm |
| Visual Area: |
60.0*32.6mm |
| Active Area: |
56.27*38.35mm |
| Diagonal Size: |
2.69 Inch |
| IC Or Equivalent: |
Ks0107/S6b0107/Sbn6400 or Eqv |
| Interface: |
6800 8-Bitparallel |
| Display Type: |
Stn/FSTN |
| Appearance: |
White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ: |
3.3V/5V |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
LCM |
| Response Time: |
1ms |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Viewing Angle: |
6.0 |

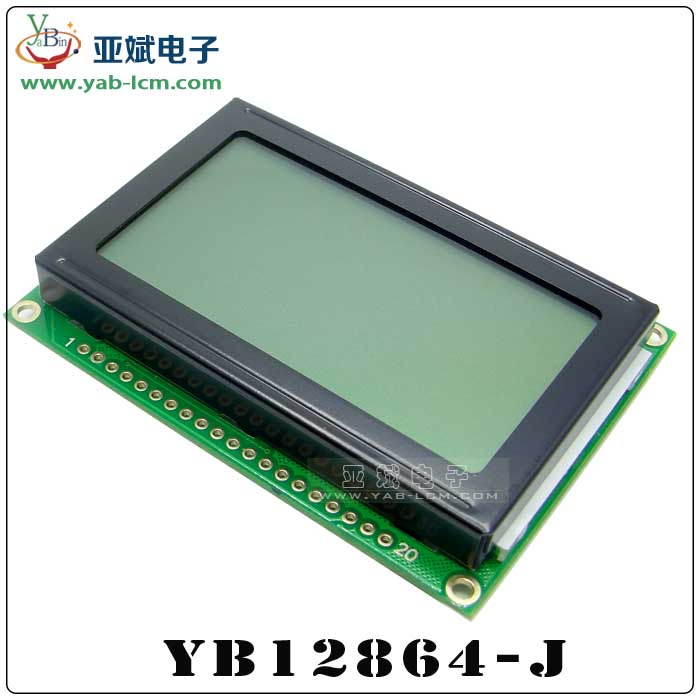

Product Description
1>>.The product description
| Gross Weight (kg) |
|
| Manufacturer | YaBin |
| Series Number | YB12864J |
| Display Format | 128*64 Dots |
| Outline Dimension | 75.0*54.7*12.5mm |
| Visual Area | 60.0*32.6mm |
| Active Area | 56.27*38.35mm |
| Diagonal Size | 2.69 inch |
| Dot (Pixel) Size | 0.4*0.4mm |
| Dot (Pixel) Pitch | 0.43*0.43mm |
| IC Package | COB |
| IC or Equivalent | KS0107/S6B0107/SBN6400 or EQV |
| Interface | 6800 8-bitParallel |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ) | 3.3V/5V |
| Backlight Current (Typ) | 75mA |
| Operating Temp | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| If accept customized | Yes |
| RoHS Compliance | Yes |
2>>. interface definition
| ITEM | SYMBOL | LEVEL | FUNCTIONS |
| 1 | VDD | 5.0V | Power Supply For Logic |
| 2 | VSS | 0V | Power Ground |
| 3 | V0 | - | Contrast Adjust |
| 4-11 | DB0-DB7 | H/L | Data Bus |
| 12 | CS1 | L | Chip Selection A |
| 13 | CS2 | L | Chip Selection B |
| 14 | /RST | L | Reset Signal |
| 15 | R/W | H/L | H:Read L:Write |
| 16 | RS | H/L | H:Data L:Command |
| 17 | E | H,H->L | Enable Signal |
| 18 | Vout | - | Negative Power output for LCD Driving |
| 19 | LEDA | 5.0V | Power Supply For LED Backlight |
| 20 | LEDK | 0V |
3>>. cost of description
| 1.Material cost breakdown |
| Product model | YB12864-J | specifications | yellow-green/blue 5V
(standard configuration) |
| Items | price(USD) | Items | price (USD) |
| Print circuit board | 0.31 | electronic element | 0.24 |
| Liquid Crystal Display | 0.98 | Integrate circuit (IC) | 0.84 |
| Iron box | 0.11 | Chip on board assembly
(independent production) | 0.8 |
LED backlight
(independent production) | 0.42 | production cost
(SMT+COB+assembly+packing) | 0.8 |
| Conductive article | 0.04 | material loss | 0.29 |
| cost of total amount | 4.83 |
| 2.Market pricing |
| Minimum quantity (PCS) | Rate of profit(%) | total profit (USD) | Ex price (USD) |
| 1-49(sample) | 35% | 1.69 | 6.52 |
| 50-99(Small batch) | 30% | 1.45 | 6.28 |
| 100-499(Small batch) | 25% | 1.21 | 6.04 |
| 500-999(big batch) | 20% | 0.97 | 5.80 |
| More than 1,000(big batch) | 15% | 0.72 | 5.55 |
If there is disagreement on the above price please contact me with details, thank you! |
4>>.Packaging
1).Cartons, Cupboard, EPE, Blister Tray.
2).About how many products in one package, it is up to the size of products.
3).according to customer request.
5>>.My service
1).Assure our product quality
2). Produce high quality products.
3).Produce RoHS compliant products.
4).Meet customer special demands
5).Semi- or fully-custom design products
6).Provide professional service
7).Stable and long-term supply
8).Timely response
9).Small demand support
6>>.FQA
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN ,TFT ,OLED Color LCD display module and monochrome liquid crystal display module ,LCD modules more than 10 years in Shenzhen! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q: what kind of check can provide?
A: shenzhen yabin electronics have multiple test by different departments,from material procurement to finished product QA, QC, salesrep resentatives,ensure all franchise player is in good condition before shipment. We also accept the inspection you designated third party.
5.Q: Can you design the lcd in accordance with our demand?
A:Sure.We will give you the best tooling charge.
6.Q: How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
6-1)Product information-Quantity,part number
6-2)Delivery time required.
6-3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
6-4)Forwarder's contact details if you have any in China.
7.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
If you want to know more information about the LCD liquid crystal display module, welcome you at any time to come to consult!
Shenzhen YABIN Electronics Co., Ltd., set up in the year of 2008, is a high-tech enterprise specialized in producing LCD and LCM. Our company has more than 1000 square kilometer area, advanced LCD production lines, and a professional team with great strength and rich experience. Moreover, our company has passed ISO9001 certification and specialized in producing all kinds of LCD with the thickness of 1.1mm, 0.7mm, 0.55mm and 0.4mm and the models of TN, HTN, STN and FSTN LCM with COB, TAB, COG, TFT and OLED models.
We are famous for our superior quality, competitive prices, first-class craftwork, safe package and prompt delivery. Therefore, we can fully meet your demands. Apart from our own products, we also provide OEM & ODM services.
The products in our company are widely used in electricity, acoustic equipment, communication, industrial equipment, car acoustic and other fields. Over 60% of our products have been sold to Japan, Korea, Hong Kong and Taiwan area. We always insist on the dealing theory of "excellent quality, and superb service", taking innovative technology and science management very seriously, and strengthening quality, technology, environment and management system. We will keep working hard to achieve success with customers.
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
