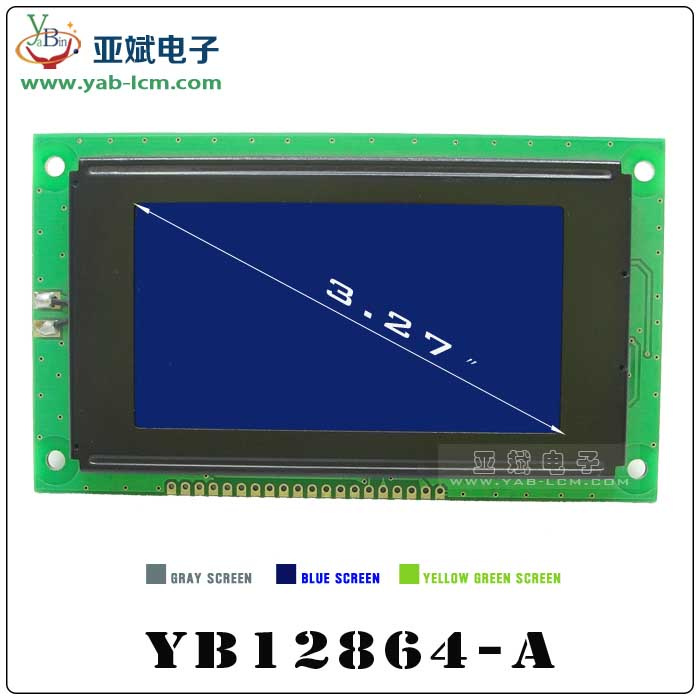

128 * 64 Graphic Liquid Crystal Display (yb12864A)
| Price: |
US $ 7.1-8.33/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
YB12864A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Format: |
128*64 Dots |
| Outline Dimension: |
113(W)*65(H)*13(T)Mm |
| Visual Area: |
73.4*38.8 Mm |
| Active Area: |
66.52(W)*33.24(H)Mm |
| Diagonal Size: |
3.27 Inch |
| IC Or Equivalent: |
Ks0107/S6b0107/Sbn6400 or Eqv |
| Interface: |
6800 8-Bitparallel |
| Display Type: |
Stn/FSTN |
| Appearance: |
White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ): |
5V |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
Graphic |
| Response Time: |
1ms |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Viewing Angle: |
6.0 |
Product Description
1.The product description
| Gross Weight (kg) |
|
| Manufacturer | YaBin |
| Series Number | YB12864A |
| Display Format | 128*64 Dots |
| Outline Dimension | 113(W)*65(H)*13(T)mm |
| Visual Area | 73.4*38.8 mm |
| Active Area | 66.52(W)*33.24(H)mm |
| Diagonal Size | 3.27 inch |
| Dot (Pixel) Size | 0.39*0.55mm |
| Dot (Pixel) Pitch | 0.44*0.6mm |
| IC Package | COB |
| IC or Equivalent | KS0107/S6B0107/SBN6400 or EQV |
| Interface | 6800 8-bitParallel |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ) | 5V |
| Backlight Current (Typ) | 75mA |
| Operating Temp | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| If accept customized | Yes |
| RoHS Compliance | Yes |
2. Outline size
3. The interface definition
4.Packaging & Shipping
5.Our Services
| 1. Has a number of high quality engineers and experts to provide guidance for the maintenance. |
| 2.Skilled technology and strict for quality. |
| 3.Powerful products design and develop. |
| 4.Experienced sales team |
| 5. High Quality |
| 6. 1 year warranty for the products. |
6.Company Information
| Shenzhen yabin electronics co., LTD is a professional engaged in liquid crystal display (LCD) and liquid crystal display module (LCM) development design, production and sales of high-tech production-oriented enterprises. |
| 1. The pen sections of display module series (TN, HTN, mode) |
| 2. The character dot matrix LCD module series |
| 3. The graphic dot matrix display module series (COB, COG, etc) |
| 4. The OLED dot matrix display screen |
| 5. TFT color screen and industrial control screen series |
7.FAQ
| A. ask: are you a factory or trading company? |
| Answer: we are a factory |
| B.ask: do you provide product stable? |
| Answer: long-term guarantee continuity of supply. We guarantee that supply long-term supply continuity and never end. Some controllers, integrated circuit may stop production, we will do everything to try to find completely compatible. If the equivalence is unavailable,we will make the new tool and use the most similar IC as a substitute. So you don't have to worry about even if you study for a long time. |
| C.ask: what time can you make delivery? |
| Answer: we can be in 7 to 15 working days according to the size of your order quantity and delivery on schedule. |
| D. ask: what kind of check can provide? |
| Answer: shenzhen yabin electronics have multiple test by different departments,from material procurement to finished product QA, QC, salesrep resentatives,ensure all franchise player is in good condition before shipment. We also accept the inspection you designated third party. |
| E.ask: what is your warranty period? |
| Answer: shenzhen yabin electronics provides a year of quality assurance,products from the purchase date, unless it is due to the force majeure and human factors. |
|
|
| If you want to know more information about the LCD liquid crystal display module, welcome you at any time to come to consult! |
