| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
P10 Outdoor Full Color Advertising LED Pantallas |
| Module Size: |
160*160mm |
| LED Chip: |
Epistar |
| Driving IC: |
Jxi5020gp |
| Best View Distance: |
10-100m |
| Best View Angel: |
H120 V90 |
| Cabinet: |
Waterproof Cabinet |
| Brightness: |
More Than 7000CD/M2 |
| Continuous Work Time: |
72 Hours |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
CCC |
| Average Power Consumption: |
483W/M2 |
Product Description
10mm Pixels and Full Color Tube Chip Color pantallas led
1. Brightness: ≥7000cd/m2
2. Average power consumption: ≤483 W/m2
3. Manufacturer: over 10 years
4. Quick response: replying inquiry within 12hrs
5. On time delivery + patient after-sales service
6. Quality guarantee: CE, RoHS, FCC, IP65, ISO9001 + 100% testing before shipping.
About the P10 outdoor full color led display, there are three kind of product:
Quality A: Brightness: ≥8000cd/m2
LED chip: Opto+Silan
Quality B: Brightness: ≥7000cd/m2
LED chip: Epistar
Quality C: Brightness: ≥5500cd/m2
LED chip: Sanan
Company Brief
BrilliantOpto Co.,Limited [JingCai (Fujian) Optoelectronics Co., LTD] specialized in the development and manufacture of LED display system products.Founded in 2005, with the registered capital 20.18 millionRMB, owns workshop area 40,000 m2. Branched offices and agents all over China, with about 400 employees, including 21 engineers and 5 of them are senior.
Main products:single & dual color LED display and full color LED display for indoor/outdoor use.The products can pass CE, RoHS, FCC, IP65, ISO9001 certifications, etc,.
Our technology strength is among the front row in this industries, with a professional team. Strictly quality control, good after sale service and quickly delivery.
Through our efforts, our products have been sold well in Europe, North/South America, Australia, the Middle East and Southeast Asia. Welcome to contact Brilliant Opto today!
Product specification
Pixel Pitch | 10mm |
| Module Size(W×H) | 160mm*160mm |
| Module Resolution(W×H) | 16*16dots |
| Pixel Density | 10,000 (dots/ m2) |
| Lamp Origin | Epistar |
| Pixel Configuration | 1R1G1B |
| Led Specification | DIP346 |
| Gray Level/ Color | 65536 lever |
| Brightness | ≥7000 cd/m2 |
| Best view angle | Horizon: 120° Vertical : 90° |
| Control method | asynchronous |
| Scanning method | 1/4 constant voltage |
| Power consumption | Average: 483w/m2 Max : 684w/m2 |
| Best viewing distance | 8~150m |
| Lifespan | ≥100,000 H |
| MTBF | ≥10,000H |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥400HZ |
| System Working Temperature | -20°C ~ 50°C |
| System Working Humidity | 10 ~ 90%RH |
| Power | 5V/40A |
| Module weight | 620g/pcs |
| Brightness control lever | 0 ~ 100 lever |
| Maintenance way | Rear access |
| Environment temperature | -40°C ~ +85°C |
| Suitable voltage | DC5V |
| Spending card | kilomega network card |
| Video signal | PAL/NTSC |
| Working voltage | 220V±10%
|
Application Case:

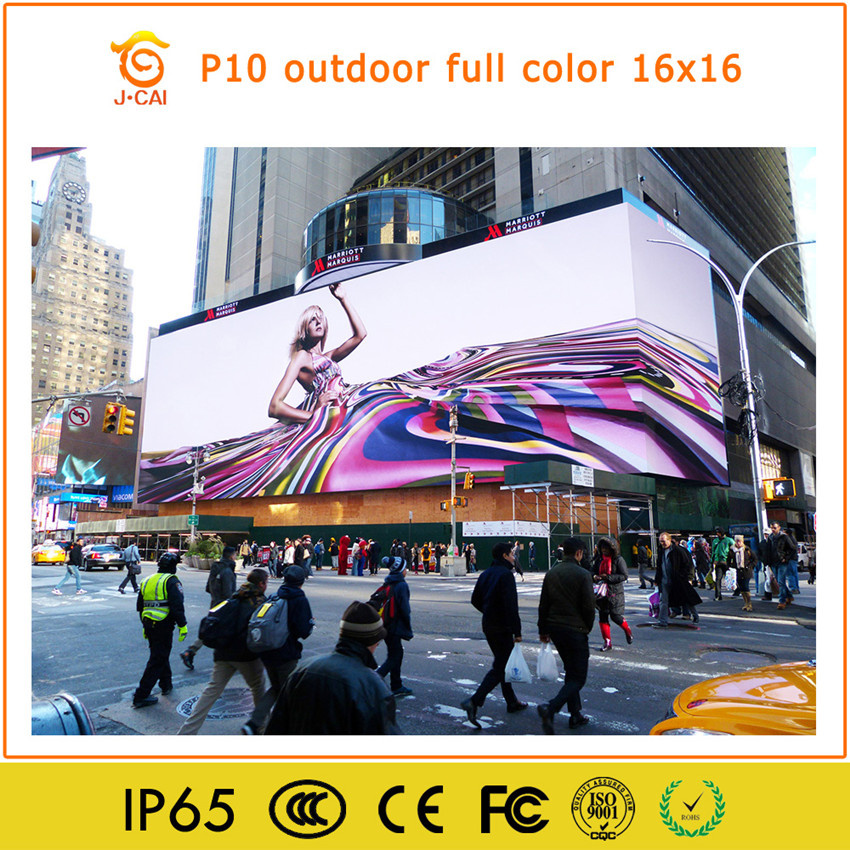

P10 outdoor full color led module
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
Price List
1. P1.9/P2/P2.5/P3...Indoor full color led display;
2. P10/P12/P12.5/P16/P20/P25...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
Our Features
1. Good price
Our price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management.
2. Lightweight
Aluminum cabinet greatly saving freight cost and conveniently installing.
3. Stable performance
Our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate
less than 0.0001. MTBF more than 1000 hours.
4. Best quality LED chip tube
The GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan.
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
6. Quality insured by CPIC and 2-year QA.
FYI: we would like to know more details before offering you the best quotation.
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as video processor, hanging bar, flight case for package.
