Guangzhou Zsound Proaudio Technology Co., Ltd. >> 10inch KTV Audio Full Range Speaker

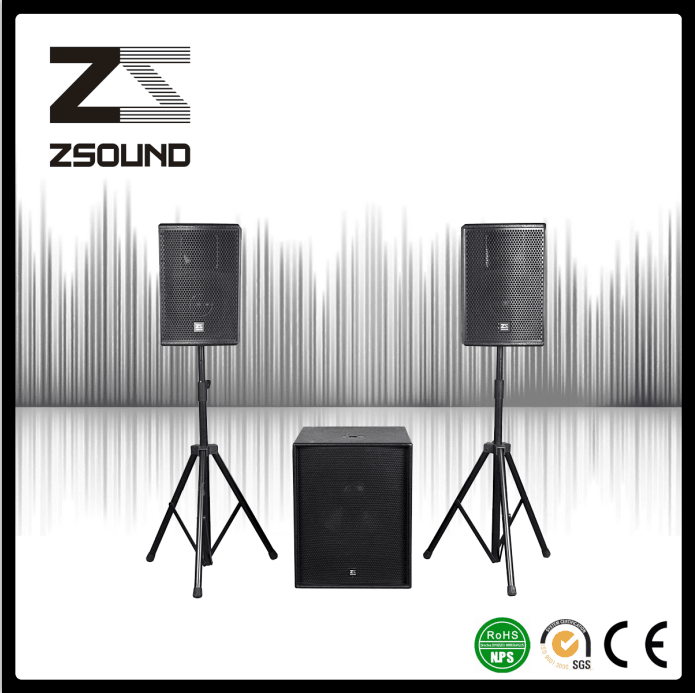

10inch KTV Audio Full Range Speaker

10inch KTV Audio Full Range Speaker
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 4/Piece
Pay Type: T/T,Money Gram,Western Union
Prod Model: P10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: CE, RoHS
Power Rating: 350W
Nominal Impedance: 8ohm
Maximum Spl: 120dB(Continous) 126(Peak)
Drivers: Lf 1*10" Woofer Hf1*44compression Driver
Service: OEM, ODM
Speaker Material: Wood
Application: Stage
Certification: RoHS

Product Description

10inch ktv audio full range speaker

P10 is a two-way passive system, medium scale loudspeakers that utilise the lastest Phasecontrol technology. When conbined with SB series subwoofer, ultra low  frequency response will be achieved.



Features:

·Special design for frequency response to avoid auditory fatigue
·Rotatable and asymmetrical horn
·13 x M10gigging points
·Pole mount socket


Applications:
·Bar
·Theatre


TECHNICAL SPECIFICATION
Frequency Response:70Hz-18KHz(±3dB) 55Hz-20KHz(-10dB)
Nominal Coverage:50°~100°(H)55°(V)Constant directivity
Sensitivity (@1w/1m):95dB SPL
Power Rating (AES): 350W
Nominal Impedance:8Ohm
Maximum SPL:120dB (continuous)126 dB(peak)
Drivers:

LF 1*10"(75mm voice coil)woofer;

HF 1*44mm voice coil compression driver


PHYSICAL DATA
Dimension (H*W*D):486*316*338mm
Weights:19kg
Connectors:2*NL4MP Neutrik Speakon connectors
Speaker Cables:1+1-
Materials:18mm,24mm birch multi-plywood
Finish:Black water paint
Grille:Black epoxy mesh grille with acoustically reticulated foam







1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.


Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.

Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.

During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.

What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance

In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.

After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.

Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
