| Prod Model: |
PAE100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: |
-10 to +40 |
| Size(W*H*D): |
420mm X 109mm X 357mm |
| Weight: |
8.5kg |
| Reted Power: |
100W |
| Function: |
Amplifier Combined |
| Voltage: |
AC 220V |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
Product Description
Product description

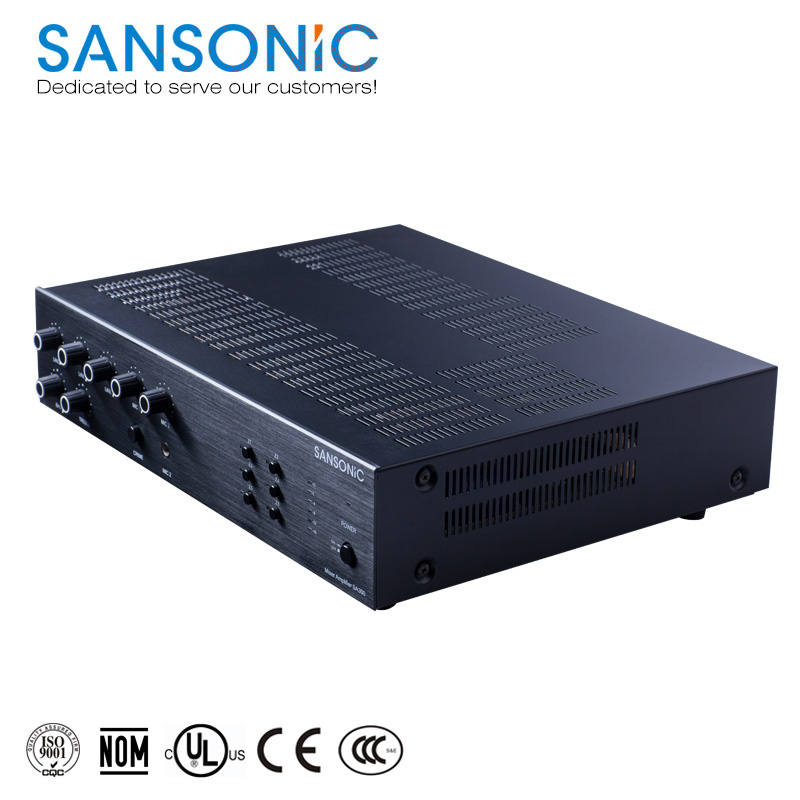

SA100 is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 100W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 4~16Ω And 100V output terminal are selectable for different speaker installation matching. Less than 1% at 1kHz, complete protection includes short circuit, overload and overheat automatic protection.
Features
1. Standard mount design, humanistic design, exquisite technique, show the top grade quality
2. MIC 1~3 XLR terminal balanced input
3. LINE 1~3 RCA linear input
4. The panel with volume adjustment knob
5.4~16Ω , 100V output terminal multi-impedance output
6. MOH linear output
7. Line 1/2 liner linear output
8. Signal lamp, peak lamp display
9. On/off impact protection speaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
Physic and environment parameter
power supply
110~125V AC or 220~230V AC,50/60Hz
Rated power output
100W
THD
Less than 3% at 1 kHz
Frequency Response
50~20,000Hz(±3dB)
Output
MOH Output:
0dB, 600ohms Unbalanced, RCA pin jack
Speaker selection output:
6 zone, high impedance, individual selector SW, screw terminals
Linear output:
High Impedance: 100V screw terminal
Low Impedance: 4-16ohms screw terminal
Input
Liner input
316mV (-10dBV) 10kohms (optional 600ohms transformer available) balanced Phenix
MIC
-60dB, 600ohms electronically-balanced, combine type of XLR-3-31 equivalent and phone jack, DIN
Line1-3:
-20dB, 10kohms unbalanced RCA pin jack
Port allocation
1. MIC 1~3 XLR balanced input, input sensibility: 1mV
2 . LINE 1~3 RCA linear input, input sensibility: 100mV;
3. 4~16ohms,100V output terminal multi-impedance output;
4. MOH linear output 1V 600ohms;
5. line 1\2 linear output 1V 600ohms;
6. Zone 2 linear output 1.5V 600Ω or 8Ω 1.5W;
