| Prod Model: |
Sanway FP3400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe |
| Type: |
2CH Amplifier |
| Signal-to-Noise Ratio: |
<-110dB |
| Gross Weight: |
17kg |
| Function: |
Post Amplifier |
| Tube Type: |
Tube Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Used For: |
Professional |
| Usage: |
Club, Music Live |
| Sound Channel: |
2.1 |
| Output Number: |
2 |
| Conductive Mode: |
Td Class |
Product Description

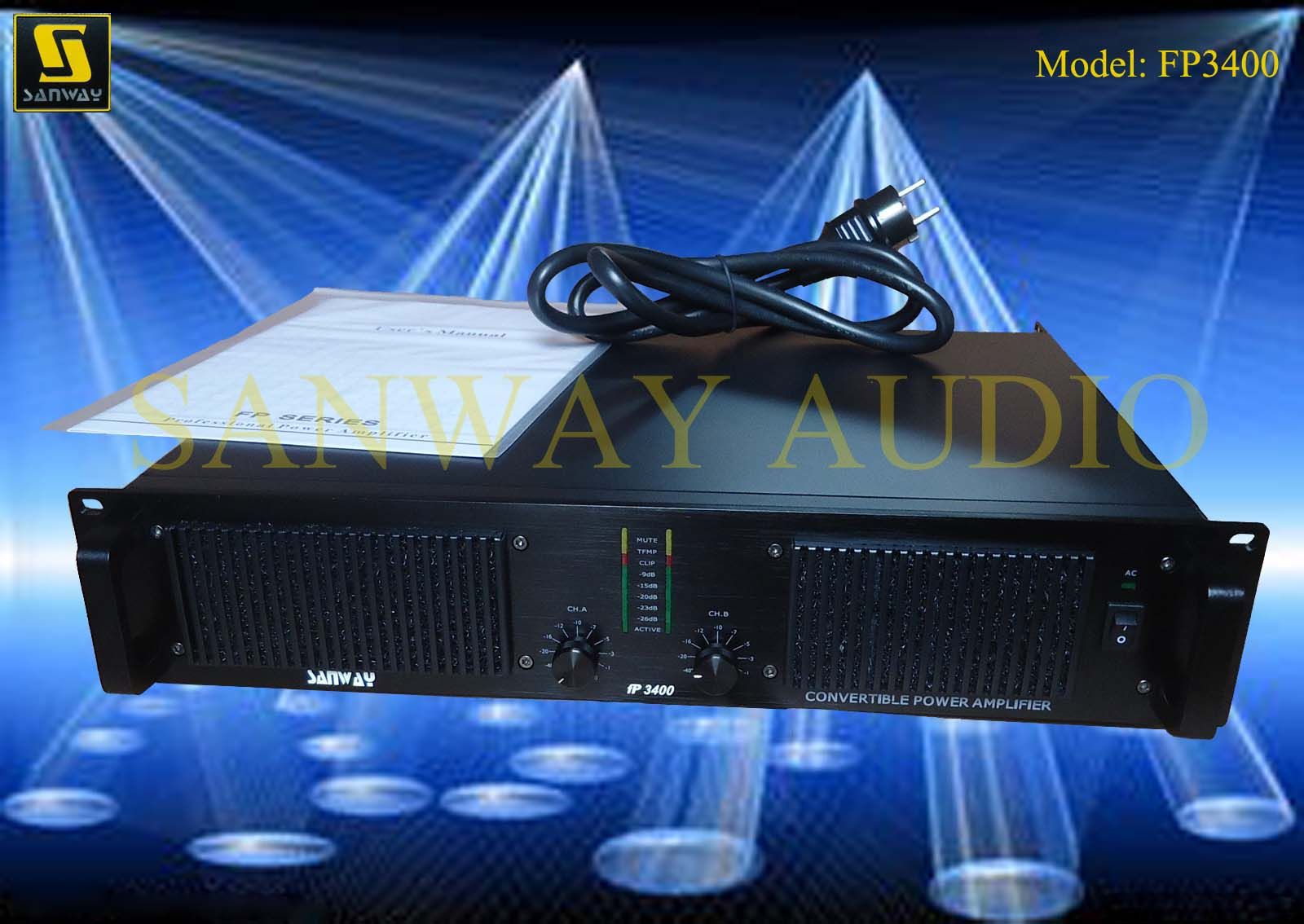

1000W Amplifier Professional FP3400
1.2x1700W@2 ohms Professional Audio Amplifier
2. Fp3400 TD Class Audio Power Amplifier
3. Pro Power Amplifier, High Power Amplifier
KEY FEATURE
1). Switching power supply
High efficiency and stability of the new switching power supply so that the signal transmission speed faster and more stable voltage changes, sensitivity stronger, lighter weight.
2). Intelligent signal limiter
Each channel has an independent output signal overload distortion, automatic pressure limited function, when the output signals are now clipping distortion can be quickly restored to the output signal compression is not the biggest distortion level and no reduction in the frequency response of audio signals, to avoid DC level because of the audio signal output and burned speakers.
3). Multiple detection, multiple protection
A soft start, the second start, the (low) pressure protection, output overload and short circuit protection.
4). High efficiency, low fever
Efficient Class TD amplifier, significantly reduce heat loss.
Specifications:
|
Switching Power Amplifier fp3400 |
|
ITEM |
fp-3400 |
|
Output Power |
20-20kHz, 1W with 1 khz |
|
8ΩStereo Power(RMS) |
1100W ×2 |
|
4ΩStereo Power(RMS) |
1500W ×2 |
|
2ΩStereo Power(RMS) |
1700W ×2 |
|
8ΩBridged Power(RMS) |
3000W |
|
4ΩBridged Power(RMS) |
3400W |
|
Frequency Response (+o/-0.3dB, 1W/8Ω) |
20-20KHz±0.5dB |
|
THD+N:10KHZ<0.05% |
10KHZ<0.05% |
|
Signal-to-Noise |
<–110dB |
|
Slew Rate |
20V/us |
|
Input Connectors (per channel) |
Female XLR (pin 2+, configurable for pin 3+). TRS (tip+) |
|
Output Connectors (per channel) |
5-way binding posts or Speakon connectors (market dependent) |
|
Class |
TD |
|
TourClass Protection |
ACL, IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
|
Voltage Gain(dB) |
20 23 26 29 32 35 38 41 seletable |
|
Cooling |
4pcs variable speed DC fans, better than conventional cooling |
|
Controls |
Front panel: 2 attenuators, power switch; Rear panel: signal ground lift & mode switches |
|
Dimensions (W×H×D) |
483×88×347mm |
|
Packing dimension |
580×180×560mm |
|
Net weight(kg) |
13 |
|
Gross weight(kg) |
17 |
Sanway Professional Audio Equipment Co., Ltd is one of the best PRO Audio suppliers in Guangzhou, China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service since 1997 and gained very high reputation at home and abroad.
With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.
Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.
Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.
Main products: Professional Power Amplifiers; Active Speaker Module; Line Array System; Indoor & outdoor Professional Speakers; Digital Speaker Processors; Equalizer etc.
