| Prod Model: |
SFS1.5T-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
1.5t Sea Water Flake Ice Maker |
| Refrigeration Capacity: |
12 Kw |
| Ice Makertotal Input: |
7.5kw |
| Ice Machine Power Supply: |
380V/50Hz/3p or Else |
| Evaporator Structure: |
Spiral Groove |
| Thickness Of Flake Ice: |
1.5-2.2mm |
| Flake Ice Maker Compressor Brand: |
Bock |
| Expansion Valves: |
Danfoss |
| Nominal Current: |
14A |
| Warranty: |
2 Years |
| Ice Shape: |
Flake Ice |
| Certification: |
CE |
| Condition: |
New |
Product Description
Description:

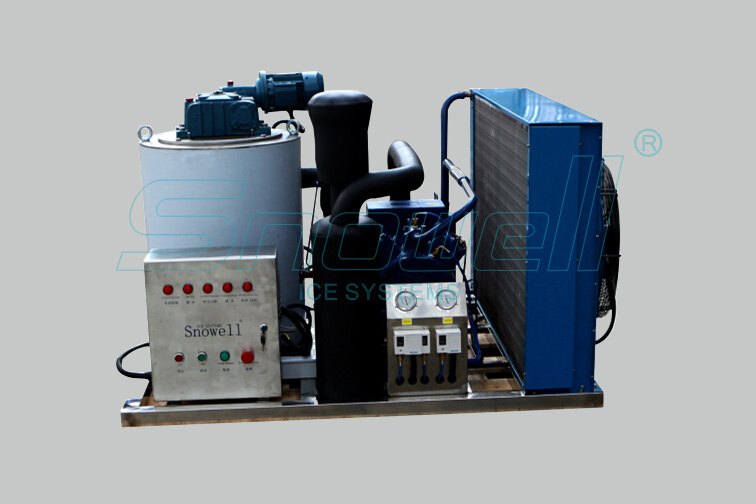

1.5T Sea Water Flake Ice Maker(Aquatic Food Refrigeration)
Model: SF1.5T-R4A
Flake Ice Maker Daily Capacity: 1500kg
Ice maker Compressor: Copeland/Danfoss/Bock
Cooling way: water Cooled
Production Capacity Available: 1-60T Per Day
Additional Detailed Specifications for the flake ice maker:
| NO. | Description | Specs. |
| 1 | Product Name | Snowell 1.5T flake ice maker |
| 2 | Refrigeration capacity | 12 KW |
| 3 | Running Power | 22.5kW |
| 4 | Cooling mode | Air cooling |
| 5 | Evaporator structure | Spiral groove |
| 6 | Evaporating temp. | -22°C |
| 7 | Condensing temp. | 45°C |
| 8 | Flake ice temp. | -5°C |
| 9 | Thickness of flake ice | 1.5-2.2mm |
| 10 | Water feeding pressure | 0.1Mpa-0.5Mpa |
| 11 | Design ambient temp. | 25°C |
| 12 | Design water inlet temp. | 18°C |
Flake Ice Maker Features
1. This is Freon System Flake Ice Machine
Freon (R507, R404A, R22) refrigerant is used in small or medium capacity flake ice machines.
2. Safety and sanitation
We use stainless steel, pure aluminum, alloy, and special treatment to prevent corrosion and make sure the flake ice machine is clean and safe to use in all industries. Anti-corrosion also extend the machine's service time.
3. High Reliability and low breakdown rate.
Snowell flake ice machines have adopt the newest international ice machine making technology. We use and only use world famous components like Bitzer, Danfoss, and so on. According to our test, Snowell flake ice machine can produce quality ice and stand over 29,515 hours of constant operation without breakdown.
4. High efficiency and energy saving.
We optimize the internally-scraping evaporator to make the ice falling reach 100%. We use a special kind of alloy material and patented processing technology to improve the thermal conductivity.
5. Simple installment , operation and maintenance.
Users just need to connect the system with water and power, press the button, ice comes out. Once some of the parts need to be replaced, it is easy for you to remove the old parts and install the new ones.
6. Great adaptability and stable quality.
Snowell products can ensure good running and normal ice out put at the ambient temperature from 5-40ºC. With our special-designed type, it can normal works in the most unfavorable working condition(-30 ºC to 60 ºC)
Applications fields of this flake ice maker:
1. Large concrete pouring project
2. Man-Made snow making project
3. Chemical Industry
4. Fishery. aquatic products processing and vegetables & fruits preservation
5. Food Fermentation
6. Meat, dairy products processing and the other food industries.
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.
Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.
Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
