| Prod Model: |
BY015JT-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TFT |
| Application: |
LCM |
| Aspect Ratio: |
4:3 |
| Interface Type: |
VGA |
| Optimum Resolution: |
480*240 |
| Screen Size: |
1.54 |
Product Description

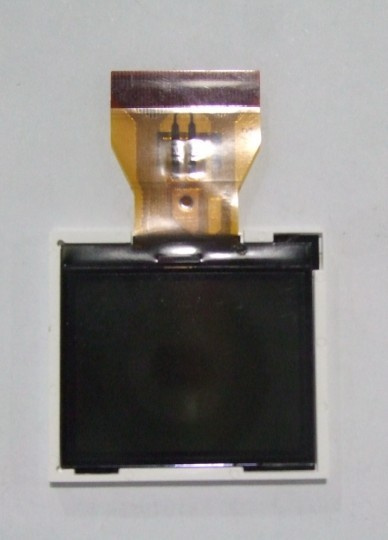

| 1.5 inch TFT LCD MODULE |
| LED*1 |
| Resolution: 480*240 |
| PIN:40PIN |
| Driving IC: TPG105 |
| Color Arrangement : R.G.B Delta |
| Module Size:37.1*32.7*2.6MM |
| Active Area: 29.79*22.32MM |
1. FEATURES
The 1.5" LCD module is the active matrix color TFT LCD module. LTPS (Low Temperature Poly
Silicon) TFT technology is applied with vertical and horizontal drivers built on the panel.
Both of horizontal and vertical scan are reversible and controlled by the serial interface commands.
The product is designed for the requirement of the green product, and the specification complies with
Toppoly's "Green Product Chemical Substance Specification Standard Hand Book".
2. GENERAL SPECIFICATIONS
Item Description Unit
Display Size (Diagonal) 1.5 Inch (cm)
Display Type Transmissive -
Active Area (HxV) 29.791x22.32 mm
Number of Dots (HxV) 480 x 240 Dot
Dot Pitch (HxV) 0.0625 x 0.938 mm
Color Arrangement RGB Delta -
Color Numbers 16Million -
Outline Dimension (HxVxT) 37.1x32.7x2.5* mm
Weight 4.5 G
Panel surface treatment Hard Coating(3H) -
*Exclude FPC and protrusions.
We have TFT LCM from 1.45inch to 10.4inch, use for camera, DVR, baby monitor, GPS and so on...
