| Prod Model: |
BY0154SAA-03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TFT |
| Application: |
LCM |
| Aspect Ratio: |
4:3 |
| Optimum Resolution: |
320(H)*RGB*240(V) |
| Screen Size: |
1.54 |
| Interface Type: |
Qvga |
Product Description

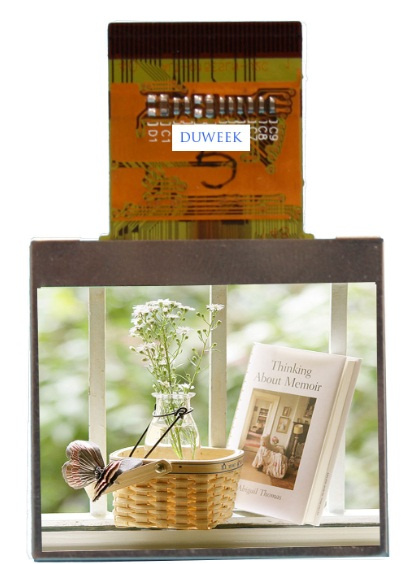

| 1.54 inch TFT LCD MODULE |
| White (LED*4) 12 O'CLOCK |
| Resolution: 320(H)*RGB*240(V) |
| PIN: 24PIN |
| Driving IC: ILI9342C |
| Color Pixel Arrangement : CPU.strip |
| Module Size:32.72(W)*36.9(H)*1.8(D0MM |
| Active Area: 33.12(H)*25.44(V)MM |
1. GENERAL DESCRIPTION
BY0154SAA-03 is 1.54" color TFT-LCD (Thin Film Transistor Liquid Crystal
Display) empty cell. The 1.54" screen produces a high resolution image that is
composed of 320(H) x 3(RGB) x 240(V) pixel elements in a stripe arrangement.
2.FEATURES
Transmissive Type
Display Mode
TFT LCD, Normal white mode
Screen Size 1.54 inch
Display Format 960*240
Color Pixel Arragement CPU Stripe `
Display Mode Normal white TN
Driving Method TFT active matrix
Backlight Color White (LED*4)
Viewing Direction 12 O'clock
3.MECHANICAL SPECIFICATION
Item Specifications Unit
Dimensional outline 32.72(W)×36.9(H)*×1.8(D) mm
Resolution 320(H)*(RGB)*240(V) Active area 33.12(H)×25.44V) mm
Dot pitch 0.0385 x 0.1155 mm
We have TFT LCM from 1.45inch to 10.4inch, use for camera, DVR, baby monitor, GPS and so on...
