| Prod Model: |
EL0154A2301 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
TV-LCM |
| Touch Screen Type: |
Capacitive |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| Digital LCD Module Type: |
Counting Module |
| Display Technology: |
TFT |
| Viewing Angle: |
TN＋FILM |
| Customized: |
Customized |
Product Description
1. General Specifications
EL0154A2301 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It iscomposed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 240x 240 pixels and can display up to 262K colors. This product accords with RoHS environmentalcriterion.

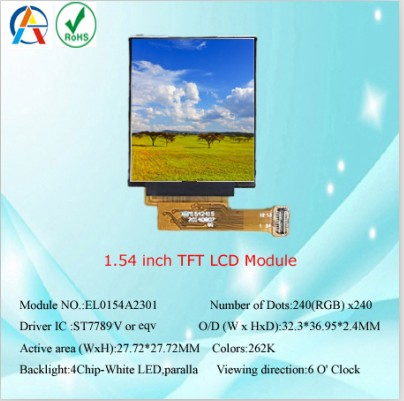

Item: ELIDA 1.54 inch lcd display
Model No: EL0154A2301
Resolution: 240RGBx240DOTS
Module outline (W x HxD): 32.3*36.95*2.4
Active area (WxH)(mm): 27.72*27.72
Interface Type: System parallel interface
Viewing Angle: 6. O' clock
Warranty: 12 months
Driving IC: ST7789V
LCD Type: TFT, Transmissive
Technology Type : A-Si TFT active matrix
Pixel Configuration: RGB Vertical Stripe
Backlight Type: LED
Input voltage 2.8V
Operating Temperature: -20 to +70
Storage Temperature: -30 to +80
Color Depth 262K
We, Shenzhen Elida Technology Co., Ltd., are a high-tech company focused on liquid crystal display and electronic touch screens.
With the first-class automatic production line and the specialized management and R&D team, our company is supplying Monochrome graphics and character LCD modules in TN, STN and FSTN technologies and TFT LCD Module products.
Elida technology strives to deliver customized services with best quality, and every product undergoes multiple QC stages to ensure optimum performance and functionality and is CE certified as well as RoHS compliant.
We sincerely welcome your proposal and cooperation! Please feel free to contact us for any of your LCD / LCM projects and requirements.
