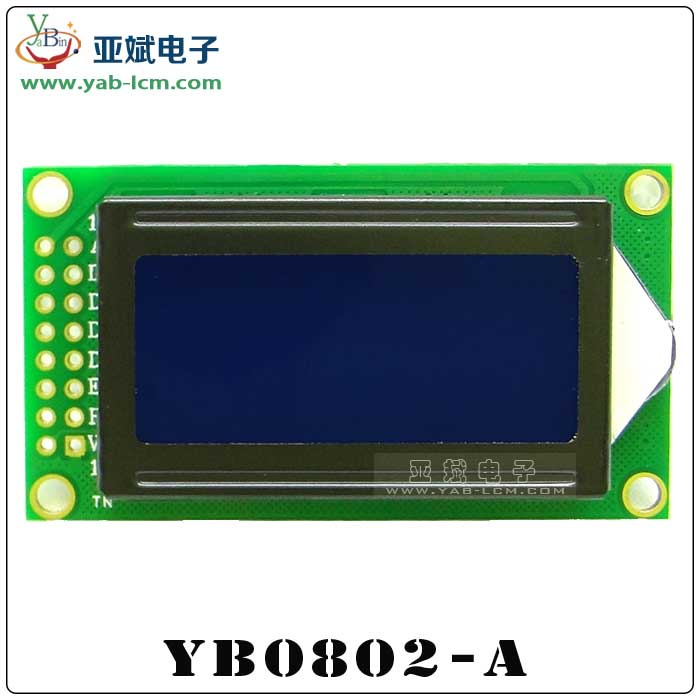

0802 8X2 Character LCD Module Display
| Price: |
US $ 8/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C |
| Prod Model: |
0802A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Character |
| Usage: |
Small-sized LCM |
| Touch Screen Type: |
Resistive |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| Digital LCD Module Type: |
Metering Module |
| Display Technology: |
COB |
| Viewing Angle: |
TN＋FILM |
| Response Time: |
2ms |
| Customized: |
Customized |
Product Description
0802 Character LCD Display 0802B LCM 3.3V/5V yellow green 8x2lcd display module 0802B LCD
Manufacturer
YaBin
Series Number
YB0802-B
Display Format
8x2 Dots
Outline Dimension
58(W)x32(H)x13.2(T)mm
Visual Area
38×16 mm
Active Area
27.45(W)x11.5(H)mm
Character Size
2.45X4.9545mm
Diagonal Size
1.6"
Dot (Pixel) Size
0.45X0.488mm
IC Package
COB
IC or Equivalent
SPLC780C/HS44780/KS0066 or Equivalent
Interface
6800 8-bit/4-bit Parallel
Interface
parallel
Display Type
STN/FSTN
Sunlight Readable
No
Touch Panel Optional
No
Contrast Ratio(Typ)
No
Viewing Direction
6:00
LED Backlight Color
Blue /Yellow Green /Gray
Appearance
White on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)
3.3V/5V
Backlight Current (Typ)
15mA
Operating Temp
-20ºC~70ºC
Storage Temperature
-30ºC~80ºC
If accept customized
Yes
RoHS Compliance
Yes
Shenzhen YABIN Electronics Co., Ltd., set up in the year of 2008, is a high-tech enterprise specialized in producing LCD and LCM. Our company has more than 1000 square kilometer area, advanced LCD production lines, and a professional team with great strength and rich experience. Moreover, our company has passed ISO9001 certification and specialized in producing all kinds of LCD with the thickness of 1.1mm, 0.7mm, 0.55mm and 0.4mm and the models of TN, HTN, STN and FSTN LCM with COB, TAB, COG, TFT and OLED models.
We are famous for our superior quality, competitive prices, first-class craftwork, safe package and prompt delivery. Therefore, we can fully meet your demands. Apart from our own products, we also provide OEM & ODM services.
The products in our company are widely used in electricity, acoustic equipment, communication, industrial equipment, car acoustic and other fields. Over 60% of our products have been sold to Japan, Korea, Hong Kong and Taiwan area. We always insist on the dealing theory of "excellent quality, and superb service", taking innovative technology and science management very seriously, and strengthening quality, technology, environment and management system. We will keep working hard to achieve success with customers.
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
