| Prod Model: |
ZYD |
| Model No.: |
Zyd-50 Transformer Oil Filter |
| 1 St Stage Pump: |
Leybold Vacuum Pump |
| 2ND Stage Pump: |
Booster Roots Pump |
| Oil Pump: |
Viking |
| Dielectric Strength: |
>70kv |
| Ultimate Vacuum: |
5PA |
| Working Vacuum: |
<133PA |
| Working Pressure: |
<0.3MPa |
| Power Supply: |
According to Customers' Power Supply |
| Warranty: |
1 Year Under Normal Operation |
| Voltage: |
Customerized |
| Folw Rate: |
Customerized |
Product Description

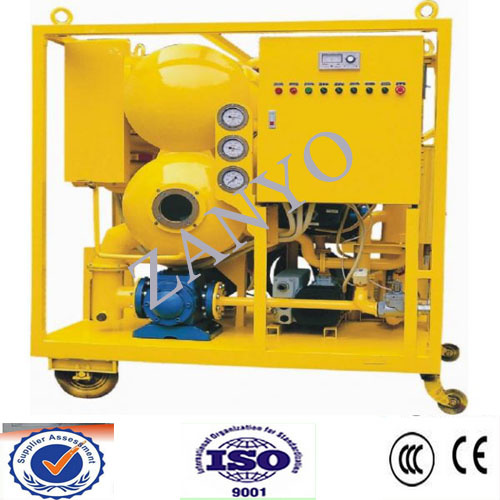

ZANYO Zyd Remove Water and Solid-Liquid Transformer Oil Purifier is used mainly applied in power plant, power station, transformer factory, electric power company, power transformation, metallurgy, petrifaction, machinery, traffic, railway and so on.ZYD High-VAC Insulating Oil Filtration Systemcan remove particles, dewater, degas from the old and new insulating oil. Especially for the 110KV-500KV large-scale transformer station, ZYD oil filtration machine is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil.
| Function: |
| A: removing the moisture. The final treated oil can achieve less than 3ppm |
| B: degassing. The final treated oil can achieve less than 0.1%; |
| C: removing particles. The final treated oil can achieve NAS2 Grade (Cleanliness Grade). |
| D: vacuum oil injecting |
| E: vacuum drying equipment for transformers |
| Feature |
| I. Double stage vacuum: high pumping speed, advanced dehydration and degasification system, Duplex-Stereo film evaporation technology, can remove particles, water, degas and hydrocarbon quickly and effectively, to improve the flash point and dielectric strength. |
| II. Used for transformer installation and inspection, vacuum oil injecting and vacuum drying equipment for transformers. |
| III. Precise oil filtration system, superior oil filter, Multi-stage precision filtration system, can remove mechanical particles effectively. |
| IV. Advanced constant temperature control system, auto evel control system,auto defoaming system, pressure protecting system to make sure the high-performance of the machine |
| V. Vacuum purification online work, unattended operation. |
| VI. Humanization design, low noise, simple operation, long interval of maintenance time and low energy consumption. |
| VII. Be equipped interlocked protecting system, oil discharge system, vacuum system, interlocked heating system, to make sure the machine run smoothly. |
VIII. Adopt short-circuit, Over voltage, Low voltage, Low battery voltage, Surge protection, loss phase protection
|
IX. Optional Parts
PLC control system, dynamic display
Online moisture tester
Frequency changer
Flow meter
Structure:Mobile type, stationary type, trailer, enclosed doors, open type
Three stages vacuum oil purifier, to get higher vacuum degree. It is suitable for more than 500KV power station.
| Index name | ZYD-II | 30 | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Flow rate | L/min | 30 | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Ultimate vacuum | Pa | ≤5 |
| Working vacuum | pa | ≤133 |
| breakdown voltage | kv | 70 |
| Working pressure | Mpa | ≤0.3 |
| Working Temperature | C | 30-80 |
| Power supply | | 380V 50HZ 3Ph (According to customers' power supply) |
| Continuous working time | H | ≥200 |
| Working noise | dB | ≤65 |
| Heating power | KW | 24 | 30 | 48 | 60 | 72 | 90 | 120 | 150 | 180 |
| Total power | KW | 28.5 | 34.5 | 53 | 68 | 80 | 99 | 132 | 165 | 198 |
| Inlet/Outlet | mm | 32 | 32 | 44 | 44 | 48 | 50 | 58 | 58 | 65 |
| Weight | KG | 330 | 420 | 550 | 800 | 950 | 1300 | 1450 | 1700 | 1800 |
| Overall | Length | mm | 1250 | 1F350 | 1550 | 1600 | 1600 | 1900 | 1930 | 2000 | 2010 |
| Width | 900 | 1000 | 1150 | 1160 | 1150 | 1500 | 1550 | 1600 | 1650 |
| Height | 1450 | 1500 | 1700 | 1750 | 1780 | 2200 | 2250 | 2250 | 2300 |
ZANYO Company products list as following:
ZYS-Single Stage Vacuum Insulation Oil Purifier/single stage vacuum oil dewatering°assing system/vacuum filtration system/dehydration/ degasification
ZYD-I-Double-Stage Vacuum Insulation (one horizontal evaporator) /transformer oil purifier, oil treatment, oil purification
ZYD-II-Double-Stage Vacuum Insulation (two horizontal evaporators) /transformer oil purifier, oil treatment, oil purification
ZYL-Vacuum lubricating Oil Purifier
ZYM-Mobile/trailer type transformer oil treatment, oil filtration machine
ZYT -Turbine oil purifier, oil treatment
ZYJ-Coalescence and separating light/fuel/gasoline oil filter, oil purifier machine
ZYJL-Portable Oil Purifying and Oiling Machine
ZYP - Plate pressure turbine/transformer/engine/diesel/hydraulic oil filter, oil purifier machine
ZYR - egeneration Device
ZYMS-ZANYO Oil moisture sensor
ZYC-Waste cooking oil recycling machine
ZYP-Portable turbine/lube/insulating oil purifier, oil filtering, oil filter
ZYAD-Air drying equipment
ZYV-vacuum pump system
